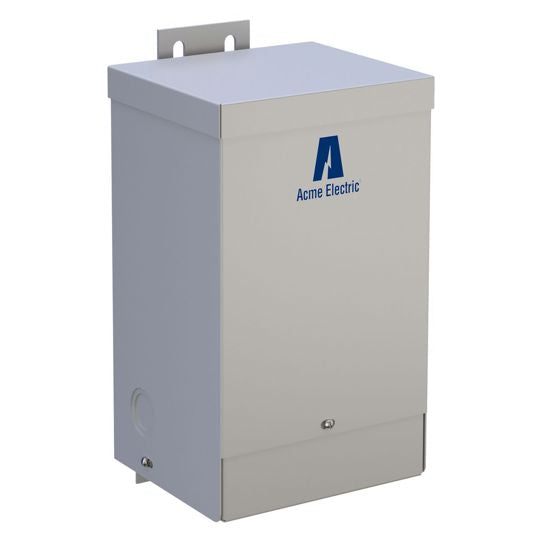

Acme T181065 Buck-Boost Transformer 240 x 480 - 24/48V, 500VA

Product Description

The ACME T181065 buck-boost transformer is a single-phase transformer with a 240 X 480 primary voltage and a 24/48V secondary voltage, rated at 500VA. It is easily configured for numerous applications and provides a lower cost solution with a 5-10 times increase in kVA. Useful for line voltage changes in 5–20% range.

• Easily configured for numerous applications
• Lower cost solution
• 5-10 times increase in kVA

Product Highlights

This buck-boost transformer is ideal for adjusting line voltage and is suitable for various applications.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: T181065
• Country of Origin: MX

Technical Specifications

• Catalog Number: T181065
• Construction: Encapsulated
• kVA: 0.5
• Max Temperature Rise: 115 Degrees Celsius
• Mounting Type: Wall
• Primary Voltage - Winding: 240 X 480
• Product Category: Buck-Boost Transformer
• Secondary Voltage - Winding: 24/48 V
• UL Insulation Class: 180 C
• UPC: 047503087237
• Winding Material: CU
• Frequency Rating: 50/60 Hz
• CSA Standard: C22.2 No 47
• Nema Rating: NEMA 3R
• UL Standard: UL 506
• Manufacturer Part Number: T181065
• Manufacturer: Acme Electric
• Product Series: Buck Boost
• Description: Buck-Boost Transformer - Single Phase, 240 X 480 - 24/48V, 500VA
• Phase: 1
• Type: Autotransformer
• VA Rating: 500 VA
• Primary Voltage: 240 X 480 V AC
• Secondary Voltage: 24/48 V DC
• Enclosed: Yes
• Termination: Wire Leads
• Insulation Class: Class H
• Temperature Rise (F): 239 F
• Approvals: CSA, UL
• Model: T181065
• MPN: T181065
• Connection Type: Wire Lead
• Country of Origin: MX
• Enclosure Type: NEMA 3R/IP54
• Insulation: Class H/180 deg C
• Maximum Amperage Rating: 20.8/10.4 A
• Power Rating: 500 VA
• Temperature Rating: 115 deg C
• Application: Encapsulated
• Special Features: 500 VA
• GTIN: 00047503087237
• Item Type: Isolation transformer
• Length: 7.13
• Width: 10.31
• Height: 11.5
• Brand: ACME ELECTRIC
• Made in USA: No
