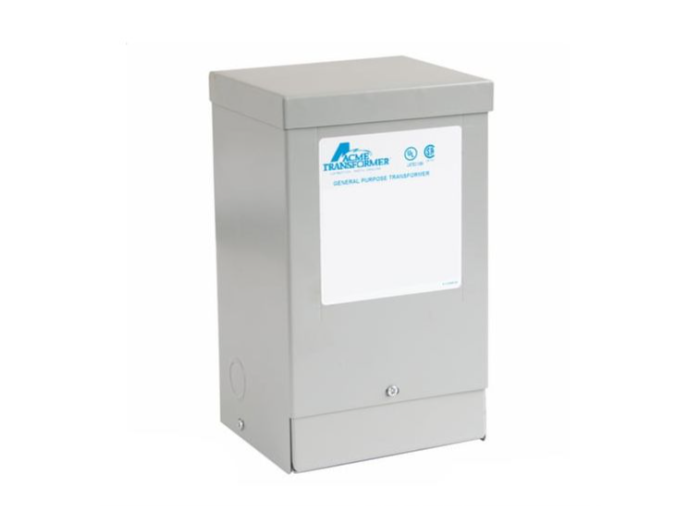

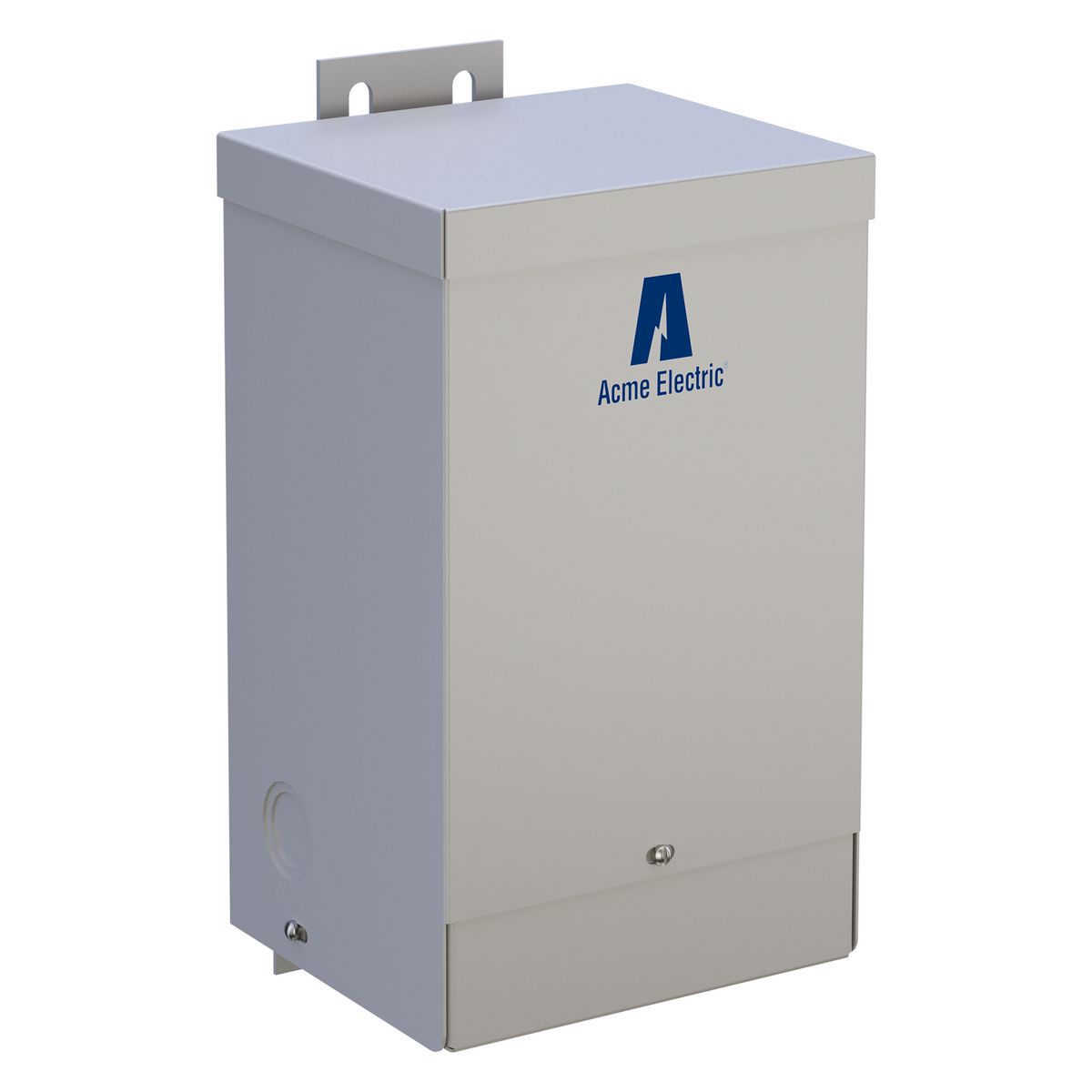

Acme T181064 Buck-Boost Transformer - Single Phase, 240 x 480 - 24/48V, 250VA

Product Description

The ACME T181064 buck-boost transformer is a single-phase transformer with a 240 X 480 primary voltage and a 24/48V secondary voltage, rated at 250VA. It is designed to reduce or raise line voltage from 5 to 20%. The encapsulated core and coil contribute to its durability. It is suitable for various applications requiring voltage adjustments.

• Easily configured for numerous applications
• Lower cost solution
• 5-10 times increase in kVA

Product Highlights

This buck-boost transformer is an economical solution for correcting voltage issues, ensuring optimal performance of electrical equipment.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: T181064
• Country of Origin: MX

Technical Specifications

• Catalog Number: T181064
• Construction: Encapsulated
• kVA: 0.25
• Material Type: ZFIN
• Max Temperature Rise: 115 Degrees Celsius
• Mounting Type: Wall
• Primary Voltage - Winding: 240 X 480
• Product Category: Buck-Boost Transformer
• Secondary Voltage - Winding: 24/48 V
• UL Insulation Class: 180 C
• UPC: 047503085516
• Winding Material: CU
• Frequency Rating: 50/60 Hz
• Primary Voltage: 240/480 VAC
• CSA Standard: C22.2 No 47
• Nema Rating: NEMA 3R
• UL Standard: UL 506
• Application: Encapsulated
• Connection Type: Wire Lead
• Country of Origin: MX
• Enclosure Type: NEMA 3R/IP54
• Harmonization Tariff Schedule Code: 8504314065
• Insulation: Class H/180 deg C
• Maximum Amperage Rating: 10.4/5.2 A
• Mounting: Wall
• Number Of Phases: 1
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506File No. E79947V150B8B3223CSA CertifiedOSHA ApprovedANSI SpecifiedIEEE Certified
• Temperature Rating: 115 C
• Type: Isolation
• UNSPSC: 39121025
• UPC 11: 04750308551
• UPC 12: 047503085516
• Brand: Acme Electric
• Manufacturer: Acme Electric
• Phase: 1
• Power Rating: 0.25 kVA
• Secondary Voltage: 24/48 VAC
• VA Rating: 250 VA
• Enclosed: Yes
• Termination: Wire Leads
• Insulation Class: Class H
• Temperature Rise (F): 239 F
• Approvals: CSA, UL
• Frequency: 60 Hz
• Secondary Current: 10.4/5.2 A
• Primary Type: Industrial Transformer
