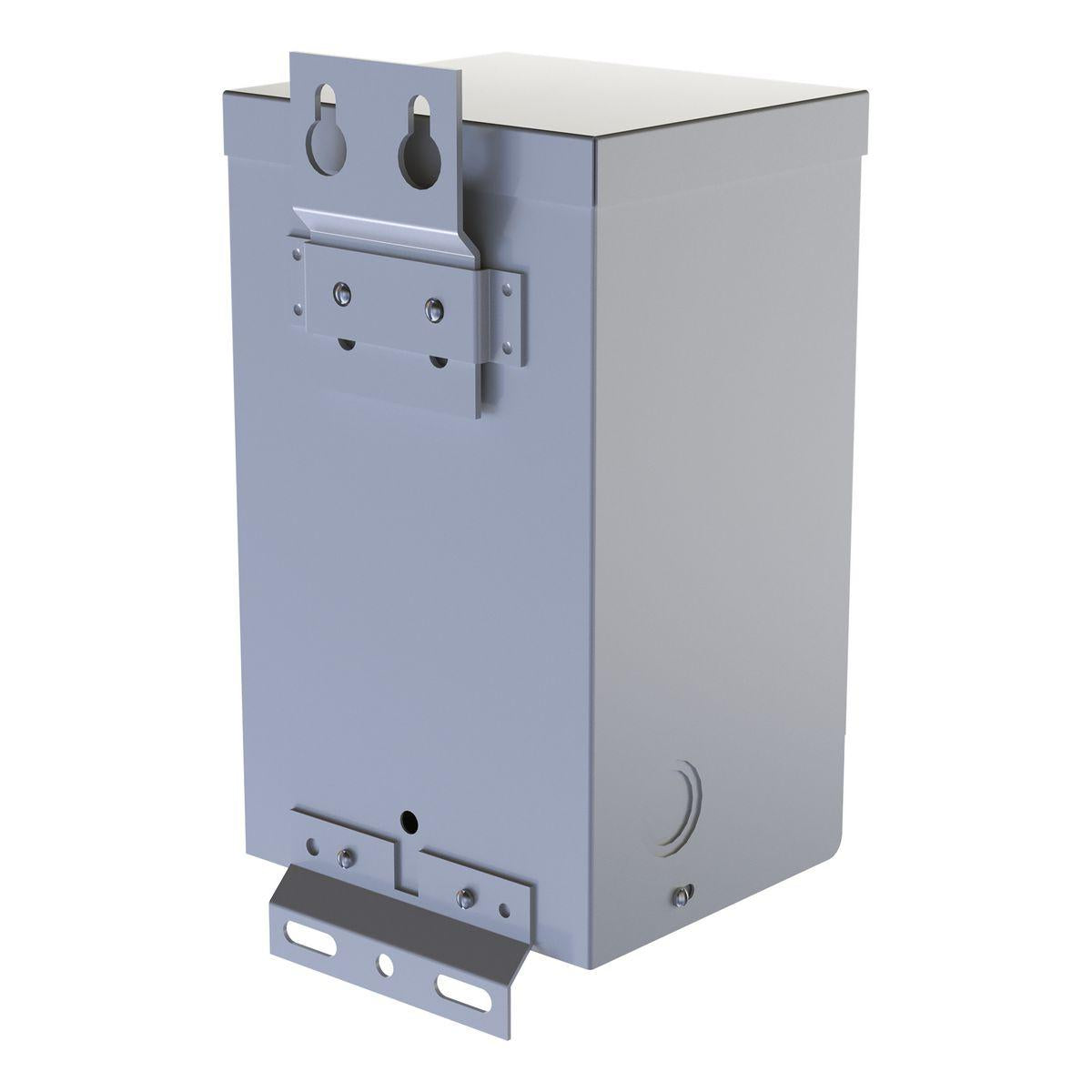

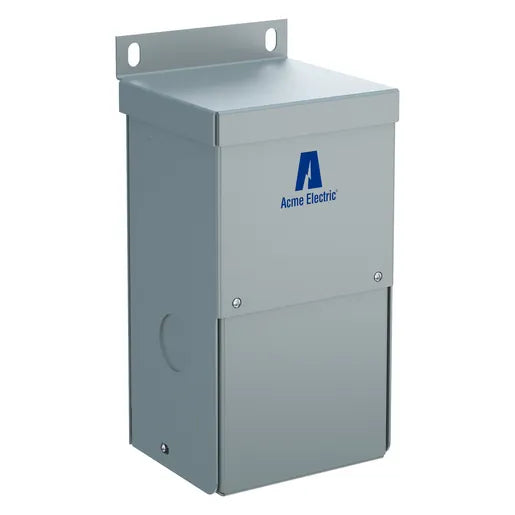

Acme T181063 Buck-Boost Transformer 150VA

Product Description

The ACME T181063 is a single-phase buck-boost transformer with a 150VA capacity, suitable for various applications. It features an encapsulated design and is built to NEMA 3R standards. This transformer is designed for low voltage lighting or control circuitry applications. It is easily configured and provides a cost-effective solution with a 5-10 times increase in kVA.

• Easily configured for numerous applications
• Lower cost solution
• 5-10 times increase in kVA

Product Highlights

Single-phase buck-boost transformer, 150VA, encapsulated, NEMA 3R rated, suitable for lighting and control circuits.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: T181063
• Country of Origin: MX

Technical Specifications

• Catalog Number: T181063
• Construction: Encapsulated
• kVA: 0.15
• Max Temperature Rise: 115 Degrees Celsius
• Mounting Type: Wall
• Primary Voltage: 240 X 480 V
• Secondary Voltage: 24/48 V
• UL Insulation Class: 180 C
• Winding Material: CU
• Frequency Rating: 50/60 Hz
• CSA Standard: C22.2 No 47
• Nema Rating: NEMA 3R
• UL Standard: UL 506
• Enclosure Type: NEMA 3R/IP54
• Insulation: Class H/180 deg C
• Maximum Amperage Rating: 6.24/3.12 A
• Phase: 1
• Temperature Rating (Degrees F): 115 deg C
• Type: Encapsulated Isolation
• Connection type: Wire Lead
• Number of Phases: 1 Phase
• Rating: NEMA 3R
• Standard: C22.2 No 47,UL 506
