Acme T181062 Buck-Boost Transformer 100VA

Product Description

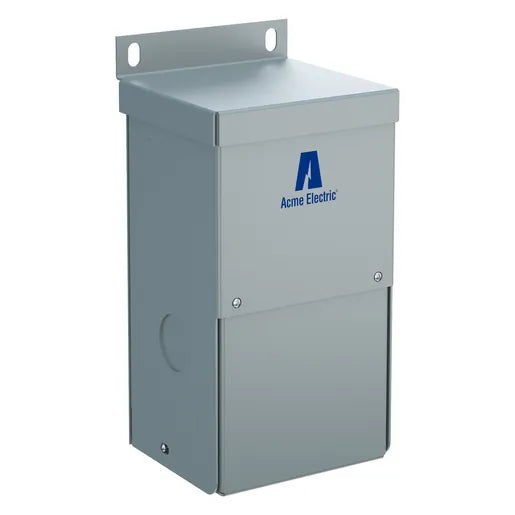

The ACME T181062 buck-boost transformer is a single-phase transformer with a primary voltage of 240 X 480 and a secondary voltage of 24/48V, rated at 100VA. It is easily configured for numerous applications and provides a lower cost solution with a 5-10 times increase in kVA. This transformer is encapsulated and designed for wall mounting.

• Easily configured for numerous applications
• Lower cost solution
• 5-10 times increase in kVA

Product Highlights

This buck-boost transformer is ideal for reducing or raising line voltage from 5-20%.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: T181062
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: T181062
• Construction: Encapsulated
• kVA: 0.1
• Max Temperature Rise: 115 Degrees Celsius

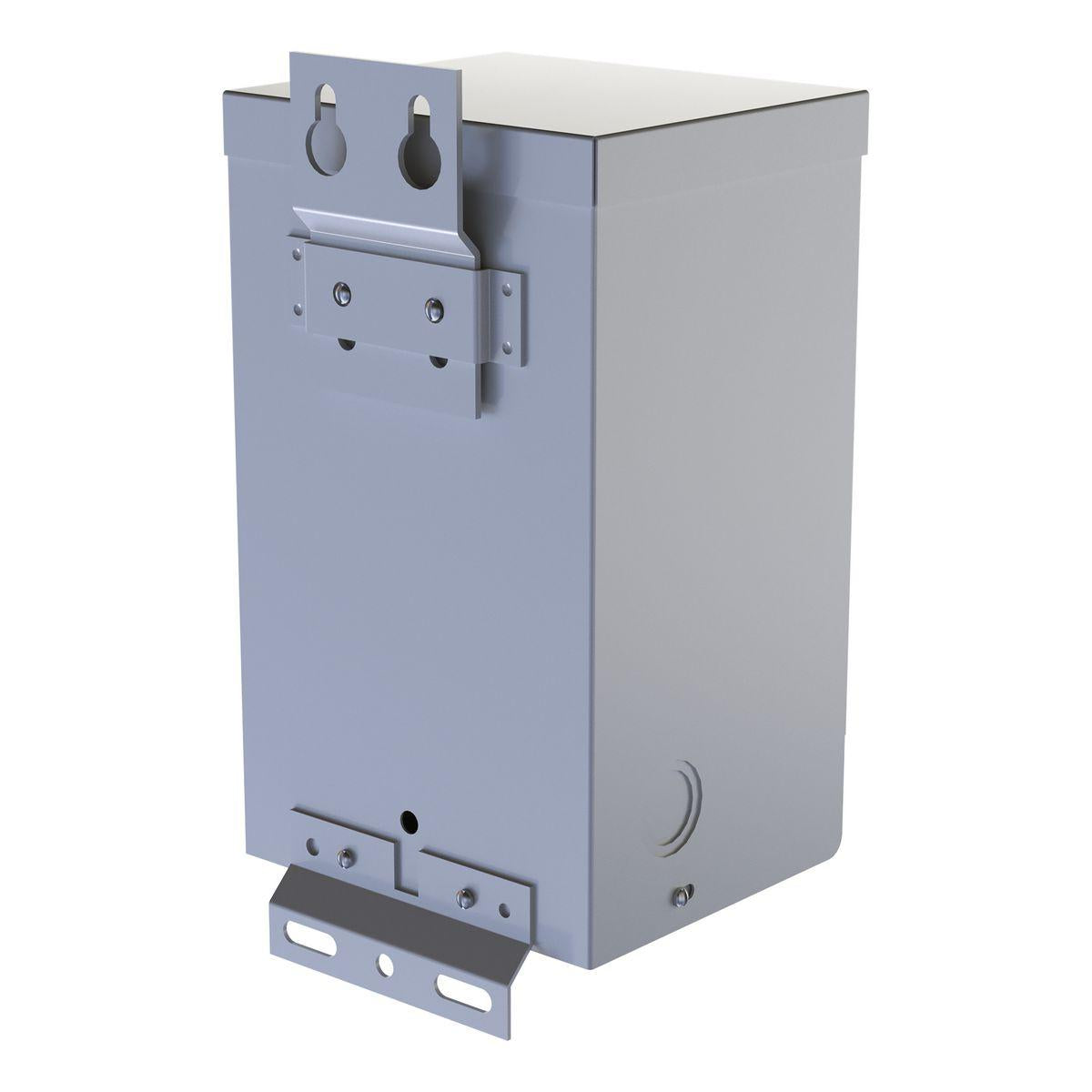

• Mounting Type: Wall
• Primary Voltage - Winding: 240 X 480
• Product Category: Buck-Boost Transformer
• Secondary Voltage - Winding: 24/48 V
• UL Insulation Class: 180 C
• UPC: 047503183489
• Winding Material: CU
• Frequency Rating: 50/60 Hz
• Primary Voltage: 240 X 480 V
• CSA Standard: C22.2 No 47
• Nema Rating: NEMA 3R
• UL Standard: UL 506
• Enclosure Type: NEMA 3R/IP54
• Insulation: Class H/180 deg C
• Maximum Amperage Rating: 4.16/2.08 A
• Type: Encapsulated Isolation
• UNSPSC: 39121025
• Phase: 1
• Volt Amps: 100
• Frequency: 60 Hz
• Power Rating: 100 VA
• Secondary Current: 4.16/2.08 A
