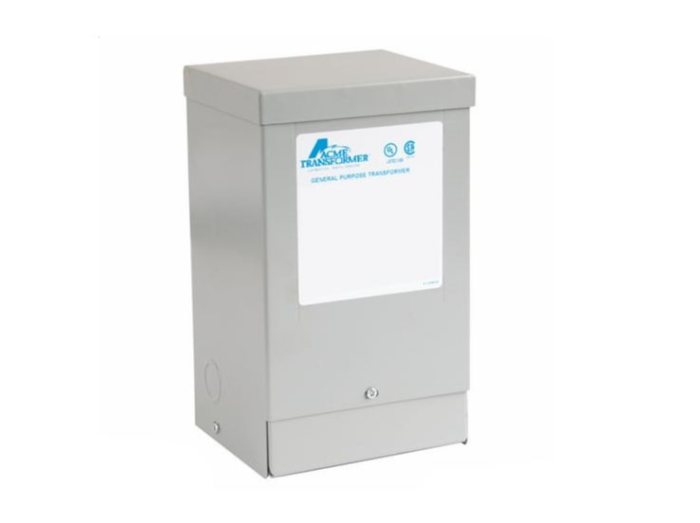

Acme T181055 Buck-Boost Transformer Single Phase 120 x 240 - 16/32V 100VA

Product Description

The ACME T181055 Buck-Boost Transformer is a single-phase transformer designed to reduce or raise line voltage from 5-20%. It is easily configured for numerous applications and offers a lower-cost solution with a 5-10 times increase in kVA. Common applications include boosting 208 volts to 230 volts to operate 230-volt motors.

• Easily configured for numerous applications
• Lower cost solution
• 5-10 times increase in kVA

Product Highlights

Economical solution for correcting voltage issues, ideal for applications requiring voltage adjustments in the 5-20% range.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: T181055
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: T181055
• Construction: Encapsulated
• kVA: 0.1
• Material Type: ZFIN
• Max Temperature Rise: 115 Degrees Celsius
• Mounting Type: Wall
• Primary Voltage: 120 X 240 V
• Secondary Voltage: 16/32 V
• UL Insulation Class: 180 C
• UPC: 047503086834
• Winding Material: CU
• Frequency Rating: 50/60 Hz
• CSA Standard: C22.2 No 47
• Nema Rating: NEMA 3R
• Brand: Acme Electric Corporation
• Phase: 1 Phase
• Power Rating: 100 VA
• Primary Type: Industrial Transformer
• Secondary Current: 6.25/3.12 A
• Type: Isolation
• UPC Code: 47503086834
• Enclosure Finish: Powder Coated
• IP Rating: IP54
• Includes Knockouts: Knockouts Included
• Input Voltage: 120 x 240V AC
• Insulation Temperature Rating: 356 F
• Knockout Size: 1/2 in
• Mounting Location: Wall
• NEMA Enclosure Rating: 3R
• Output Voltage: 16/32V AC
• Overall Depth: 3.67 in
• Overall Height: 7.16 in
• Overall Width: 3.89 in
• Standards: CSA Certified C22.2 No. 47; UL 506
• Temperature Rise: 239 F
• UNSPSC: 39121001
• Manufacturer: Acme Electric
• Product Series: Buck Boost
• Family Series: Acme Electric Transformers, Buck Boost Series
• Description: Buck-Boost Transformer - Single Phase, 120 X 240 - 16/32V, 100VA
• Enclosed: Yes
• Mounting: Wall
• Termination: Wire Leads
• Insulation Class: Class H
• Temperature Rise (F): 176 F
• Approvals: CSA, UL
• Electrical Category: Electrical Distribution Equipment
• Electrical Subcategory: Power Conditioning Equipment
• Application: Encapsulated
• Brand Name: Acme Electric
• Country Of Origin: MX
• Number Of Phases: 1 phase
• Special Features: 100
• Isolation transformer: Isolation transformer
• Maximum Amperage Rating: 6.25/3.12 A
• Temperature Rating: 115 deg C
• Connection Type: Wire Lead
• Enclosure Type: NEMA 3R/IP54
• Dimensions: 3.67 in L x 3.89 in W x 7.16 in H
