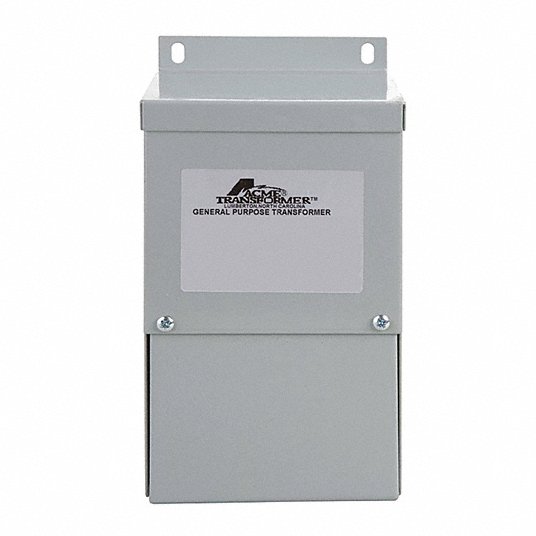

Acme T181054 Buck-Boost Transformer - Single Phase, 120 x 240 - 16/32V, 50VA

Product Description

The ACME T181054 buck-boost transformer is a single-phase transformer designed for reducing or raising line voltage from 5-20%. It is commonly used to boost 208 volts to 230 volts. It has primary voltage of 120 X 240 V and secondary voltage of 16/32 V with 50VA.

• Easily configured for numerous applications
• Lower cost solution
• 5-10 times increase in kVA

Product Highlights

Correct voltage variations with the ACME buck-boost transformer, an economical solution for voltage correction.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: T181054
• Country of Origin: United States

Technical Specifications

• Catalog Number: T181054
• Construction: Encapsulated
• kVA: 0.05
• Material Type: ZFIN
• Max Temperature Rise: 115 Degrees Celsius
• Mounting Type: Wall
• Primary Voltage - Winding: 120 X 240 V
• Product Category: Buck-Boost Transformer
• Secondary Voltage - Winding: 16/32 V
• UL Insulation Class: 180 C
• UPC: 047503088210
• Winding Material: CU
• Frequency Rating: 50/60 Hz
• Primary Voltage: 120 X 240 V
• CSA Standard: C22.2 No 47
• Nema Rating: NEMA 3R
• UL Standard: UL 506
• Maximum Amperage Rating: 3.12/1.56 A
• UNSPSC: 39121025
• Brand: ACME ELECTRIC
• Type: Buck Boost Transformers
• MPN: T181054
• Country of Origin: United States
• Configuration: Enclosed
• Frequency: 60 Hz
• Phase: 1 Phase
• Power Rating: 50 VA
• Primary Type: Industrial Transformer
• Secondary Current: 3.12/1.56 A
• Secondary Voltage: 16/32 VAC
• UPC Code: 47503088210
• Enclosure Finish: Powder Coated
• IP Rating: IP54
• Includes Knockouts: Knockouts Included
• Input Voltage: 120 x 240V AC
• Insulation Temperature Rating: 356 F
• Knockout Size: 1/2 in
• Mounting Location: Wall
• NEMA Enclosure Rating: 3R
• Output Voltage: 16/32V AC
• Overall Depth: 3.05 in
• Overall Height: 6.41 in
• Overall Width: 3.14 in
• Standards: CSA Certified C22.2 No. 47; UL 506
• Temperature Rise: 239 F
