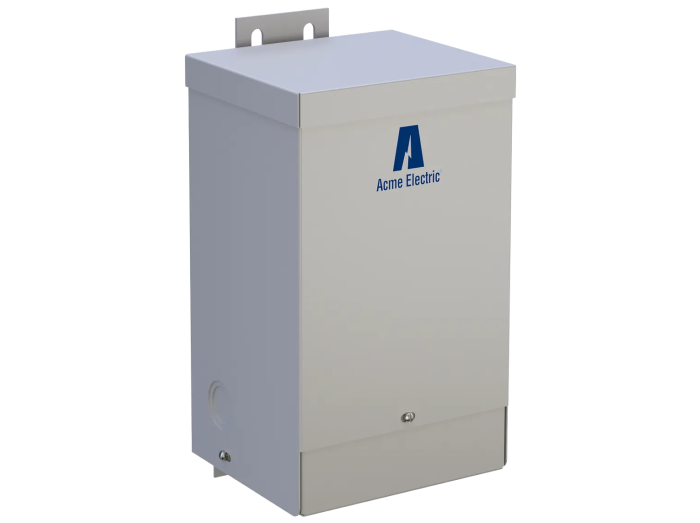

Acme T181050 Transformer, 250VA, 1P, 120x240V, 12/24, Buck-Boost

Product Description

The ACME T181050 is a 250VA, single-phase buck-boost transformer with primary voltage of 120x240V and secondary voltage of 12/24V. This encapsulated transformer is suitable for indoor and outdoor applications with a frequency of 50/60Hz. It is designed to efficiently increase or decrease voltage between 5% and 20%.

• 250 VA, 1-Phase
• 120 x 240 Primary Volts, 12/24 Secondary Volts
• Encapsulated for Indoor/Outdoor Use

Product Highlights

The ACME T181050 buck-boost transformer is easily configured for numerous applications, providing a lower cost solution with a 5-10 times increase in kVA.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: T181050
• Country of Origin: Mexico

Technical Specifications

• VA: 250
• Phase: 1
• Primary Voltage: 120 x 240 V AC
• Secondary Voltage: 12/24 V AC
• Frequency: 50/60 Hz
• Type: Transformer, Buck - Boost, Autotransformer
• Application: Indoor/Outdoor
• Temperature Rating: 115 deg C Rise
• Terminal Connection: Wire
• Power Rating: 0.25 KVA
• Cooling: Air/Dry
• Mounting: Wall
• NEMA Rating: NEMA 3R
• Standards: UL 506 Listed, cUL Listed, CSA C22.2 No.47, LR7357-32 Certified, NEMA ST-20
• Winding Material: Copper
• Insulation: Class H/180 deg C
• Maximum Amperage Rating: 20.80 A at 12 V/10.40 A at 24 V Output
• Enclosure Type: NEMA 3R
• Termination: Wire Leads
• Input Voltage: 120 x 240V AC
• Output Voltage: 12/24V AC
• IP Rating: IP54
