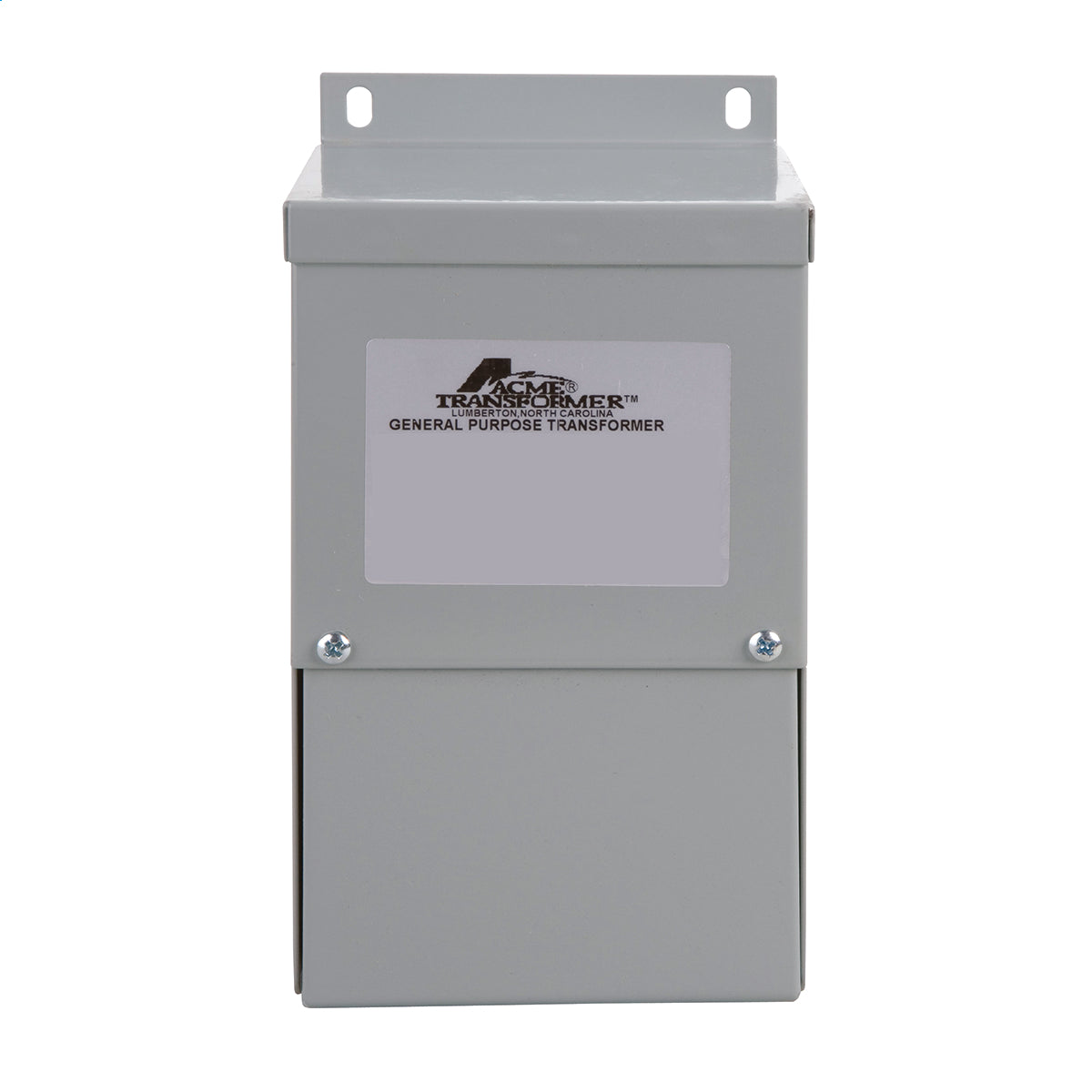

Acme T181048 Buck-Boost Transformer - Single Phase, 120 x 240 - 12/24V, 100VA

Product Description

The ACME T181048 is a single-phase buck-boost transformer with a 120 X 240 primary voltage and a 12/24V secondary voltage, rated at 100VA. It is designed for easy configuration in various applications. It is a lower-cost solution that can provide a 5-10 times increase in kVA.

• Easily configured for numerous applications
• Lower cost solution
• 5-10 times increase in kVA

Product Highlights

This buck-boost transformer is ideal for correcting voltage variations and is an economical solution for ensuring proper voltage levels for sensitive equipment.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: T181048
• Country of Origin: CN

Technical Specifications

• Catalog Number: T181048
• Construction: Encapsulated
• kVA: 0.1
• Max Temperature Rise: 115 Degrees Celsius
• Mounting Type: Wall
• Primary Voltage: 120 X 240 V
• Product Category: Buck-Boost Transformer
• Secondary Voltage: 12 V
• UL Insulation Class: 180 C
• Winding Material: CU
• Frequency Rating: 50/60 Hz
• CSA Standard: C22.2 No 47
• Nema Rating: NEMA 3R
• UL Standard: UL 506
• Maximum Amperage Rating: 8.32 A at 12 V/4.16 A at 24 V Output
• Phase: 1
• Power Rating: 0.1 kVA
• Temperature Rating: 115 deg C
• Type: Isolation
• Application: For low voltage lighting or control circuitry applications
• Connection Type: Lead Wire
• Enclosure Type: NEMA 3R
• Insulation: Class B/180 deg C
• Boost Voltage: 1.01 KVA/4.17 AMP: 220 V Line And 242 V Load
• Number Of Phases: 1
• Brand: Acme Electric
• Max Output Current: 8.32@12V/4.16@24V A
• Enclosure: NEMA 3R Steel
• Frequency: 50 Hz
• Insulation Material: 130 DEG C Class B
• Max Temperature: 115 degrees C
• Rating: NEMA 3R
• Standard: C22.2 No 47,UL 506
• TC Connection: Wire Lead Screw Terminal
• Sub Brand: Acme
