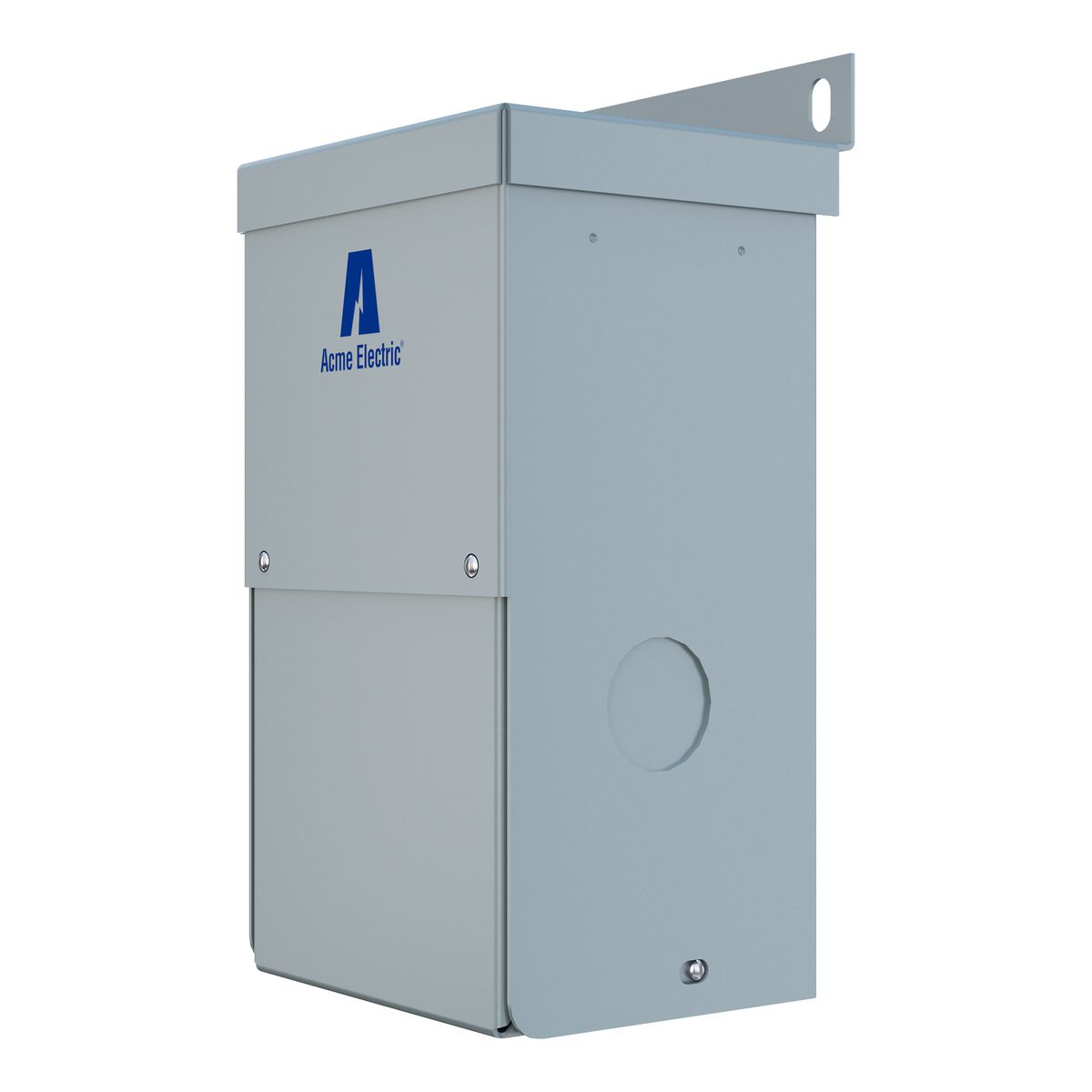

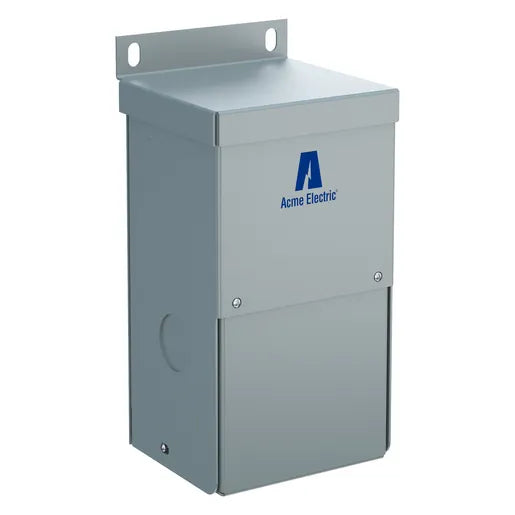

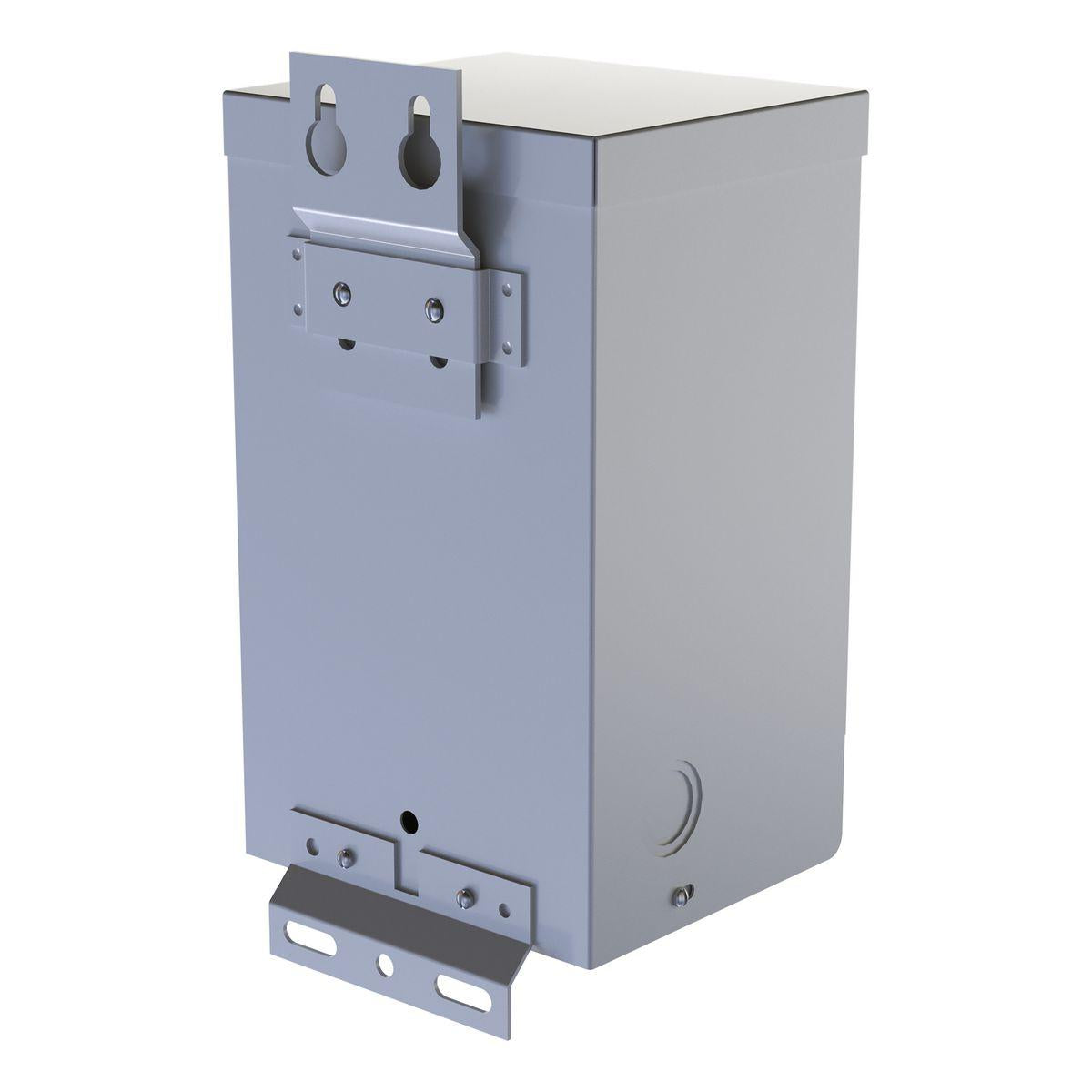

Acme T153005 Low Voltage Distribution Transformer - Single Phase, 240X480 - 120/240V, 0.1kVA

Brand: ACME
SKU: T153005
Availability: In Stock

Ships same day if ordered by 12 pm
$174.90
$174.90
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Acme T153005 low voltage distribution transformer is a single-phase transformer with 240X480 - 120/240V and 0.1kVA. It features quiet operation with sound levels below NEMA standards and an electrostatic shield for enhanced protection. Designed for industrial and commercial applications, it is rated for 600 volts and below.

  • Quiet operation with sound levels below NEMA standards
  • Electrostatic shield for enhanced protection
  • Encapsulated core and coil

Product Highlights

This transformer is designed for industrial and commercial applications, featuring quiet operation and enhanced protection.

Product Information

Standard Information

  • Brand: ACME
  • Manufacturer Part Number: T153005
  • Country of Origin: CN
Technical Specifications
Catalog Number
T153005
Construction
Encapsulated
kVA
0.1
Max Temperature Rise
115 Degrees Celsius
Mounting Type
Wall
Primary Voltage
240/480 VAC
Secondary Voltage
120/240 VAC
UL Insulation Class
130 C
UPC
047503085349
Winding Material
CU
Frequency Rating
50/60 Hz
CSA Standard
C22.2 No. 47
Nema Rating
NEMA 3R
UL Standard
UL 506
Enclosure Type
NEMA 3R
Insulation
Class B/130 deg C
Maximum Amperage Rating
0.6/1.2/2.4 A
Phase
1 Phase
Temperature Rating (Degrees F)
115 deg C
Type
Dry Type Distribution Transformer
Connection type
Wire Lead
Housing material
ZFIN
Manufacturer Name
Hubbell
UNSPSC
39121001
Connection Type
Wire Lead Screw Terminal
Enclosure
NEMA 3R Steel
Insulation Material
130 DEG C Class B
Max Temperature
115 degrees C
Number of Phases
1 Phase
Rating
NEMA 3R
Standard
UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number B3223, CSA Certified, OSHA Compliant, ANSI, IEEE
Temperature Rating
115 100% Brand of the United. The transformer is a product of Acme Electric. The product is in the International Series
Brand
Acme Electric
Power Rating
0.1 kVA
Dimensions
3.89 in L x 3.67 in W x 7.16 in H
Height
7.16 in
Length
3.67 in
Width
3.89 in
Winding
Aluminum, Configuration: Primary - Two Winding, Secondary - Two Winding
Model
T-1-53005
Number in Pack
1
Country of Origin
United States
Category
Business & Industrial
Series
International Series
