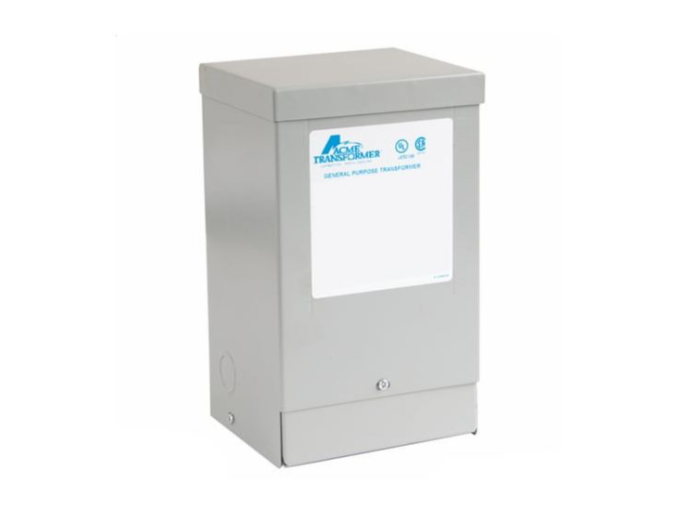

Acme T137922 Buck-Boost Transformer - Single Phase, 240 x 480 - 24/48V, 2kVA

Brand: ACME
SKU: T137922
Availability: In Stock

Ships same day if ordered by 12 pm
$985.55
$985.55
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The ACME T137922 buck-boost transformer is a single-phase transformer designed to reduce or raise line voltage from 5-20%. It is easily configured for numerous applications and provides a lower-cost solution with a 5-10 times increase in kVA. The encapsulated design protects from environmental factors.

  • Easily configured for numerous applications
  • Lower cost solution
  • 5-10 times increase in kVA

Product Highlights

This buck-boost transformer efficiently adjusts voltage and is suitable for various applications requiring voltage regulation.

Product Information

Standard Information

  • Brand: ACME
  • Manufacturer Part Number: T137922
  • Country of Origin: Mexico
Technical Specifications
Catalog Number
T137922
Construction
Encapsulated
kVA
2
Max Temperature Rise
115 Degrees Celsius
Mounting Type
Wall
Primary Voltage - Winding
240 X 480
Product Category
Buck-Boost Transformer
Secondary Voltage - Winding
24/48 V
UL Insulation Class
180 C
Winding Material
CU
Frequency Rating
60 Hz
Primary Voltage
240 X 480 V
CSA Standard
C22.2 No 47
Nema Rating
NEMA 3R
UL Standard
UL 506
Height
3.89 in
Length
3.67 in
Width
7.16 in
Secondary Voltage
24/48 VDC
Insulation
Class H/180 deg C
Maximum Amperage Rating
83.2/41.6 A
Temperature Rating
115 deg C
Type
Isolation Encapsulated
Phase
1 ph
Power Rating
2 kVA
Enclosure Type
NEMA 3R/IP54
Connection Type
Wire Lead
Dimensions
3.67 in L x 3.89 in W x 7.16 in H
Manufacturer
Acme Electric
Product Series
Buck Boost
Family Series
Acme Electric Transformers, Buck Boost Series
Description
Buck-Boost Transformer - Single Phase, 240 X 480 - 24/48V, 2kVA
VA Rating
2,000 VA
Enclosed
Yes
Termination
Wire Leads
Insulation Class
Class H
Temperature Rise (F)
239 F
Approvals
CSA, UL
Net Weight
38 lbs
IP Rating
IP54
Includes Knockouts
Knockouts Included
Input Voltage
240 x 480V AC
Insulation Temperature Rating
356 F
Knockout Size
1/2 in; 3/4 in
Mounting Location
Wall
NEMA Enclosure Rating
3R
Output Voltage
24/48V AC
Overall Depth
3.67 in
Overall Height
7.16 in
Overall Width
3.89 in
Standards
CSA Certified C22.2 No. 47; UL 506
Temperature Rise
239 F
UNSPSC
39121001
