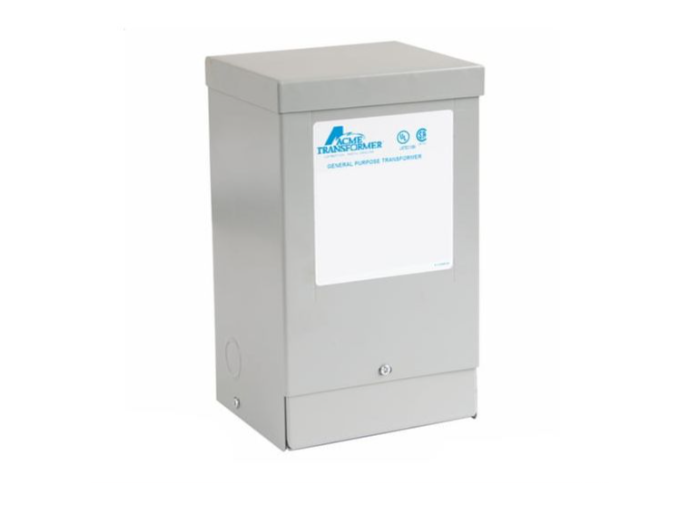

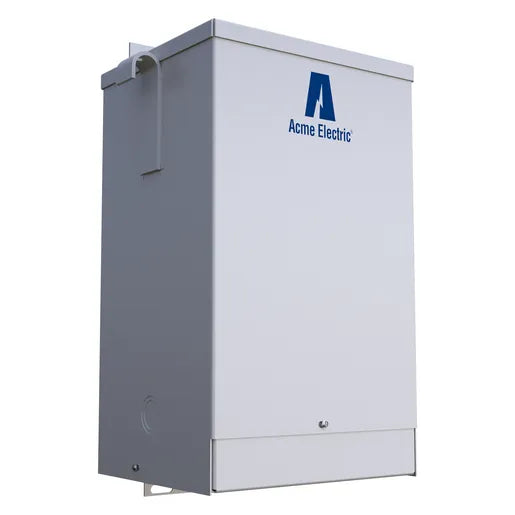

Acme T113077 Buck-Boost Transformer - Single Phase, 120 x 240 - 16/32V, 5kVA

Product Description

The ACME T113077 buck-boost transformer is a single-phase transformer with a 5kVA rating and primary voltage of 120 X 240 V, and secondary voltage of 16/32V. It is easily configured for numerous applications and provides a lower cost solution with a 5-10 times increase in kVA. Useful for line voltage changes in 5–20% range.

• Easily configured for numerous applications
• Lower cost solution
• 5-10 times increase in kVA

Product Highlights

Compact and efficient, this transformer can reduce or increase line voltage efficiently and is UL listed and CSA certified.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: T113077

Technical Specifications

• Catalog Number: T113077
• Construction: Encapsulated
• kVA: 5
• Material Type: ZFIN
• Max Temperature Rise: 115 Degrees Celsius
• Mounting Type: Wall
• Primary Voltage - Winding: 120 X 240 V
• Product Category: Buck-Boost Transformer
• Secondary Voltage - Winding: 16/32 V
• UL Insulation Class: 180 C
• UPC: 047503085721
• Winding Material: CU
• Frequency Rating: 60 Hz
• Primary Voltage: 120 X 240 V
• CSA Standard: C22.2 No 47
• Nema Rating: NEMA 3R
• UL Standard: UL 506
• Manufacturer Part Number: T113077
• Manufacturer: Acme Electric
• Product Series: Buck Boost
• Family Series: Acme Electric Transformers, Buck Boost Series
• Description: Buck-Boost Transformer - Single Phase, 120 X 240 - 16/32V, 5kVA
• Phase: 1
• Type: Autotransformer
• VA Rating: 5,000 VA
• Secondary Voltage: 16 V, 32 V
• Enclosed: Yes
• Mounting: Wall
• Termination: Wire Leads
• Insulation Class: Class H
• Temperature Rise (F): 239 F
• Approvals: CSA, UL
