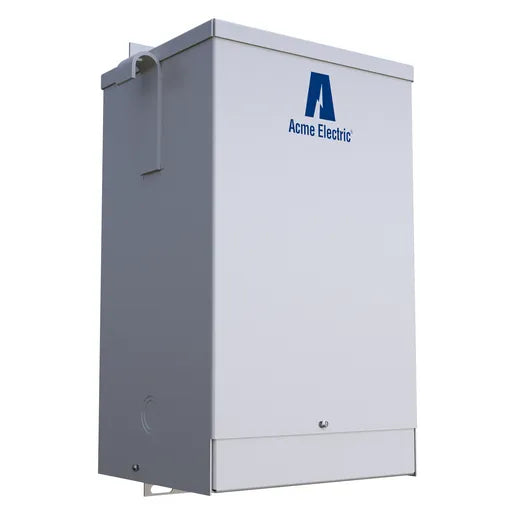

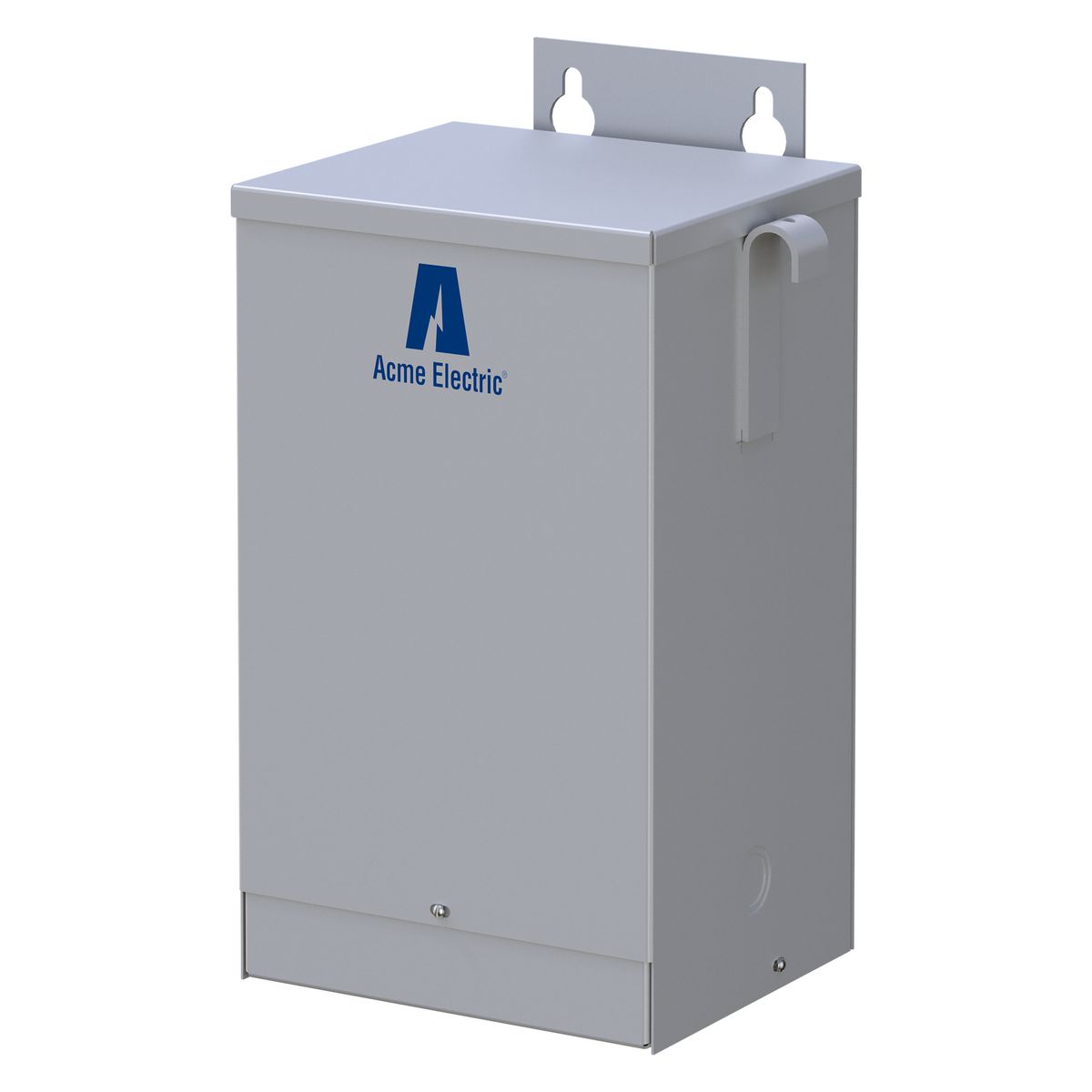

Acme T113076 Buck-Boost Transformer - Single Phase, 120 X 240 - 16/32V, 3kVA

Product Description

The ACME T113076 is a single-phase buck-boost transformer designed to reduce or raise line voltage from 5 to 20 percent. It is configured for numerous applications and provides a lower-cost solution with a 5-10 times increase in kVA. The transformer features an encapsulated core and coil.

• Easily configured for numerous applications
• Lower cost solution
• 5-10 times increase in kVA

Product Highlights

Correct off-standard voltage with this economical and versatile buck-boost transformer.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: T113076
• Country of Origin: MX

Technical Specifications

• Catalog Number: T113076
• Construction: Encapsulated
• kVA: 3
• Max Temperature Rise: 115 Degrees Celsius
• Mounting Type: Wall
• Primary Voltage: 120 X 240 V
• Secondary Voltage: 16/32 V
• UL Insulation Class: 180 C
• UPC: 047503087336
• Winding Material: CU
• Frequency Rating: 60 Hz
• CSA Standard: C22.2 No 47
• Nema Rating: NEMA 3R
• UL Standard: UL 506
• Connection Type: Wire Lead Screw
• Country of Origin: MX
• Enclosure Type: NEMA 3R/IP54
• Insulation: Class H/180 deg C
• Maximum Amperage Rating: 187.5/93.8 A
• Number Of Phases: 1
• Standards: ARRA, Buy American Act and RoHS Compliant, UL 506, File No. E79947V1, C22.2 No. 47, LR7357-32
• Temperature Rating: 115 C
• Type: Isolation
• UNSPSC: 39121025
• Brand: Acme Electric
• Manufacturer: Acme Electric
• Phase: 1
• Power Rating: 3 kVA
• Model: T113076
• MPN: T113076
