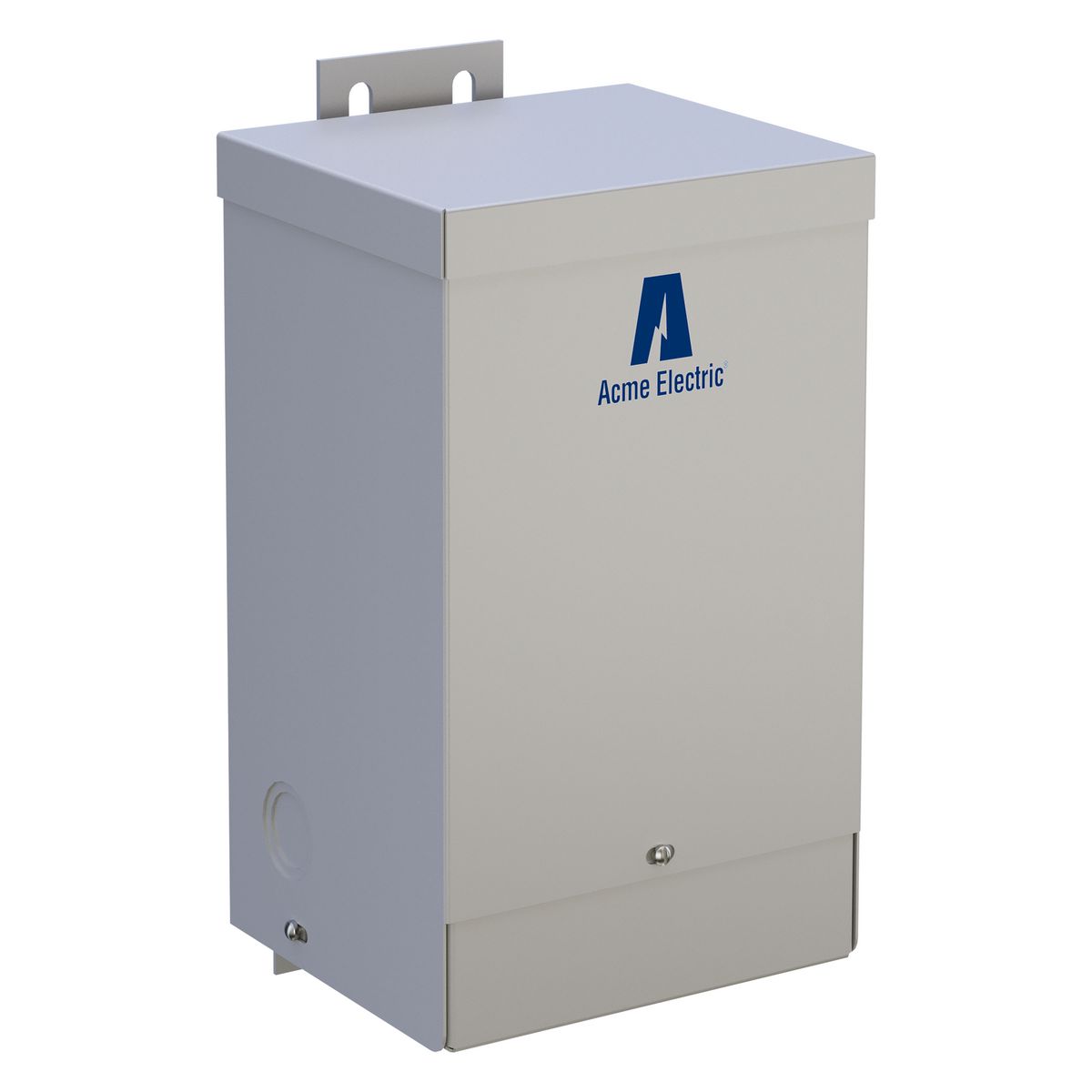

Acme T113075 Buck-Boost Transformer Single Phase, 120 x 240 - 16/32V, 2kVA

Product Description

The ACME T113075 is a single-phase buck-boost transformer with primary voltage 120 X 240 V and secondary voltage 16/32 V, rated at 2kVA. It is designed for various applications and provides a cost-effective solution with a 5-10 times increase in kVA. The transformer features an encapsulated core and coil and is suitable for low voltage lighting or control circuitry.

• Easily configured for numerous applications
• Lower cost solution
• 5-10 times increase in kVA

Product Highlights

Encapsulated core and coil. Designed to reduce (buck) or raise (boost) line voltage from 5 to 20 PCT.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: T113075
• Country of Origin: MX

Technical Specifications

• Catalog Number: T113075
• Construction: Encapsulated
• kVA: 2
• Material Type: ZFIN
• Max Temperature Rise: 115 Degrees Celsius
• Mounting Type: Wall
• Primary Voltage - Winding: 120 X 240 V
• Product Category: Buck-Boost Transformer
• Secondary Voltage - Winding: 16/32 V
• UL Insulation Class: 180 C
• UPC: 047503086247
• Winding Material: CU
• Frequency Rating: 60 Hz
• Primary Voltage: 120 X 240 V
• CSA Standard: C22.2 No 47
• Nema Rating: NEMA 3R
• UL Standard: UL 506
• Application: For Low Voltage Lighting Or Control Circuitry
• Connection: Wire Lead Screw Terminal
• Connection Type: Wire Lead
• Country of Origin: MX
• Enclosure: NEMA 3R Steel
• Enclosure Type: NEMA 3R
• Housing Material: Steel
• Insulation: Class H/180 deg C
• Insulation Class: 180 DEG C Class H
• Maximum Amperage Rating: 125/62.5 A
• Maximum Output Current: 125@16V/62.5@32V A
• Mounting: Wall
• Number Of Phases: 1
• Standard: UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number X3221, CSA Certified, OSHA Compliant, ANSI, IEEE
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506UL File No. E79947V1UL Control File No. 50B8UL Insulation File No. X3221CSA CertifiedOSHA ApprovedANSI SpecifiedIEEE Certified
• Temperature Rating: 115 C
• Type: Encapsulated
• UNSPSC: 39121025
• UPC 11: 04750308624
• UPC 12: 047503086247
• Brand: Acme Electric
• Manufacturer: Acme Electric
• Phase: 1
• Power Rating: 2 kVA
• Secondary Voltage: 16/32 VAC
