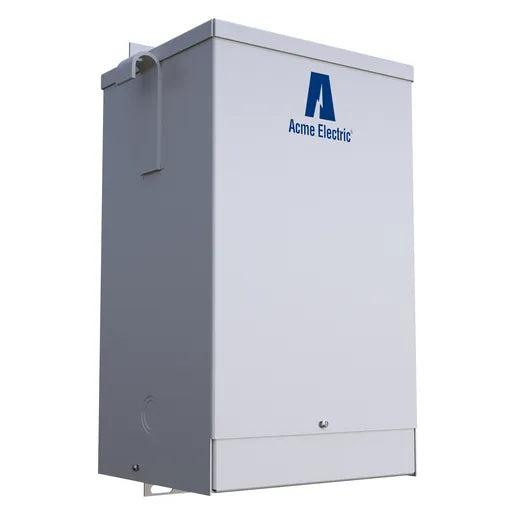

Acme T111687 Buck-Boost Transformer - Single Phase, 120 X 240 - 12/24V, 5kVA

Product Description

The ACME T111687 buck-boost transformer is a single-phase transformer designed to reduce or raise line voltage from 5-20%. It is easily configured for numerous applications and offers a lower cost solution with a 5-10 times increase in kVA. It is suitable for indoor/outdoor use.

• Easily configured for numerous applications
• Lower cost solution
• 5-10 times increase in kVA

Product Highlights

This buck-boost transformer is an economical way to correct voltage issues, boosting 208 volts to 230 volts.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: T111687
• Country of Origin: United States

Technical Specifications

• Catalog Number: T111687
• Construction: Encapsulated
• kVA: 5
• Material Type: ZFIN
• Max Temperature Rise: 115 Degrees Celsius
• Mounting Type: Wall
• Primary Voltage - Winding: 120 X 240 V
• Product Category: Buck-Boost Transformer
• Secondary Voltage - Winding: 12/24 V
• UL Insulation Class: 180 C
• UPC: 047503086827
• Winding Material: CU
• Frequency Rating: 60 Hz
• Primary Voltage: 120 X 240 V
• CSA Standard: C22.2 No 47
• Nema Rating: NEMA 3R
• Brand: Acme Electric
• Country of Origin: United States
• Configuration: Enclosed
• Phase: 1 Phase
• Power Rating: 5 kVA
• Secondary Current: 416.6/208 A
• Secondary Voltage: 12/24 VAC
• Type: Buck-Boost Transformer
• UPC Code: 47503086827
• Connection Type: Wire Lead
• Enclosure Type: NEMA 3R/IP54
• Housing Material: Steel
• Temperature Rating: 115 deg C
• Volt Amps: 5kVA
