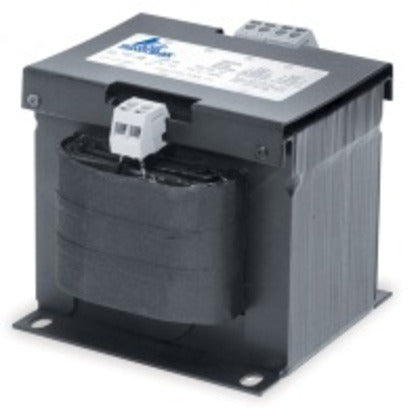

Acme FS-3-1500 Acme Electric 1.5 kVA single phase dry type transformer (1.5 kVA) CE1500F007

Product Description

Acme FS-3-1500 is a 1.5 kVA single-phase dry type industrial control transformer with multi-tap primary and secondary windings for control circuits and machine tool applications. It features precision-wound copper coils, high-permeability silicon steel laminations to reduce core losses, integrally molded protective terminations, and open style construction for cooling. The unit operates at 50/60 Hz and offers multiple primary and secondary voltage configurations for installation flexibility.

• Multi-tap primary voltages covering 208, 220, 230, 240, 380, 400, 416, 440, 460, 480, 500, 550, 575, 600 V for broad installation options
• Secondary voltage tap groups include 85/100/110, 91/110/120, 95/115/125, and 99/120/130 V for control-circuit outputs
• Precision copper windings, high-permeability silicon steel laminations, molded protective terminations, and open style core and coil design; rated 1.5 kVA at 50/60 Hz

Product Highlights

1.5 kVA single-phase industrial control transformer with multi-tap primaries and secondaries, copper windings, open style cooling, molded protective terminations, and 50/60 Hz operation.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: FS-3-1500
• Country of Origin: Mexico
