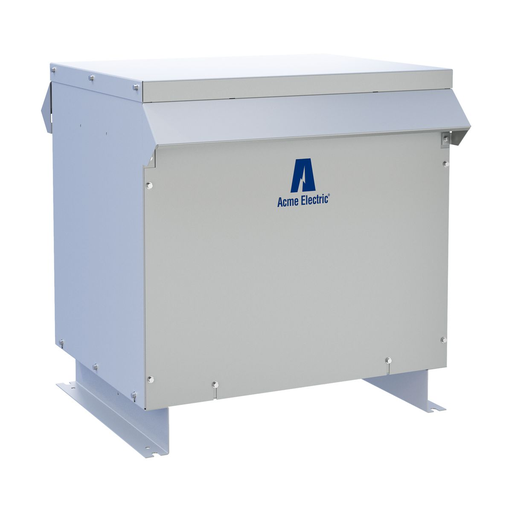

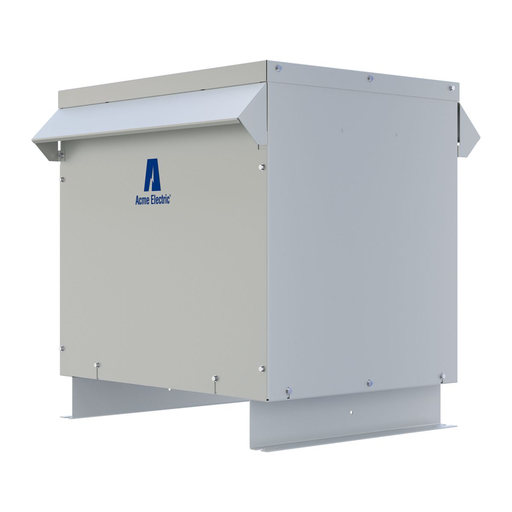

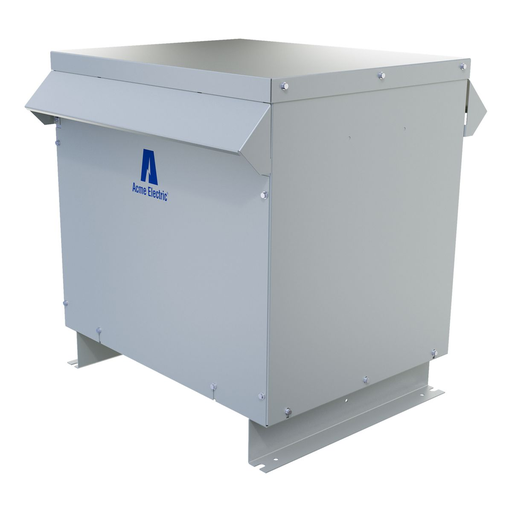

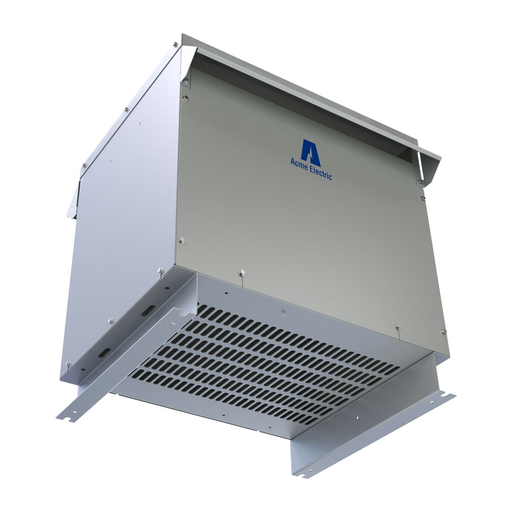

Acme Electric T3045K0013B Low Voltage Distribution Transformer - Three Phase, 480-208Y/120V, 45kVA

Product Description

The Acme Electric T3045K0013B is a low voltage distribution transformer designed for three-phase applications. This transformer effectively converts voltage to suitable levels for various electrical systems, ensuring proper power distribution.

• Rated at 45 kVA, suitable for various residential and commercial applications.
• Primary voltage rating of 480 volts, secondary voltage of 208Y/120 volts.
• Meets DOE 2016 efficiency requirements for energy savings.

Product Highlights

The T3045K0013B offers efficient power conversion and distribution while adhering to various electrical standards. Its NEMA 3R enclosure ensures durability and suitability for outdoor applications.

Product Information

Standard Information

• Manufacturer: Acme Electric, a Hubbell affiliate
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: T3045K0013B
• Frequency Rating: 60 Hz
• Mounting Type: Floor
• Number of Taps: Two 2-1/2% (+) & Four 2-1/2% (-)
• Special Features: Meet DOE 2016 efficiency requirements
• UPC: 047503091135
• Dimensions (L x W x H): 19.37 x 24.39 x 25.5 inches
• Temperature Rating: 150 Degrees C
