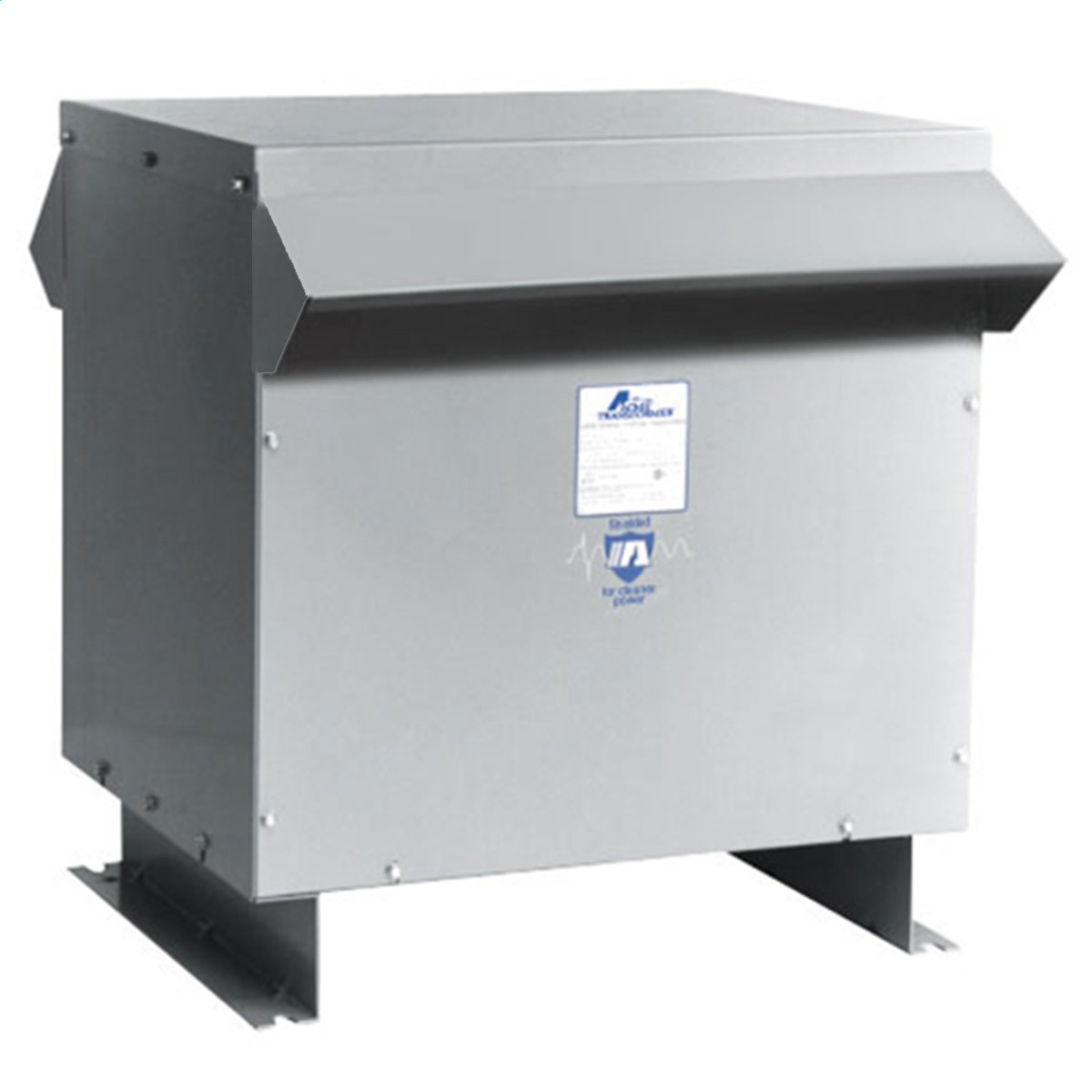

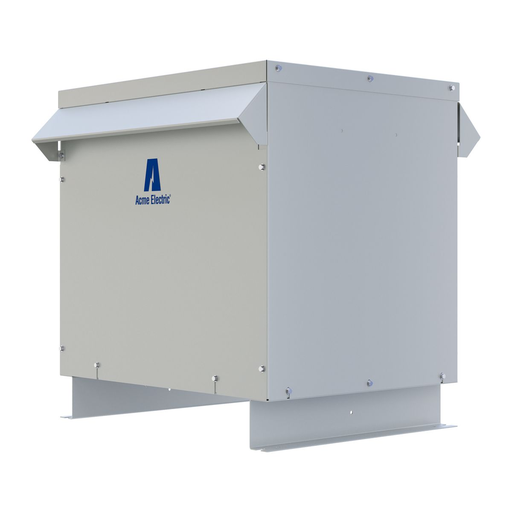

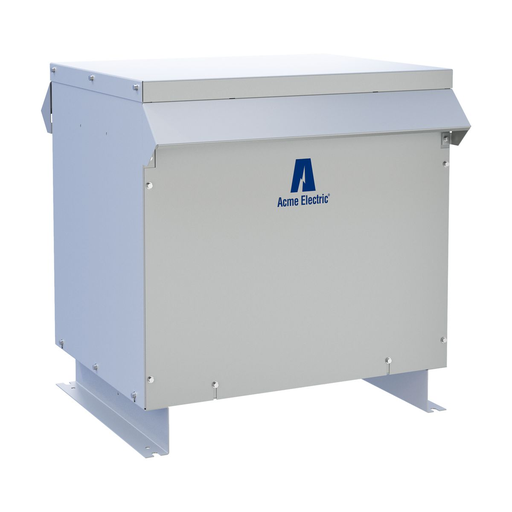

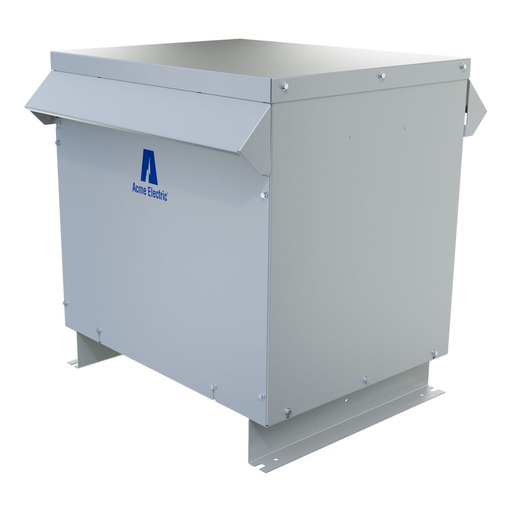

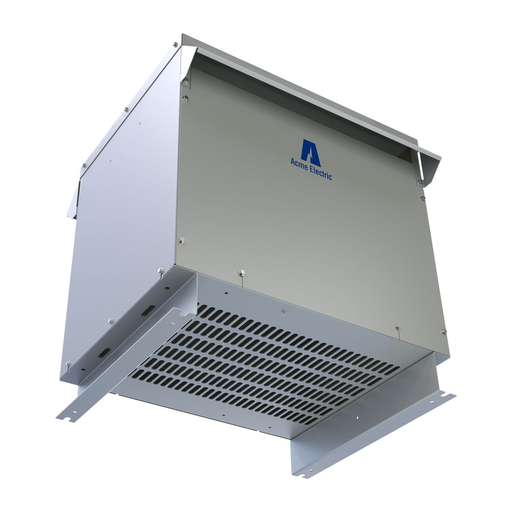

Acme Electric T3030K0013B Low Voltage Distribution Transformer 3PH 30KVA DOE 2016 COMPLIANT

Product Description

The Acme Electric T3030K0013B is a low voltage distribution transformer featuring three-phase operation and a power rating of thirty kilovolt-amperes. It is compliant with DOE 2016 efficiency standards, making it suitable for various commercial and industrial applications.

• Dry type construction ensures reliability in various installations.
• Designed for mounting on the floor, suitable for tight spaces.
• Offers two 2-1/2% taps for flexible voltage management.

Product Highlights

Ideal for use in industrial environments, this transformer supports voltage reduction from four hundred eighty volts to two hundred eight Y/one hundred twenty volts.

Product Information

Standard Information

• Manufacturer: Acme Electric, a Hubbell affiliate
• Country of Origin: Mexico

Technical Specifications

• Type: Transformers
• Frequency Rating: 60 Hz
• Mounting Type: Floor
• Primary Voltage: 480 V
• Secondary Voltage: 208Y/120 V
• Special Features: Meet DOE 2016 efficiency requirements
• Height: 25.5 inches
• Width: 24.39 inches
• Length: 19.37 inches
• Weight: 290 lb
