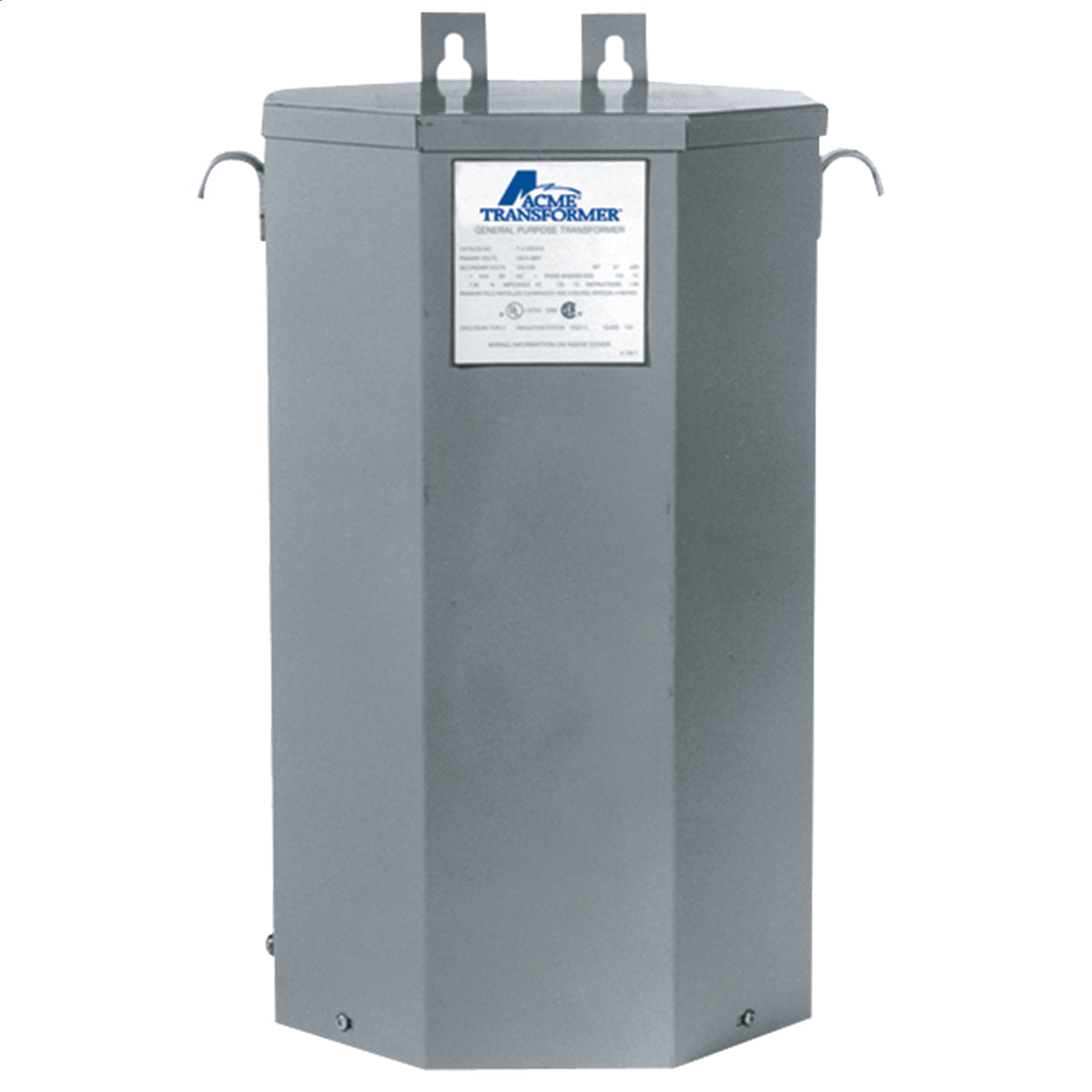

Acme Electric T213078 ACM Buck-Boost Transformer 7.5 kVA 120/240 VAC Primary 16/32 VDC Secondary

Product Description

The Acme Electric T213078 is an encapsulated isolation buck boost transformer designed for various electrical applications. It operates on a primary voltage of one hundred twenty or two hundred forty volts AC and provides a secondary voltage output of sixteen or thirty-two volts DC. With a power rating of seven point five kilovolt-amperes at a frequency of sixty hertz, this transformer is ideal for tasks that require voltage adjustments.

• Encapsulated isolation design for durability.
• Wall mounted for versatile installation.
• Suitable for indoor and outdoor applications.

Product Highlights

This transformer is a compact solution for boosting or bucking line voltage, making it essential for running equipment like air conditioning units or motors that require specific voltage levels. It operates efficiently in both residential and commercial settings.

Product Information

Standard Information

• Brand: Acme Electric
• Manufacturer: Acme Electric

Technical Specifications

• Type: Encapsulated Isolation
• Primary Voltage: 120/240 VAC
• Secondary Voltage: 16/32 VDC
• Power Rating: 7.5 kVA
• Phase: 1 ph
• Frequency Rating: 60 Hz
• Insulation Temperature Rating: 180 deg C
• Enclosure Type: NEMA 3R/IP54
• Maximum Amperage Rating: 468/234 A
• Dimensions: 10.84 in L x 11.12 in W x 20.81 in H
• Mounting Type: Wall
• Housing Material: Steel
• Country of Origin: Mexico
