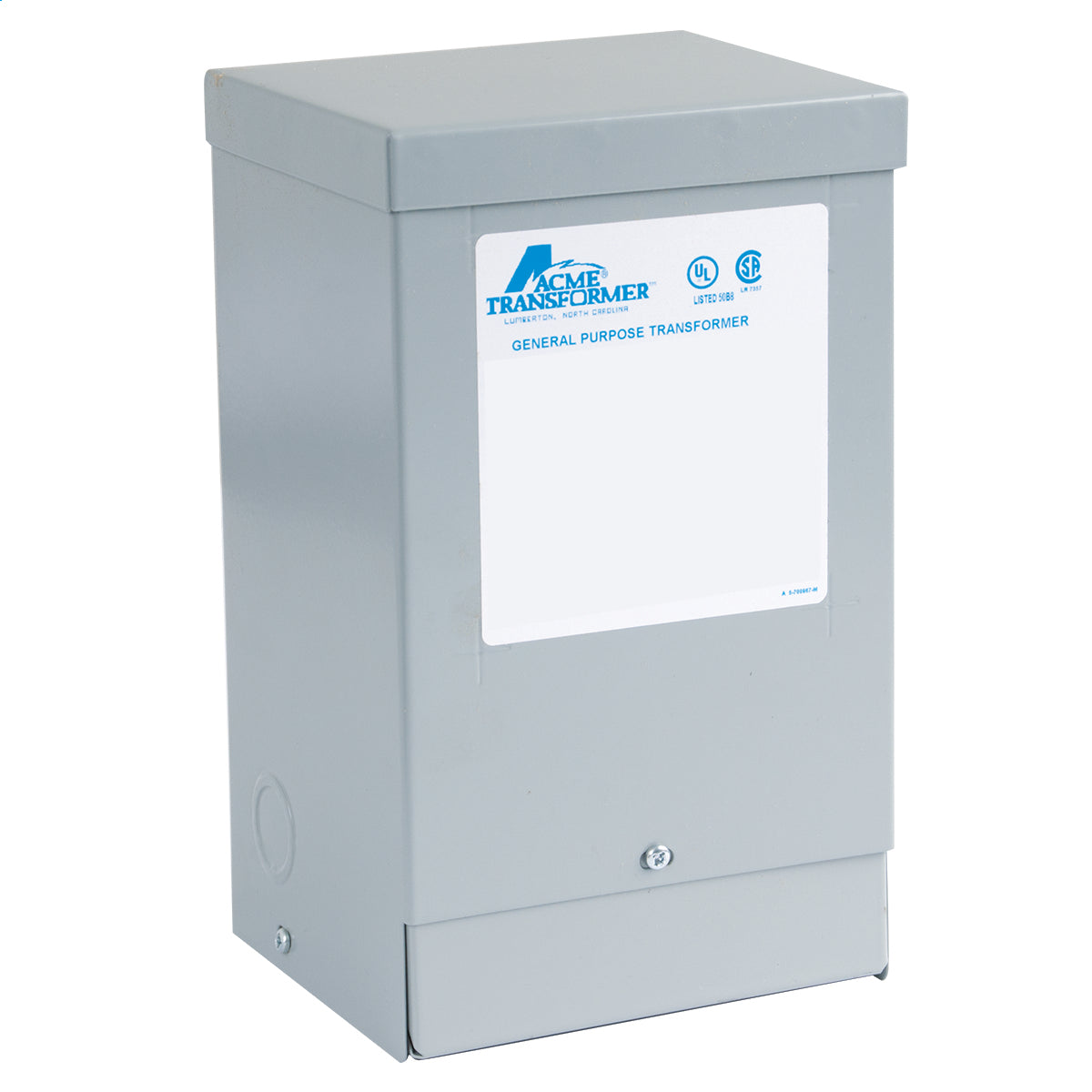

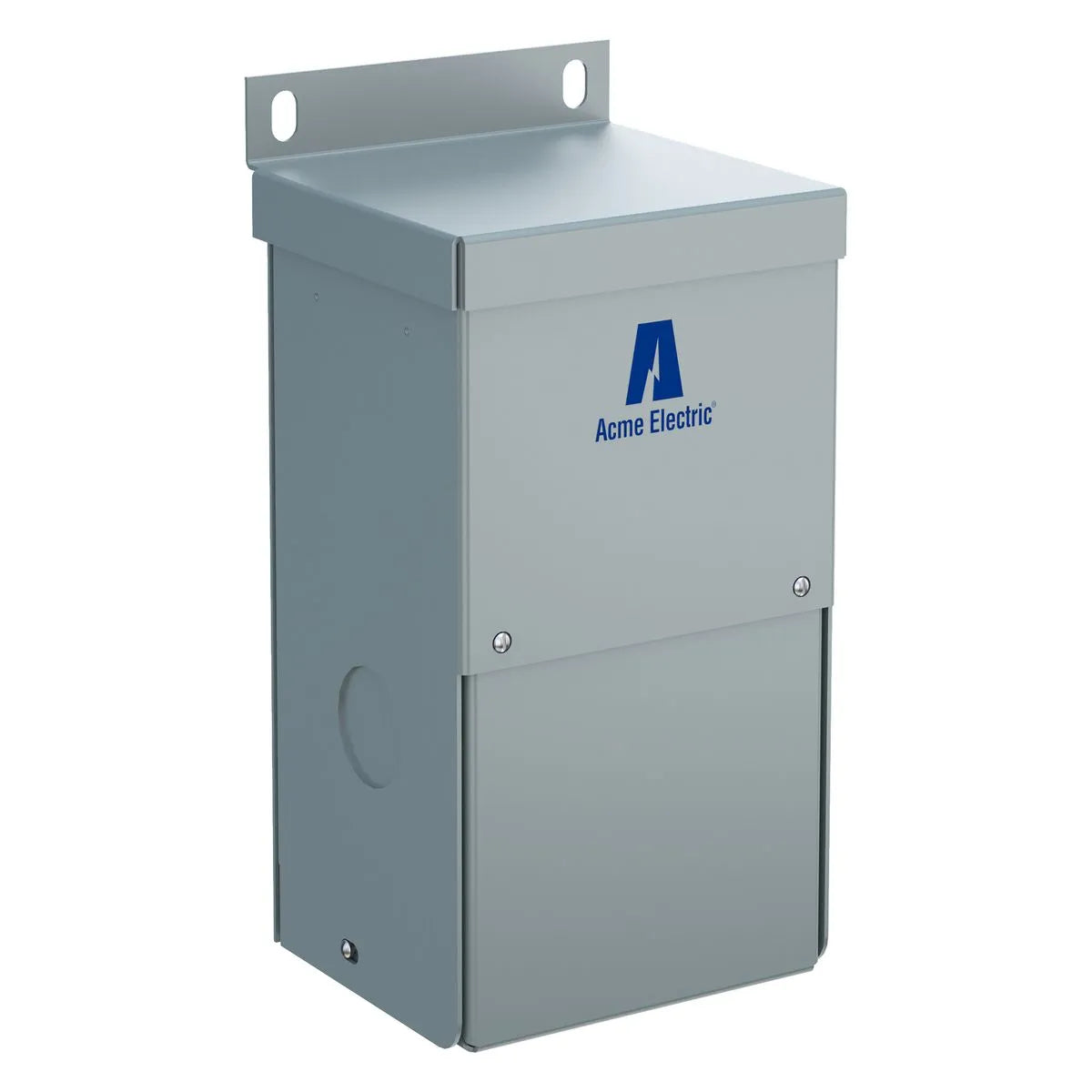

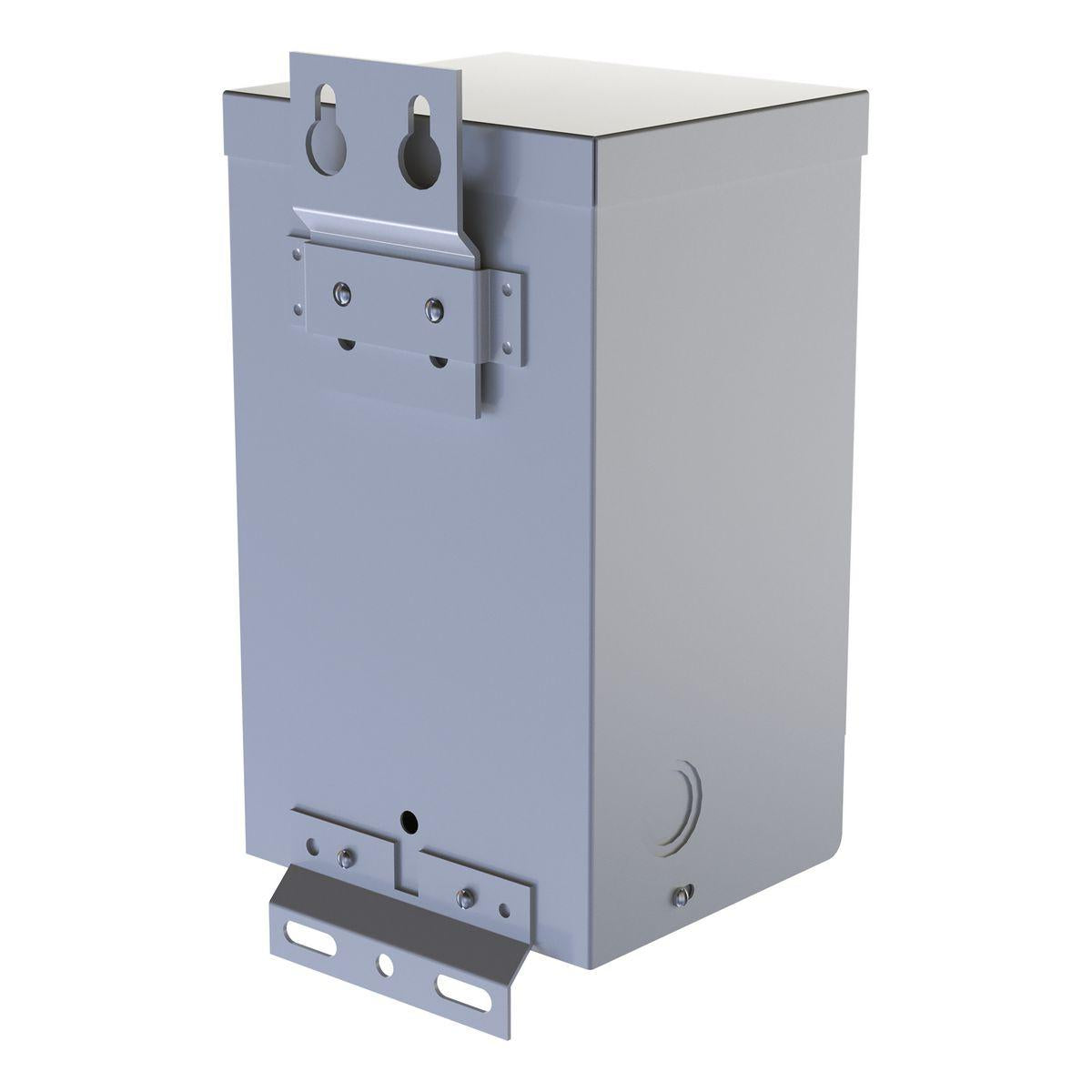

Acme Electric T181063 Buck-Boost Transformer 150 VA (5.13 in x 5.5 in x 11.62 in)

Product Description

Acme Electric T181063 is an encapsulated isolation buck-boost transformer rated 150 VA with a 240/480 VAC primary and 24/48 VAC secondary. It is single-phase, 50/60 Hz, and provides maximum secondary currents of 6.24 A and 3.12 A. The unit is wall-mountable with wire-lead connections, NEMA 3R/IP54 enclosure, Class H (180�C) insulation, 115�C temperature rating, and dimensions of 5.13 in x 5.5 in x 11.62 in.

• Encapsulated isolation design with copper windings and UL insulation class H (180�C)
• Dual primary 240/480 VAC and dual secondary 24/48 VAC, 150 VA, single-phase, 50/60 Hz
• Wall-mountable NEMA 3R / IP54 enclosure with wire-lead connections; max secondary currents 6.24 A / 3.12 A

Product Highlights

150 VA encapsulated buck-boost transformer; 240/480 VAC primary; 24/48 VAC secondary; NEMA 3R/IP54, Class H insulation; wall mount, wire lead connections.

Product Information

Standard Information

• Brand: ACME ELECTRIC
• Manufacturer Part Number: T181063
• Country of Origin: Mexico

Technical Specifications

• Brand: Acme Electric
• Manufacturer Part Number: T181063
• Type: Encapsulated isolation buck-boost transformer
• Power Rating: 150 VA
• kVA Rating: 0.15 kVA
• Primary Voltage: 240/480 VAC (dual primary)
• Secondary Voltage: 24/48 VAC
• Frequency Rating: 50/60 Hz
• Phase: Single phase
• Output Current: 6.24 A / 3.12 A
• Connection Type: Wire lead
• Mounting Type: Wall mount
• Enclosure Rating: NEMA 3R / IP54
• Enclosure Finish: Powder coated
• Insulation Class: Class H / 180 �C
• Temperature Rating: 115 �C (specified temp / likely temperature rise rating)
• Dimensions: 5.13 in L x 5.50 in W x 11.62 in H
• Weight: 7 lb (approx. 3.15 kg)
• Winding Material: Copper
• Knockout Size: 1/2 in
• Outdoor Rated: Yes
• Country of Origin: Mexico
• Standards and Certifications: UL 506; CSA certified; UL 506/50B8/B3223 File No. E79947V1; ANSI/IEEE references; PROP65
