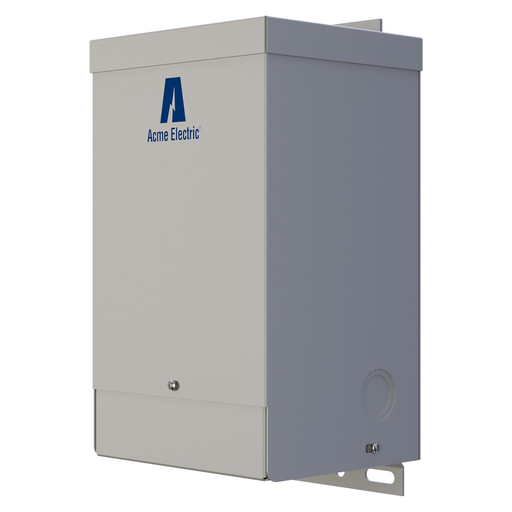

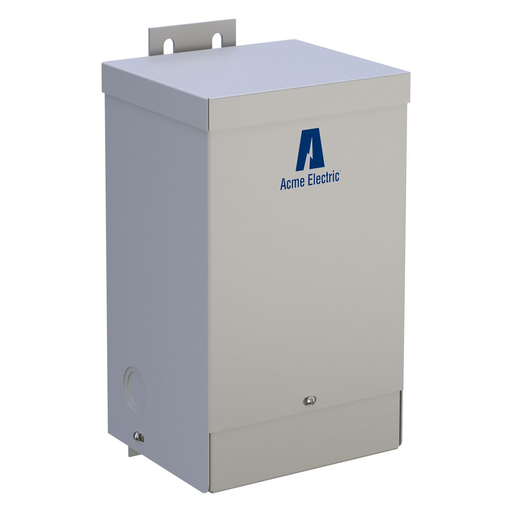

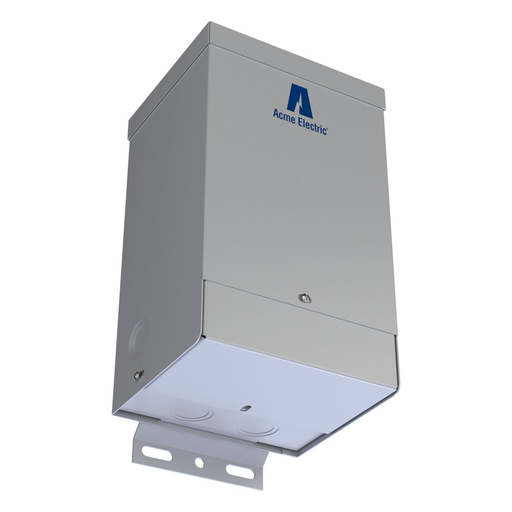

Acme Electric T113075 Buck-Boost Transformer - Single Phase, 120 X 240 - 16/32V, 2kVA

Product Description

The Acme Electric T113075 is a buck-boost transformer designed for single-phase applications. It supports a primary voltage of 120 by 240 volts and a secondary voltage of 16/32 volts. This transformer is suitable for low voltage lighting or control circuitry installations.

• Phase: Single
• Primary Voltage: 120 X 240 V
• Secondary Voltage: 16/32 V

Product Highlights

This transformer is built for easy installation and reliable performance. It is encapsulated to protect the core and coil, ensuring durability in various environments.

Product Information

Standard Information

• Manufacturer: Acme Electric, a Hubbell affiliate
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: T113075
• Phase: 1
• Frequency Rating: 60 Hz
• Insulation Class: 180 DEG C Class H
• Max Output Current: 125@16V/62.5@32V A
• Temperature Rating: 115 DEG C Rise

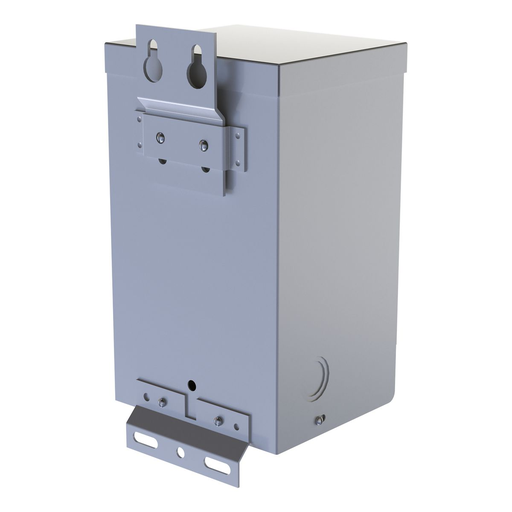

• Mounting: Wall
• Enclosure: NEMA 3R Steel
