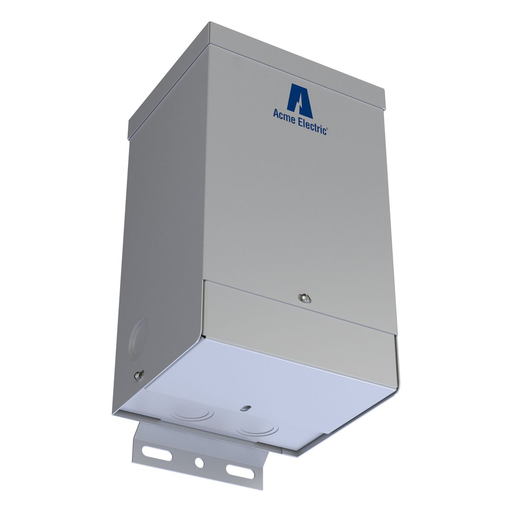

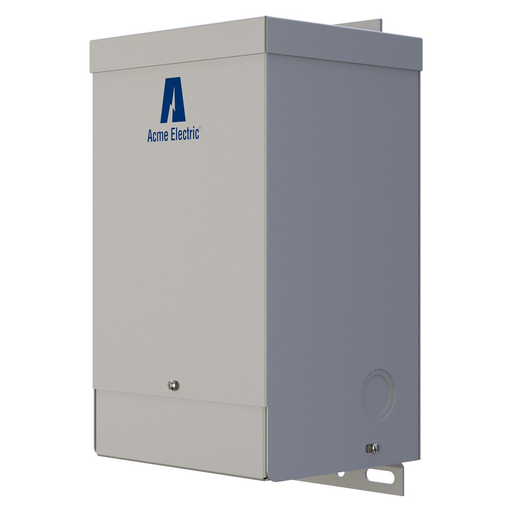

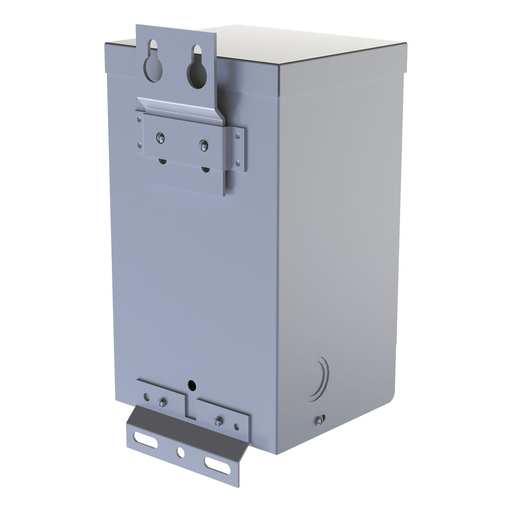

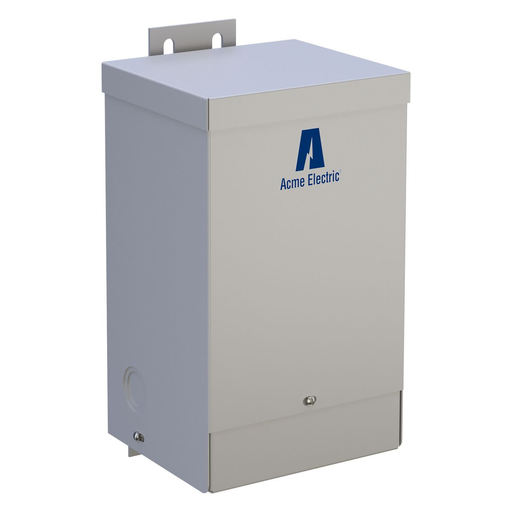

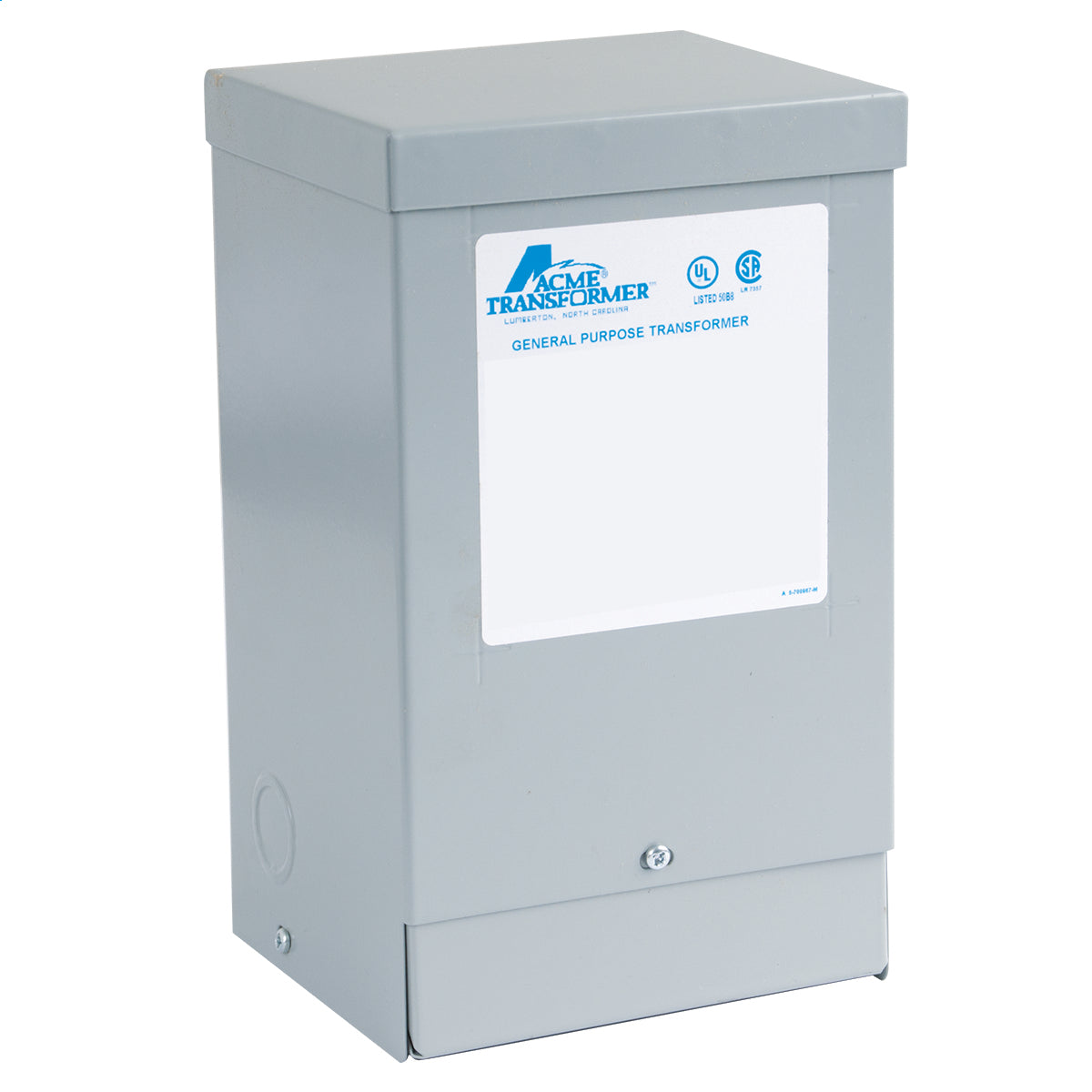

Acme Electric T113074 Buck-Boost Transformer - Single Phase, 120 X 240 - 16/32V, 1.5kVA

Product Description

The Acme Electric T113074 is a Buck-Boost Transformer designed for diverse low voltage applications. It caters to voltages between one hundred twenty and two hundred forty volts on the primary side and offers sixteen to thirty-two volts on the secondary side. This transformer is engineered for use in control circuitry and low voltage lighting.

• Single phase operation for reliable performance.
• Designed for voltages of 120 X 240 V.
• Constructed with NEMA 3R Steel for durability.

Product Highlights

This transformer is ideal for scenarios where line voltage adjustments are necessary. Its encapsulated core and coil provide reliability and safety, making it an essential component for various electrical systems.

Product Information

Standard Information

• Catalog Number: T113074
• Manufacturer: Acme Electric, a Hubbell affiliate

Technical Specifications

• Application: For low voltage lighting or control circuitry
• Connection: Wire lead screw terminal
• Enclosure: NEMA 3R steel
• Frequency Rating: 60 Hz
• Insulation Class: 180 DEG C Class H
• Mounting: Wall
• Phase: 1
• Primary Voltage: 120 X 240 V
• Secondary Voltage: 16/32 V
• Temperature Rating: 115 DEG C rise
