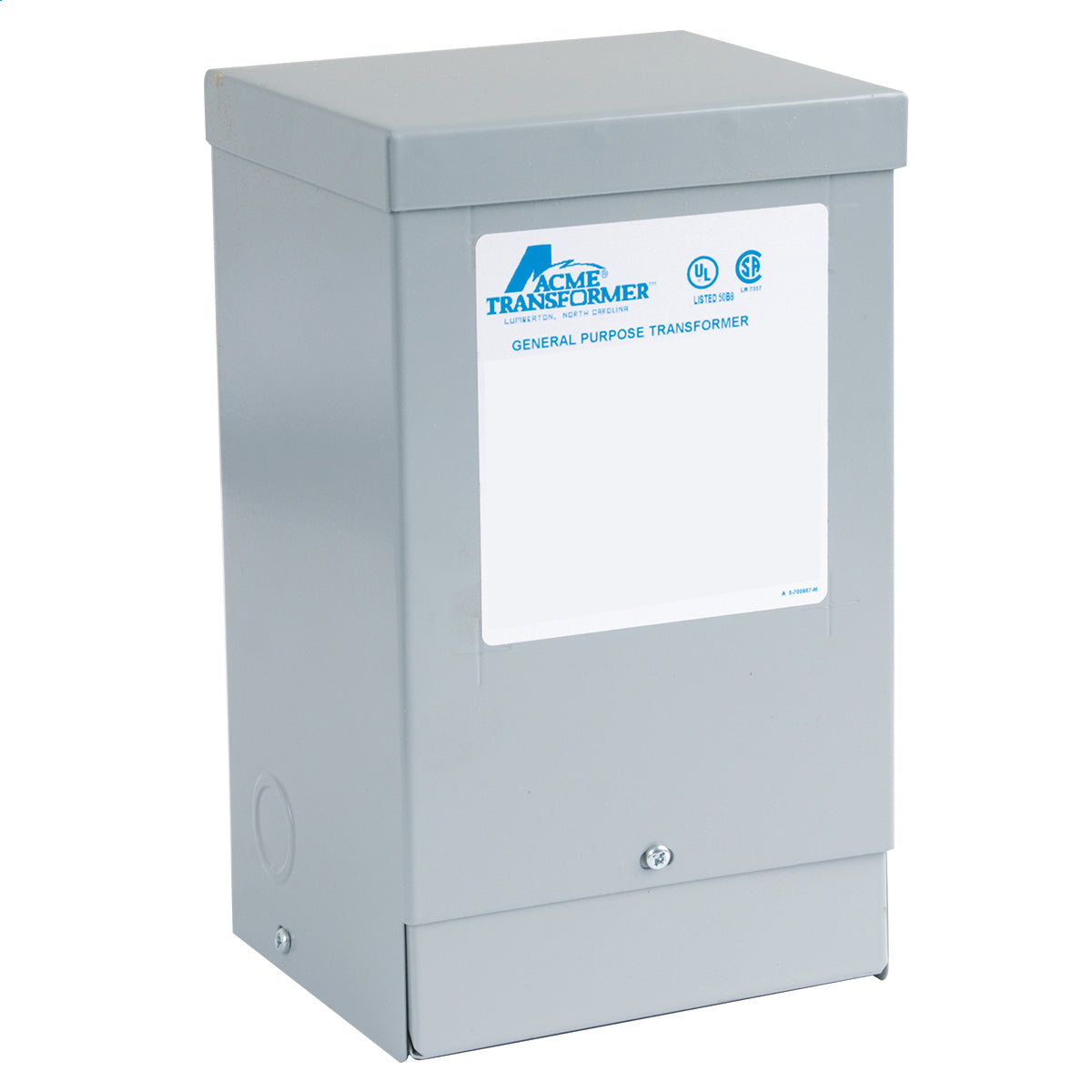

Acme Electric T111684 Buck-Boost Transformer - Single Phase, 120 X 240 - 12/24V, 1.5kVA

Product Description

The Acme Electric T111684 is a buck-boost transformer suitable for single-phase applications. This unit operates at primary voltages of one hundred twenty by two hundred forty volts and provides secondary voltages of twelve and twenty-four volts. Buck-boost transformers are used to adjust voltage levels in low voltage lighting or control circuits.

• Designed for low voltage lighting and control circuitry.
• Features a NEMA three-R steel enclosure for weather resistance.
• Encapsulated core and coil ensure durability and performance.

Product Highlights

This transformer is an economical solution for voltage adjustments, allowing for a range of changes from five to twenty percent. It is especially effective in boosting voltages for motors and compressors.

Product Information

Standard Information

• Brand: Acme Electric, a Hubbell affiliate
• Manufacturing Country: Mexico

Technical Specifications

• Catalog Number: T111684
• Phase: 1
• Primary Voltage: 120 X 240 V
• Secondary Voltage: 12/24 V
• Frequency Rating: 60 HZ
• Insulation Class: 180 DEG C Class H
• Mounting: Wall
• Temperature Rating: 115 DEG C Rise
• Enclosure: NEMA 3R Steel
• Application: For Low Voltage Lighting Or Control Circuitry
• Connection: Wire Lead Screw Terminal
• Special Features: Buck-boost transformers are designed to adjust line voltage, making them ideal for common applications like air conditioning units.
• Standard: UL 506, UL File Number E79947V1, CSA Certified, OSHA Compliant
• UPC: 047503171707
• GTIN: 00047503171707
