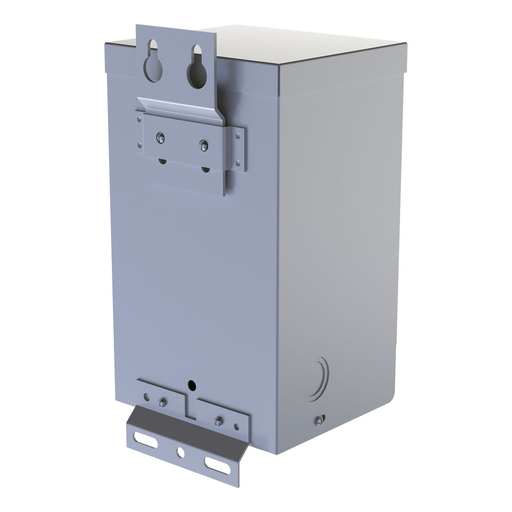

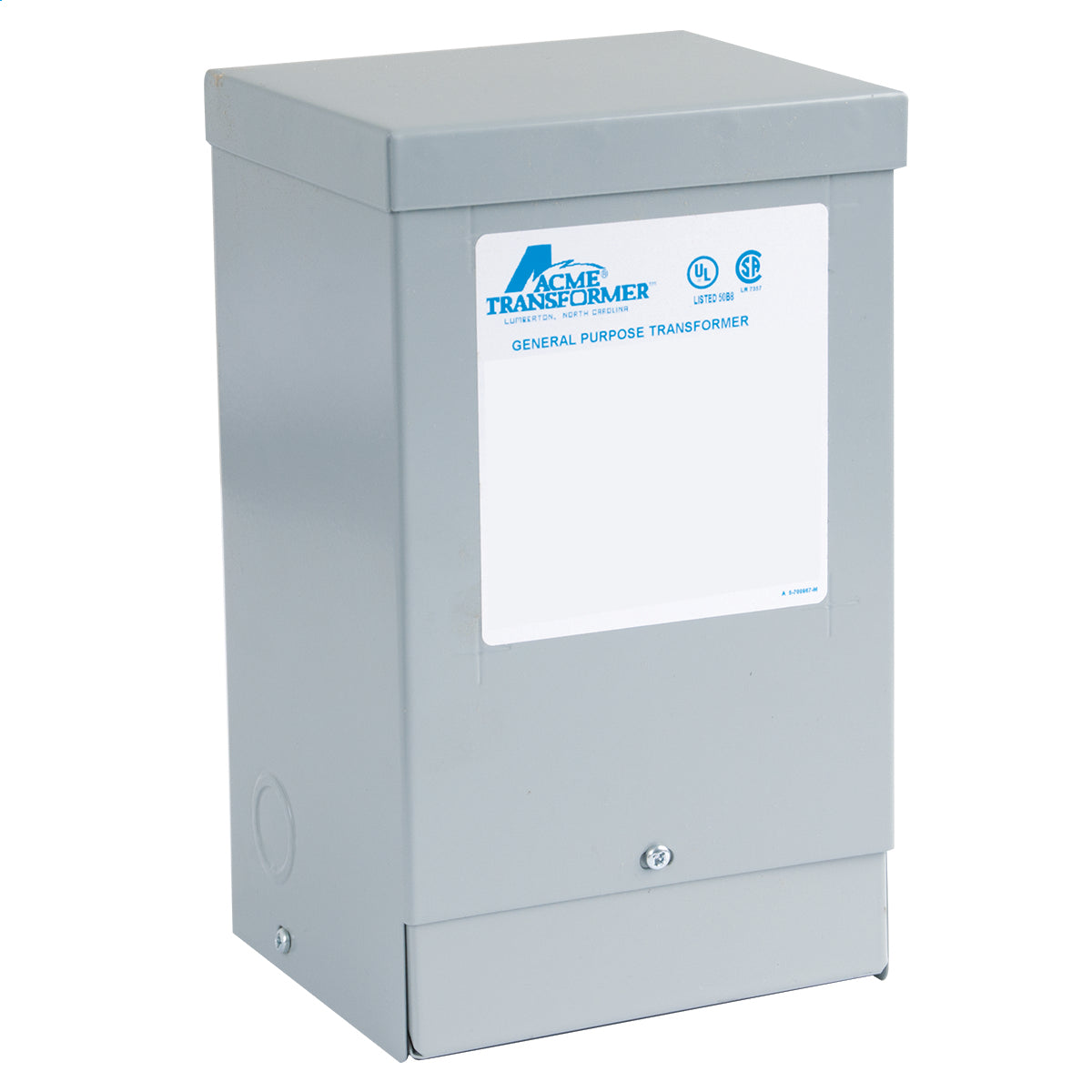

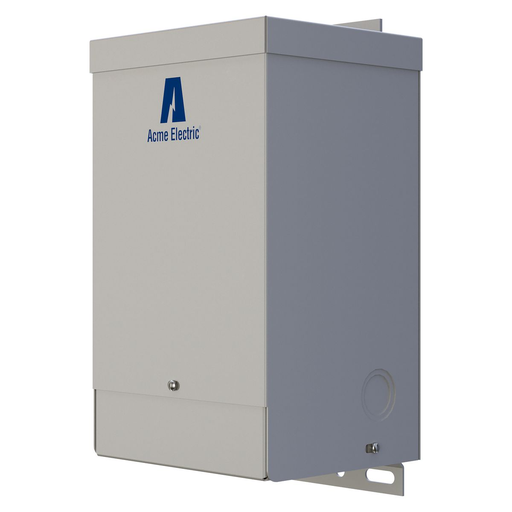

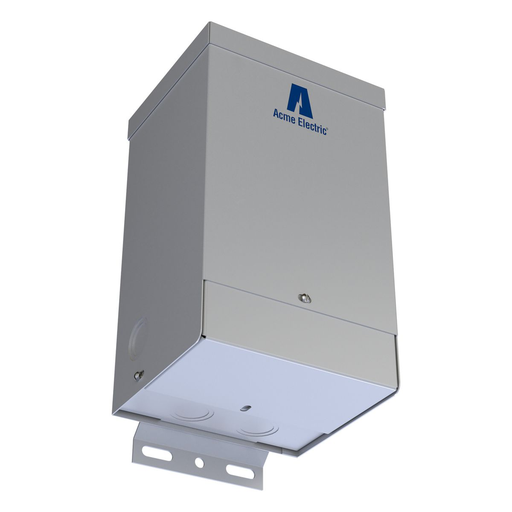

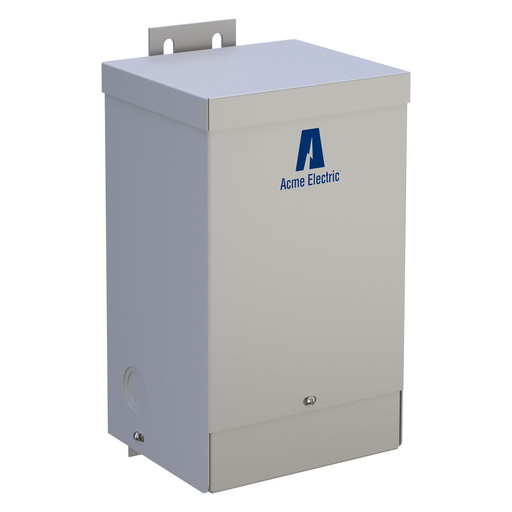

Acme Electric T111683 Buck-Boost Transformer - Single Phase, 120 X 240 - 12/24V, 1kVA

Product Description

The Acme Electric T111683 is a Buck-Boost Transformer designed for single-phase applications. It serves the purpose of correcting voltage levels, making it suitable for low voltage lighting and control circuitry. This particular model operates on a primary voltage of one hundred twenty by two hundred forty volts and provides a secondary voltage of twelve or twenty-four volts at a one kilovolt-ampere rating.

• Single-phase operation
• NEMA 3R steel enclosure
• Designed for low voltage applications

Product Highlights

This transformer is tailored to boost or reduce line voltage effectively. Equipped for a range of lighting applications, it optimizes power supply issues.

Product Information

Standard Information

• Brand: Acme Electric
• Manufacturer: Acme Electric, a Hubbell affiliate

Technical Specifications

• Catalog Number: T111683
• Phase: 1
• Primary Voltage: 120 X 240 V
• Secondary Voltage: 12/24 V
• Frequency Rating: 60 Hz
• Max Output Current: 83.2@12V/41.6@24V A
• Temperature Rating: 115 degrees C
• Insulation Class: 180 degrees C Class H
• Mounting: Wall
• Enclosure: NEMA 3R Steel
