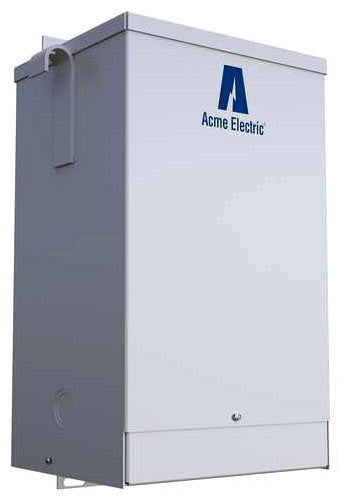

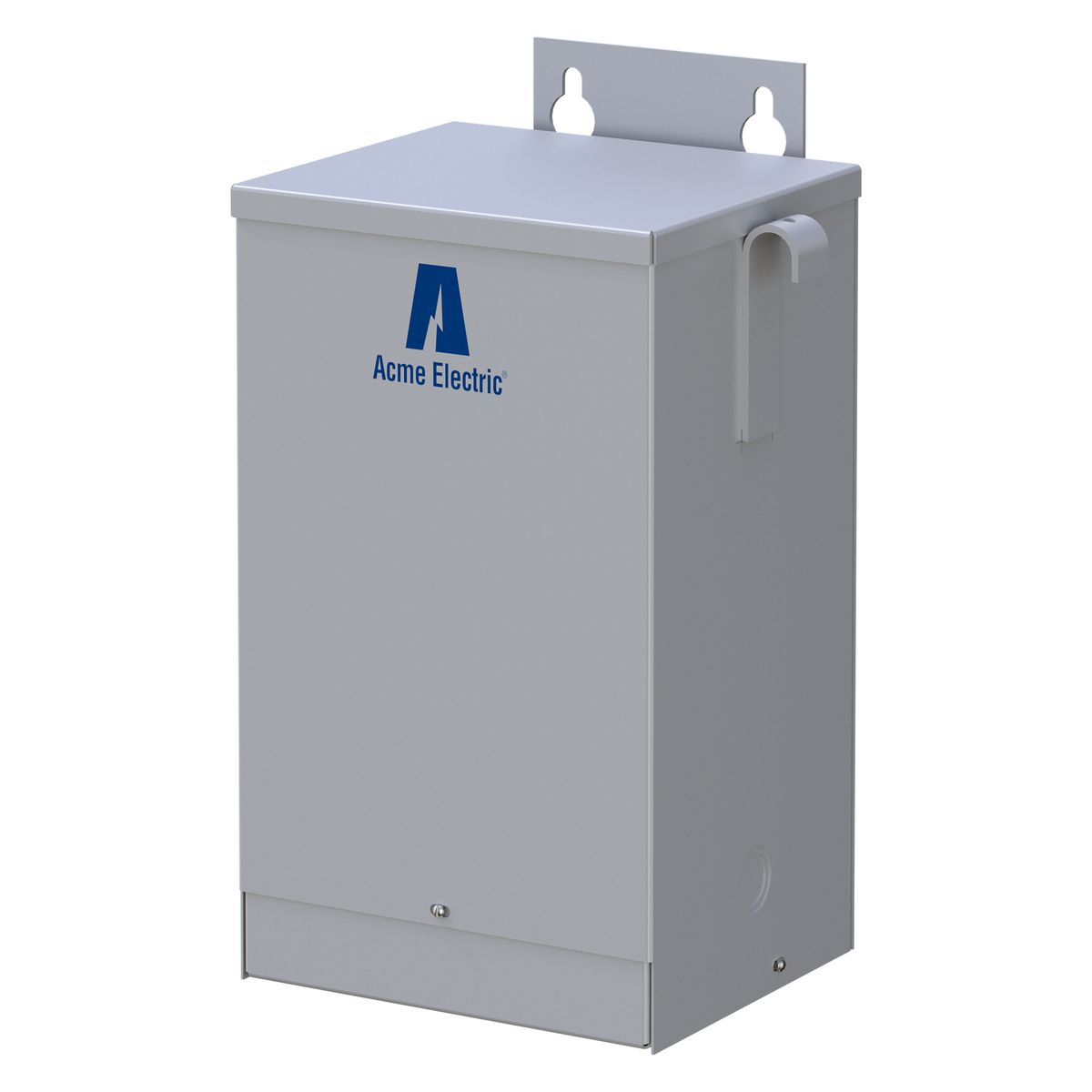

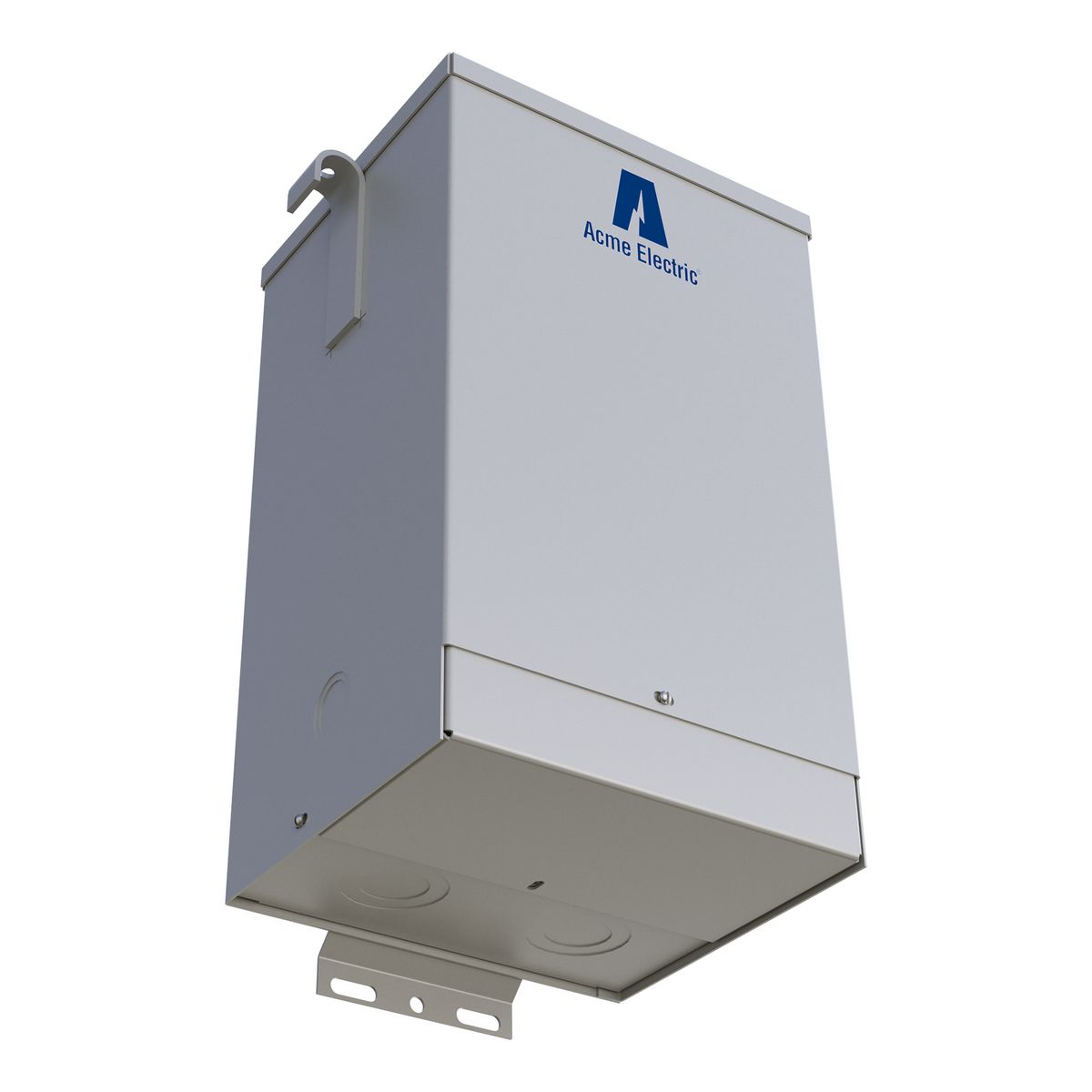

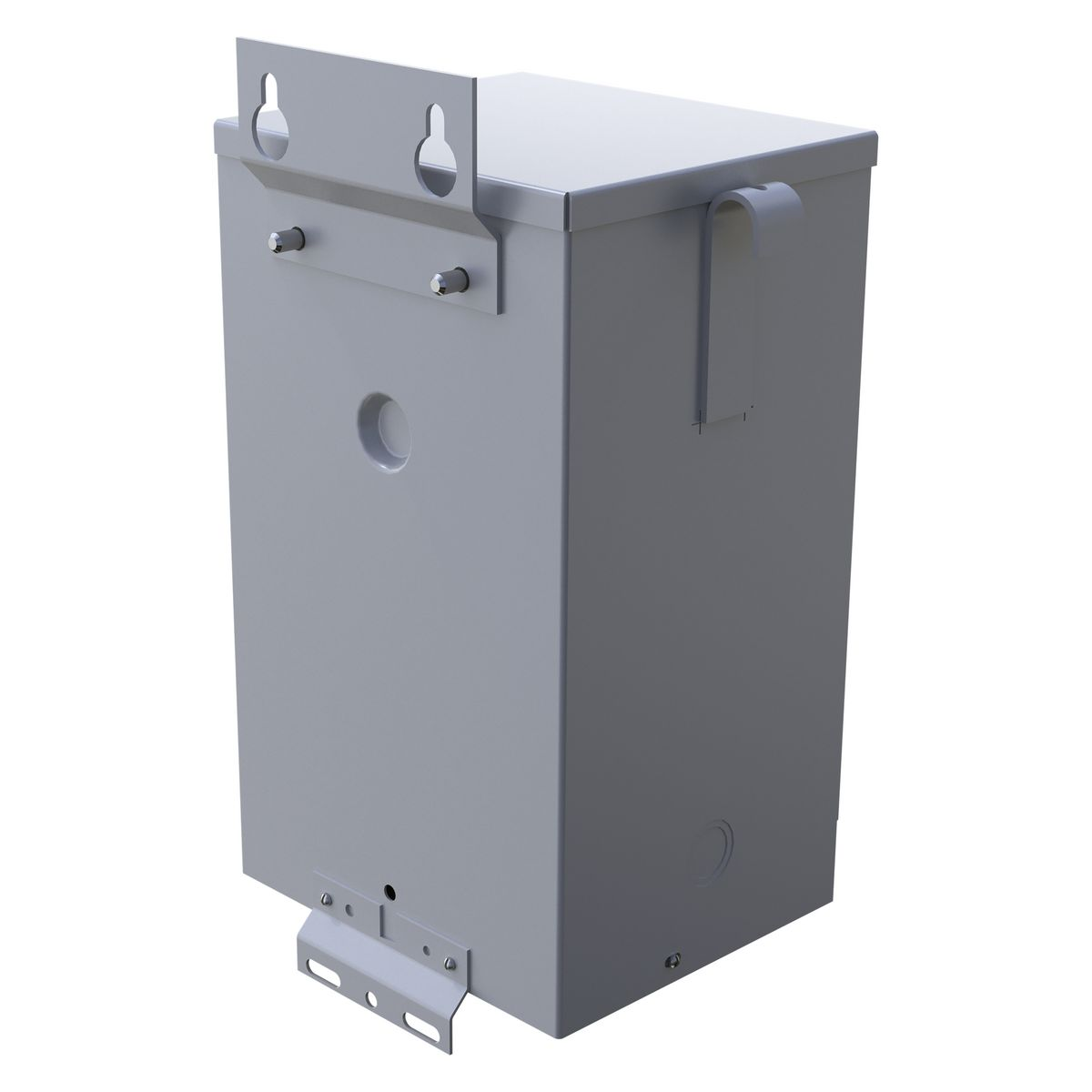

Acme Electric GP123000S Low Voltage Distribution Transformer - Single Phase, 277/480 - 208/277V, 3kVA

Product Description

Acme Electric offers the GP123000S Low Voltage Distribution Transformer. This single-phase transformer is designed for versatile electrical distribution in various applications. It operates at primary voltages of two hundred seventy-seven to four hundred eighty volts and provides a secondary voltage output of two hundred eight to two hundred seventy-seven volts.

• Encapsulated design provides moisture and air resistance.
• NEMA 3R steel enclosure for indoor or outdoor use.
• Quiet operation standards lower than NEMA requirements.

Product Highlights

Efficient for residential and commercial use, this transformer ensures reliable voltage transformation and distribution.

Product Information

Standard Information

• Brand: Acme Electric
• Manufacturer: Acme Electric, a Hubbell affiliate

Technical Specifications

• Catalog Number: GP123000S
• Primary Voltage: 277/480 V
• Secondary Voltage: 208/277 V
• Frequency Rating: 60 Hz
• Winding Material: CU
• Mounting: Wall
• Dimensions: 7.13 inches (Length) x 10.31 inches (Width) x 11.5 inches (Height)
• Temperature Rating: 115 Degrees Celsius Rise
• Nema Rating: NEMA 3R
• Country of Origin: Mexico
• Weight: 58 lb.
• Special Features: Encapsulated core and coil; shielded for cleaner power; quiet operation; encapsulation eliminates corrosion; regulation of 2.7% at 100% power factor
