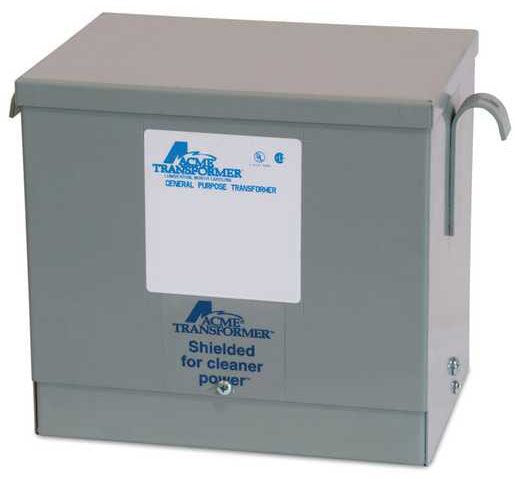

Acme DTGB72S Three Phase Transformer 7.5 Kva

Product Description

The ACME DTGB72S is a three-phase dry-type distribution transformer rated at 7.5 KVA. Dry-type transformers in this class step voltage up or down between distribution and utilization levels in commercial and light industrial electrical systems. The DTGB72S is designed for indoor or protected-location service where oil-filled units are not permitted. Licensed electricians and electrical contractors install this transformer as part of a fixed electrical distribution system. At 180 pounds, the unit requires proper rigging and support structure before energization.

This transformer is suited for commercial buildings, light industrial facilities, and similar applications requiring three-phase power distribution. Typical installations include panelboard feed circuits, machine tool power supplies, and facility distribution systems where a dry-type, three-phase step-down configuration is required. It is intended for permanent, fixed installation per applicable electrical codes.

Key Features

• 7.5 KVA three-phase capacity for commercial and light industrial distribution
• Dry-type construction eliminates oil handling and containment requirements
• Suitable for indoor installations where oil-filled transformers are prohibited
• Substantial 180-pound build reflects robust core and coil construction

Compatibility

Designed as an OEM-style replacement or new-installation three-phase dry-type distribution transformer for commercial and light industrial electrical distribution systems.

Installation Notes

Installation must be performed by a licensed electrician in accordance with NEC Article 450 governing transformer installation and protection. De-energize and lockout/tagout all upstream circuits before making any connections. The unit weight of 180 pounds requires appropriate mechanical rigging and a rated mounting structure or pad. Verify that ventilation clearances meet manufacturer and code requirements for dry-type transformer enclosures before energizing.

Technical Specifications

• KVA Rating: 7.5 KVA
• Phase: Three Phase
• Type: Dry-Type Distribution Transformer
• Weight: 180 pounds

Standard Information

• Brand: ACME
• Manufacturer Part Number: DTGB72S
