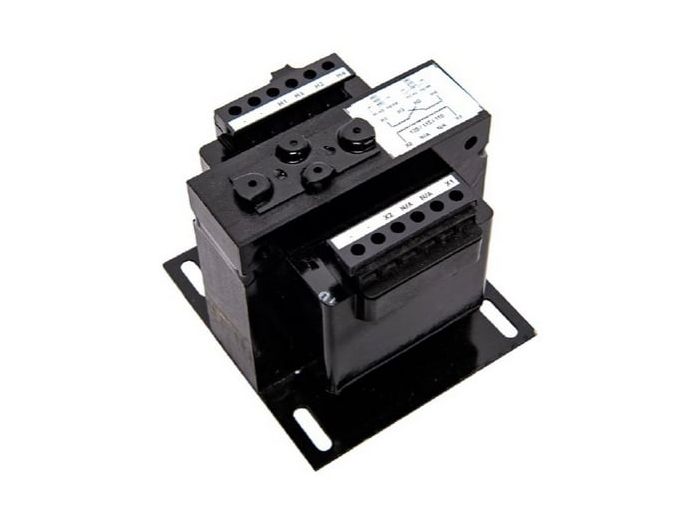

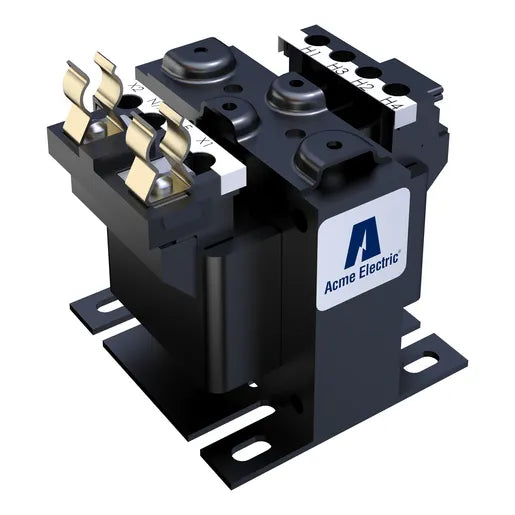

Acme CE350N004 Industrial Control Transformer 200, 208/220, 230, 240/440, 460, 480 Primary Volts -23, 24, 25/110, 115, 120 Secondary Volts

Product Description

The ACME CE350N004 is an industrial control transformer designed to accommodate momentary current inrush when electromagnetic components are energized, without sacrificing secondary voltage stability. Its windings and internal terminations are encased in a thermoplastic end cap, protecting them from moisture and contaminants. It is a dry-type, step-down transformer with a secondary control circuit isolated from the primary line circuit.

• Encapsulated design protects core & coil assembly from potentially damaging contaminants.
• Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency.
• Integrally molded terminal blocks with isolation barriers to prevent arc over.

Product Highlights

The CE350N004 industrial control transformer is designed for machine tool control circuit applications. It can handle high in-rush currents without sacrificing stable output voltage. Suitable for fixed installation in cabinets or switchboards.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: CE350N004
• Country of Origin: MX

Technical Specifications

• Catalog Number: CE350N004
• Construction: Encapsulated
• Secondary Voltage - Winding: 23,24,25/110,115,120 V
• UPC: 047503013748
• Frequency Rating: 50/60 Hz
• Primary Voltage: 200, 208/220, 230, 240/440, 460, 480 V
• Certified Listed: UL Listed, cUL Listed
• Manufacturer Part Number: CE350N004
• Manufacturer: Acme Electric
• Product Series: CE
• Family Series: Acme Electric Transformers, CE Series
• Phase: 1
• Type: Control
• VA Rating: 350 VA
• Secondary Voltage: 110 V, 115 V, 120 V, 23 V, 24 V, 25 V
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Optional
• Mounting: Foot, Plate
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Yes
• Approvals: CE, cUL, UL
• Model: CE350N004
• Part Number: CE350N004
• Enclosure Finish: Epoxy Resin Varnish
• Input Voltage: 208/230/460V AC
• Output Voltage: 115/24V AC
• Protection Device: None
• Temp. Rise: Not Rated
• Brand: ACME
• UNSPSC: 39121026
