Product Description

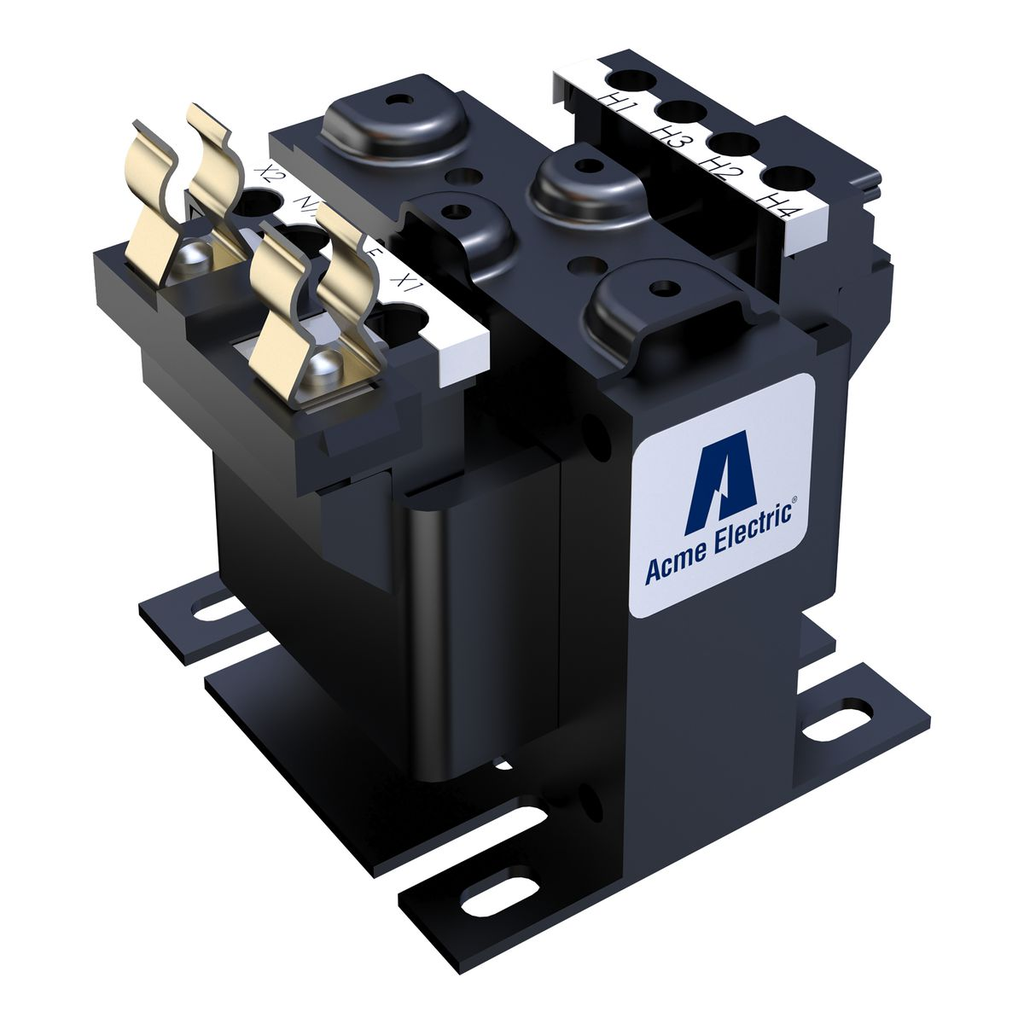

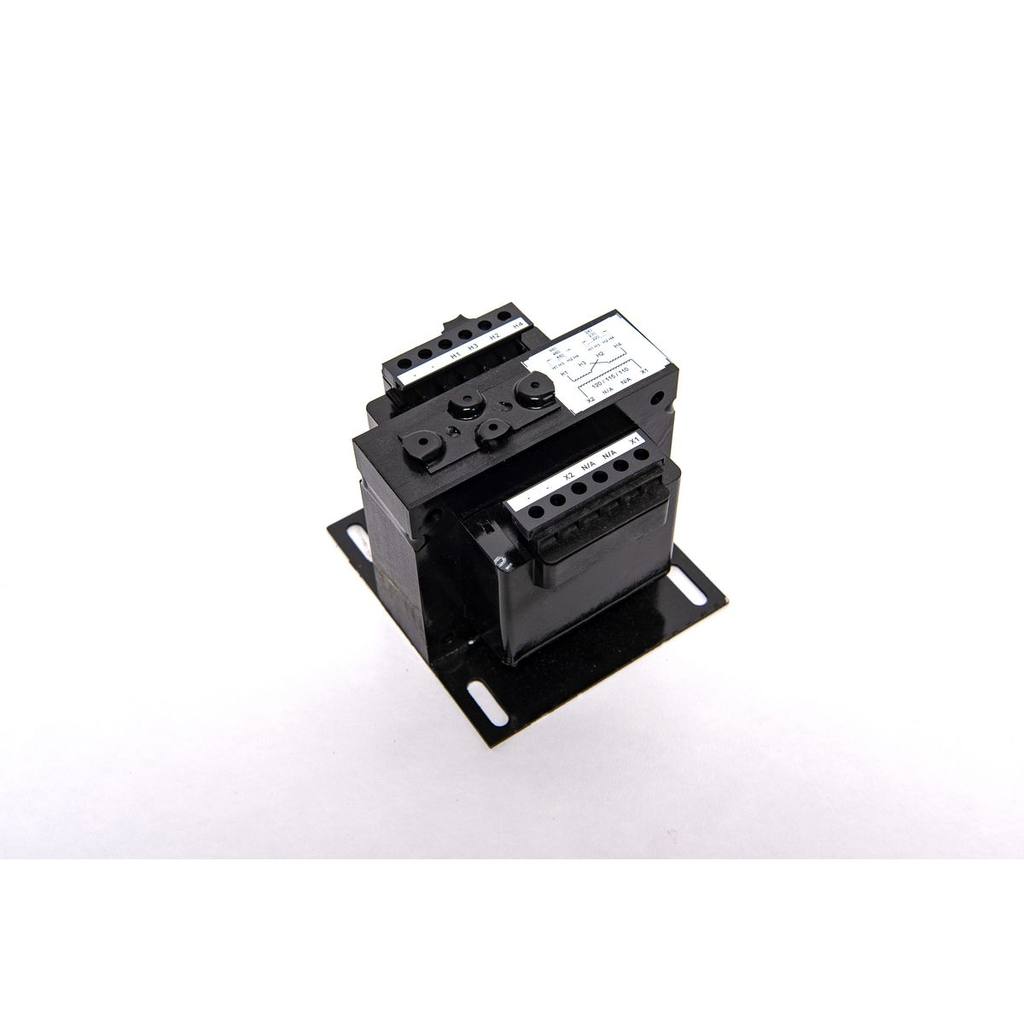

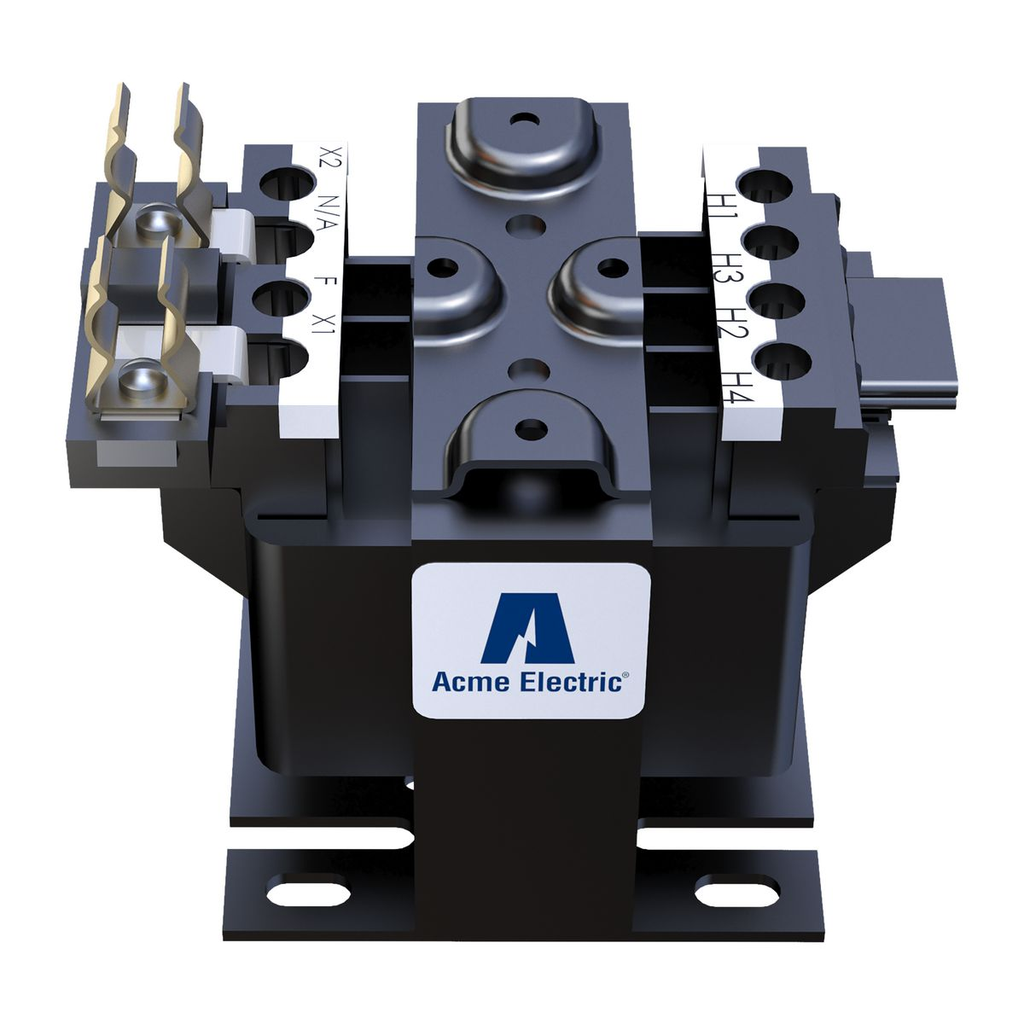

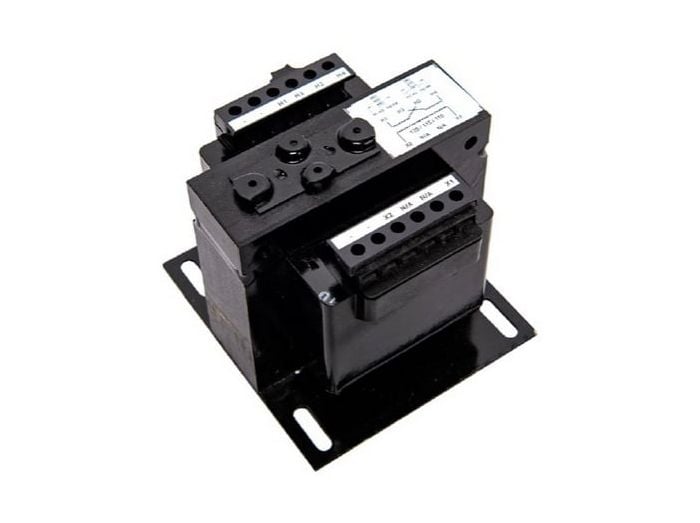

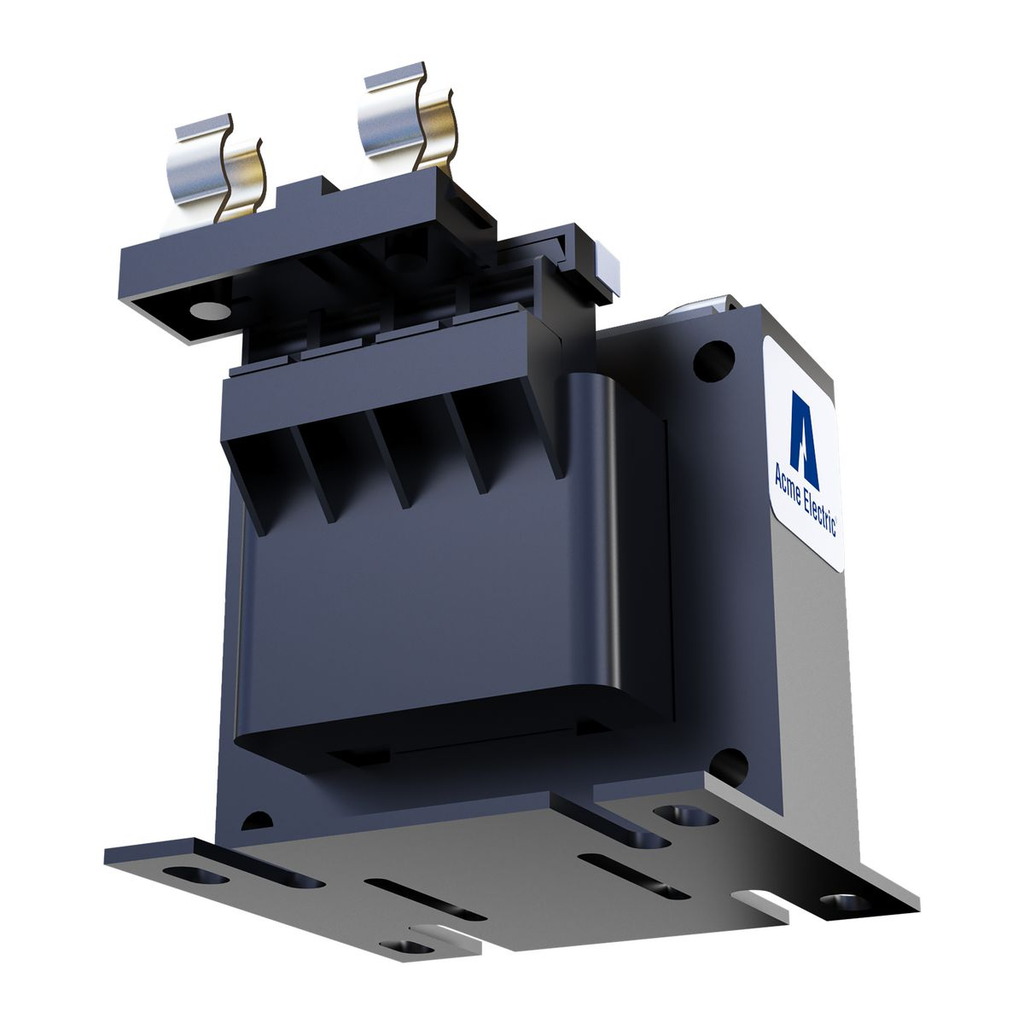

The Acme CE250N004 industrial control transformer is designed to accommodate momentary current inrush when electromagnetic components are energized. Its encapsulated design protects the core and coil assembly from contaminants. It features integrally molded terminal blocks with isolation barriers to prevent arc over.
- Encapsulated design protects core & coil assembly from potentially damaging contaminants
- Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
- Integrally molded terminal blocks with isolation barriers to prevent arc over
Product Highlights
The Acme CE250N004 transformer ensures safety with a secondary control circuit isolated from the primary line circuit. It is UL and cUL Listed.
Product Information
Standard Information
-
Brand: ACME
-
Manufacturer Part Number: CE250N004
-
Country of Origin: Mexico
Technical Specifications
-
Application: Acme’s TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer’s windings and internal terminations are encapsulant encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme’s TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety.
-
Catalog Number: CE250N004
-
Construction: Encapsulated
-
Secondary Voltage - Winding: 23,24,25/110,115,120 V
-
UPC: 047503013724
-
Frequency Rating: 50/60 Hz
-
Primary Voltage: 200 V, 208 V, 220 V, 230 V, 240 V, 440 V, 460 V, 480 V
-
Certified Listed: UL Listed
cUL Listed
-
Manufacturer: Acme Electric
-
Product Series: CE
-
Family Series: Acme Electric Transformers, CE Series
-
Description: Industrial Control Transformer 200,208/220,230,240/440,460,480 Primary Volts -23,24,25/110,115,120 Secondary Volts
-
Phase: 1
-
Type: Control
-
VA Rating: 250 VA
-
Secondary Voltage: 110 V, 115 V, 120 V, 23 V, 24 V, 25 V
-
Enclosed: No
-
Primary Fuseholder: Optional
-
Secondary Fuseholder: Optional
-
Mounting: Foot
-
Termination: Integrally Molded Terminal Blocks
-
Cover Included: Yes
-
Approvals: CE, cUL, UL
-
Net Weight: 13.6 lbs
-
Gross Weight: 14 lbs
-
Capital Electric Part #: 1566353
-
12-Digit UPC: 047503013724
-
GTiN: 00047503013724
-
Product UPC: 04750301372
-
Width: 8.700 in
-
Country of Origin: Mexico
-
Power Rating: 250 VA
-
Item Length: 9.000
-
Depth: 8.700
-
Item Height: 7.800
-
Item Width: 8.700
-
Weight: 13.1500
-
Features: Control Transformer, Input Voltage - Transformer 208V AC, 230V AC
