Aciq STN2020 7-day programmable 1H/1C thermostat battery or 24V (single stage)

Product Description

The ACiQ STN2020 is a single-stage programmable thermostat for 1 heat / 1 cool systems, offering 7-day, 5-2 day or non-programmable schedules and 0.5 °C temperature setting accuracy. It accepts battery or 24V power. The unit provides selectable white/blue/green backlight, separate B and O terminals, adjustable heating and cooling swing (cycle rate), selectable filter change indicator, setpoint limits, room temperature calibration, and selectable 5-minute compressor delay protection.

• Programmable: 7-day, 5-2 day or non-programmable scheduling with intuitive wake/leave/return/sleep icons
• Power and protection: battery or 24V operation with selectable 5-minute compressor delay protection
• Controls and adjustments: 0.5 °C temperature accuracy, separate B and O terminals, separate heating and cooling swing adjustments, and selectable filter change indicator

Product Highlights

Single-stage programmable thermostat with 0.5 °C accuracy, selectable backlight, and compressor protection

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: STN2020

Technical Specifications

• Brand: ACiQ
• Manufacturer Part Number: STN2020
• Model: STN2020
• SKU / ID: 83528
• Product Type: Single stage programmable thermostat
• Stages: Single Stage (1 Heat / 1 Cool)
• Heat/Cool: 1 Heat, 1 Cool
• Programmability: 5-2 Day, 7 Day or Non-Programmable
• Temperature Accuracy: 0.5 °C
• Operating Frequency: 50 Hz
• Backlight Options: White / Blue / Green (selectable)
• Power Options: Battery or 24V
• Compressor Delay Protection: 5 minute compressor delay protection (selectable on/off)
• Filter Change Indicator: Selectable on or off

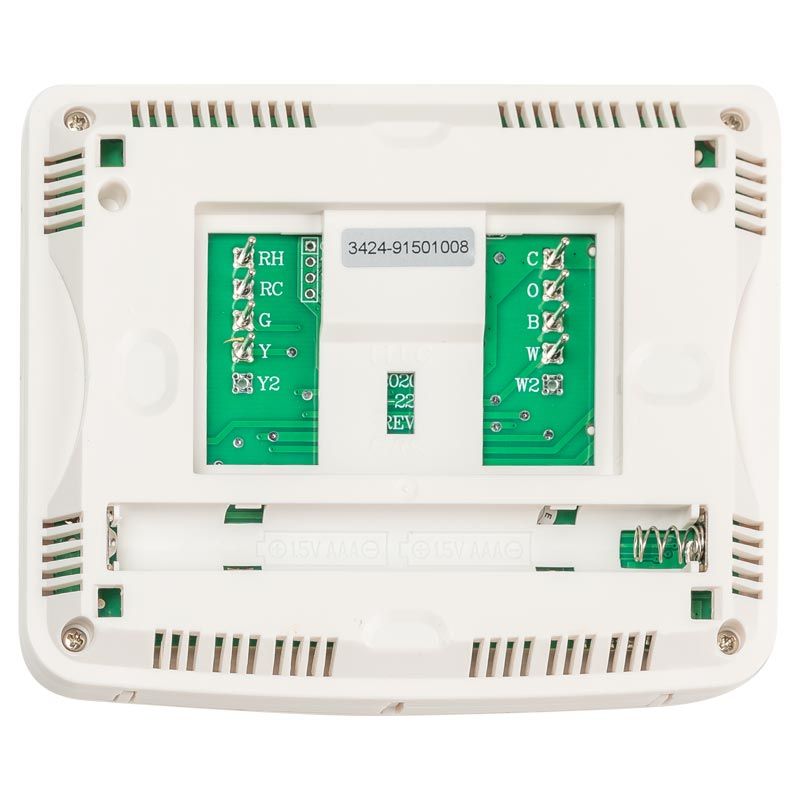

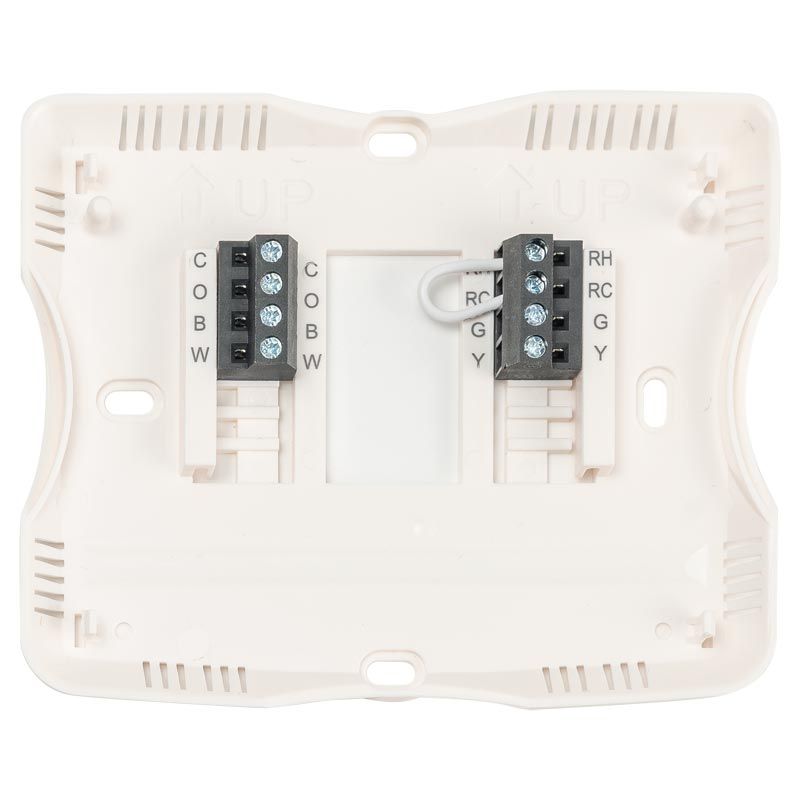

• Separate Terminals: Separate B & O terminals
• Swing Adjustments: Separate heating and cooling swing (cycle rate) adjustments
• Setpoint Limits: Heating and cooling set point limits
• Room Temperature Calibration: Adjustable

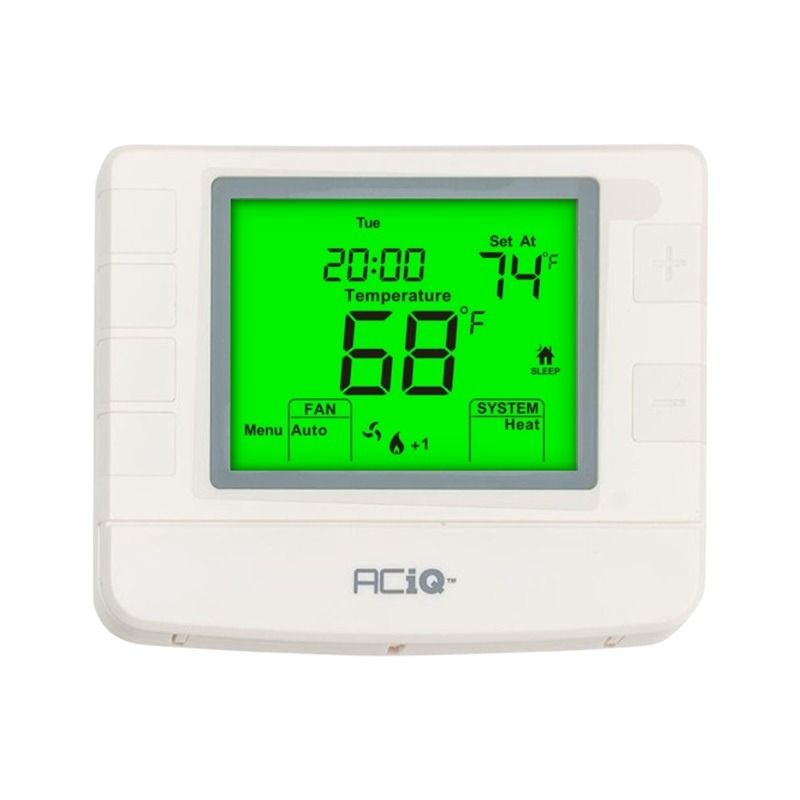

• Display Features: Easy menu-driven programming; intuitive wake/leave/return/sleep programming icons
• Configurable For: Electric or gas systems
• Weight: 1.00 lb
