ACIQ SCC-0612-HH-MB 6000 BTU - 12000 BTU ACiQ Platinum Single Zone Slim Ceiling Cassette Mini Split Air Handler - R454B | 230V

Product Description

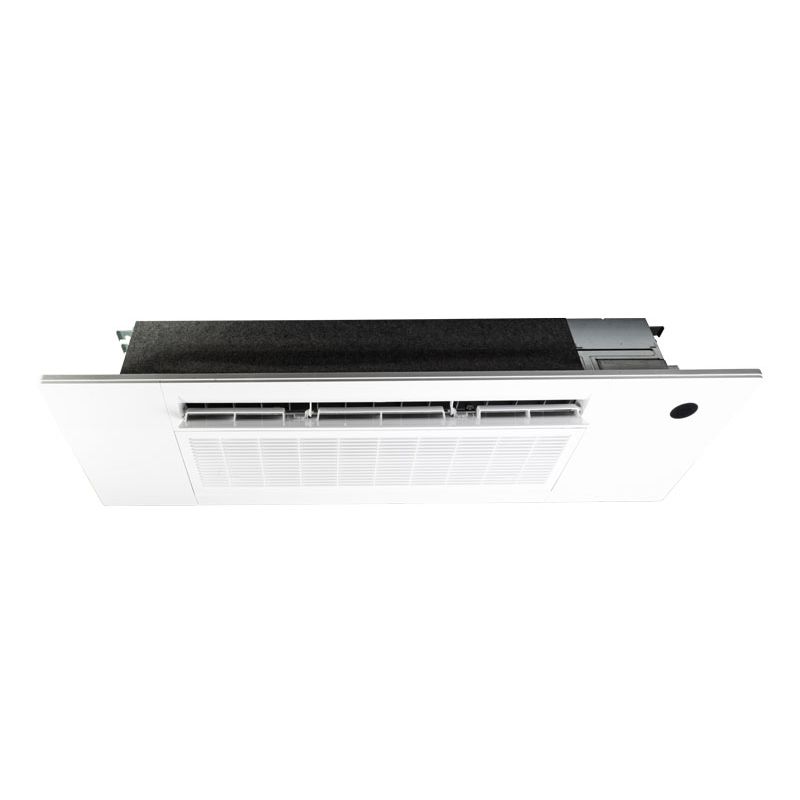

The ACIQ SCC-0612-HH-MB is a slim ceiling cassette mini split air handler designed for versatility in heating and cooling applications. This model supports 6,000, 9,000, and 12,000 BTU condensers and operates using R454B refrigerant. It features a design that fits easily between sixteen-inch center joists.

• Narrow profile for seamless installation.
• Handheld remote control included for convenient operation.
• Factory-installed condensate pump for efficient drainage.

Product Highlights

This air handler provides a discreet appearance while delivering efficient cooling and heating. The unit requires minimal modifications to existing structures and comes equipped with user-friendly features for maintenance.

Product Information

Standard Information

• Brand: ACIQ
• MPN: SCC-0612-HH-MB

Technical Specifications

• Cooling BTU: 6,000 / 9,000 / 12,000
• Heating BTU: 6,000 / 9,000 / 12,000
• Maximum CFM: Up to 353.20 CFM
• Decibel Level: As low as 24.0 dBA
• Refrigerant: R454B
• Electrical: 208/230V, 1 Phase, 60Hz
• Dimensions: 50.31 inches width x 13.19 inches depth x 8.98 inches height
• Warranty: 12 year compressor, 7 year parts with online registration
