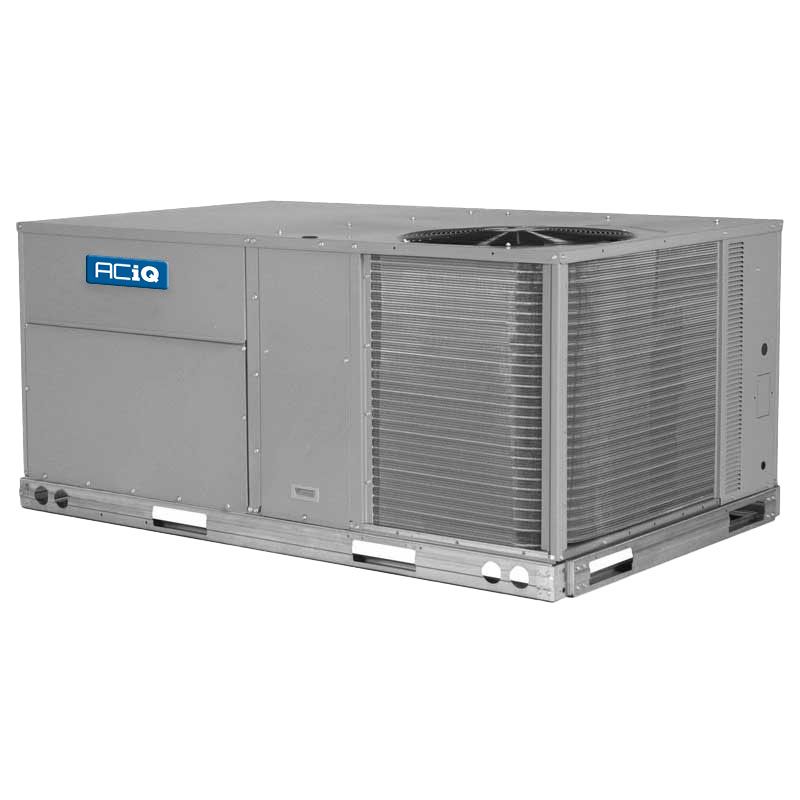

Aciq rhv102h02a0aaa light commercial packaged heat pump 8.5 ton 208/230v 3 phase

Product Description

The ACIQ RHV102H02A0AAA is an 8.5-ton packaged rooftop heat pump designed for commercial applications requiring both efficient cooling and heating. Engineered with advanced features like patented X-Vane Fan Technology and a variable-speed ECM motor, this unit offers enhanced energy efficiency and reduced maintenance. It provides reliable year-round comfort for spaces such as offices, retail stores, and restaurants, operating on 208/230v 3 Phase power.

• Direct Drive Type with patented Vane Axial fan and electric commutated variable-speed motor.
• Field-convertible between vertical and horizontal airflow for versatile installation.
• Meets or exceeds ASHRAE Standard 90.1-2016 and IECC-2018 minimum efficiency requirements.

Product Highlights

This 8.5 Ton, two-stage scroll compressor unit features 11.0 EER, 15.0 IEER, and up to 102,000 Heating BTUs.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: RHV102H02A0AAA

Technical Specifications

• SKU: RHV102H02A0AAA
• Refrigerant Charge: Pre-Charged
• Brand: ACiQ
• Cooling Capacity BTU: 96,000 BTU
• Heating Capacity BTU: 102,000 BTU
• Drive Type: Direct
• Maximum Airflow CFM: 3400
• Decibel Level: 84 Decibels
• Refrigerant Type: R410A
• EER: 11.0
• IEER: 15.0
• Condenser Stages: Two Stage
• Compressor Type: Scroll
• Input Voltage: 208/230v 3 Phase 60 Hz
• Phase: Three Phase
• Tonnage: 8.5 Ton
• Burner Stages: Two
• Height: 40 3/8"
• Width: 88 1/8"
• Depth: 59 1/2"
• AC Unit Type: Commercial Packaged Units
• Application: Light Commercial Packaged Heat Pump
• Heating Efficiency: 80-82%
• Fan Type: Patented Vane Axial with electric commutated variable-speed ECM motor
• Airflow Configuration: Field-convertible (vertical/horizontal)
• Electrical Connections: Single-point
• Efficiency Standards: ASHRAE Standard 90.1-2016, IECC-2018
• Filter Size: 2-inch
