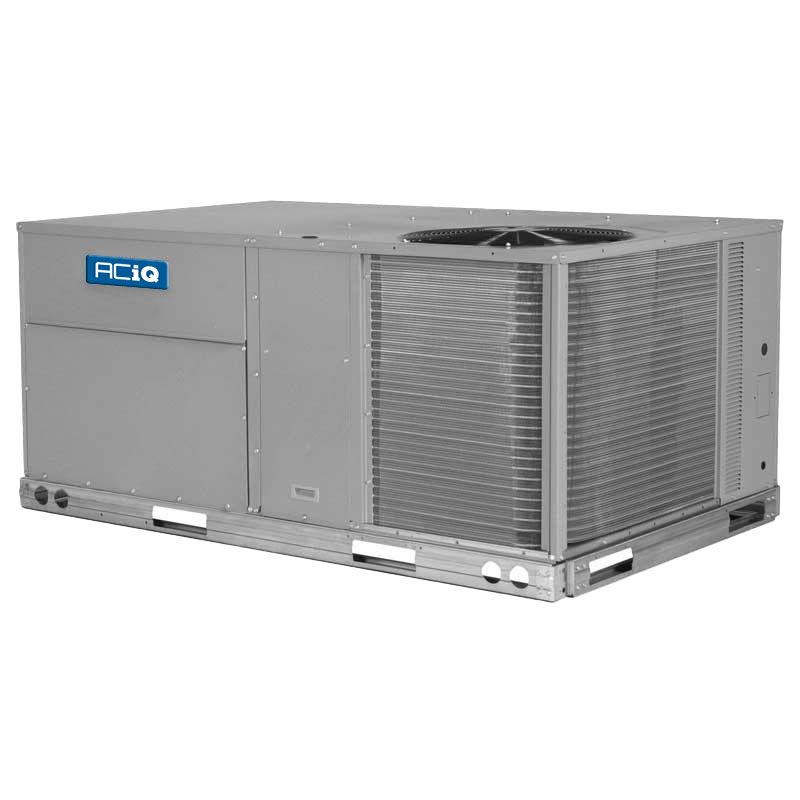

Aciq rhv090h02a0aaa light commercial packaged heat pump 7.5 ton 208/230v 3 phase

Product Description

The ACIQ RHV090H02A0AAA is a 7.5-ton packaged rooftop heat pump designed for commercial applications, providing efficient cooling and heating. This unit features patented X-Vane™ Fan Technology and a variable-speed ECM motor, enhancing energy efficiency and reducing maintenance. Ideal for offices, retail stores, and restaurants, it offers reliable year-round comfort with an 86,000 BTU cooling capacity and 90,000 BTU heating capacity.

• Direct drive X-Vane indoor fan system with ECM motors reduces moving parts and energy consumption.
• Features 11.2 EER and 15.0 IEER for enhanced energy efficiency.
• Equipped with high and low pressure switches, a filter drier, and 2-inch filters as standard.

Product Highlights

This 7.5-ton packaged heat pump offers two-stage heating and cooling, R410A refrigerant, and a scroll compressor for commercial comfort.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: RHV090H02A0AAA

Technical Specifications

• SKU: RHV090H02A0AAA
• Refrigerant Charge: Pre-Charged
• Weight: 805 lbs
• Brand: ACiQ
• Cooling BTU: 86,000 BTU
• Heating BTU: 90,000 BTU
• Drive Type: Direct
• Maximum CFM: 3000
• Decibel Level: 82 dBA
• Refrigerant: R410A
• EER: 11.2
• IEER: 15.0
• Condenser Stages: Two Stage
• Compressor Type: Scroll
• Electrical: 208/230v 3 Phase 60 Hz
• Tonnage: 7.5 Ton
• Burner Stages: Two
• AC Type: Commercial Packaged Units
• Application: Light Commercial Packaged Heat Pump
