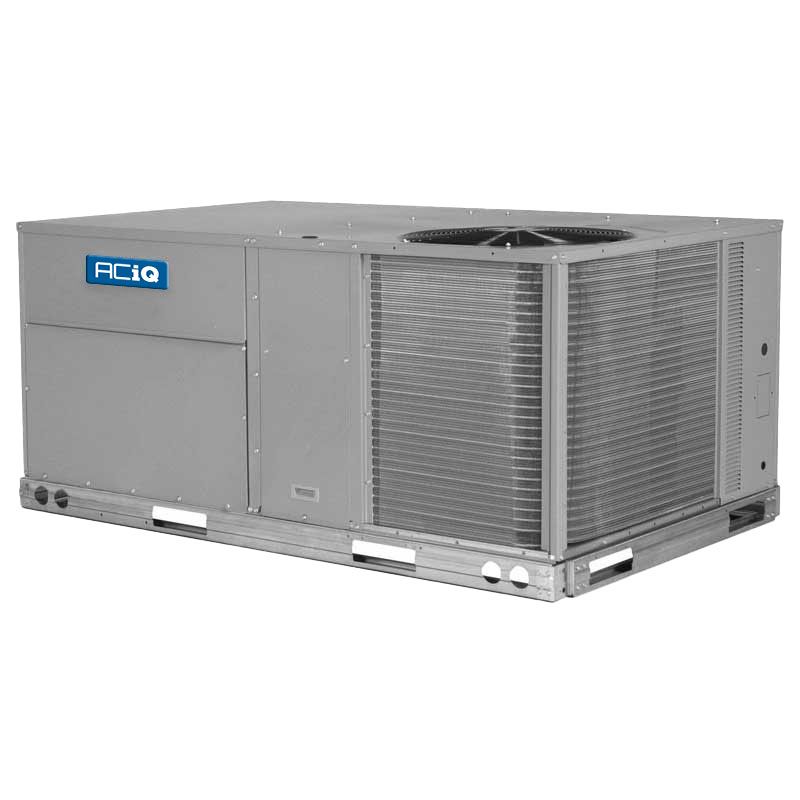

Aciq RGV102HF2A0AAA 8.5 ton gas/electric light commercial packaged unit high heat 208/230v 3 phase

Product Description

The ACIQ RGV102HF2A0AAA is an 8.5 Ton Gas/Electric Light Commercial Packaged Unit designed for efficient heating and cooling. This two-stage unit operates on 208/230V 3 Phase power, utilizing R410A refrigerant. It features a direct drive X-Vane indoor fan system and a scroll compressor, providing 98,000 BTU cooling and up to 224,000 BTU heating with 80% furnace efficiency. The unit is field-convertible to horizontal airflow, simplifying installation.

• Direct Drive Type for efficient operation
• Two Stage Condenser for optimized performance
• Certified for use with R410A refrigerant

Product Highlights

This packaged unit offers high heat capacity, two-stage operation, and a direct drive fan system for commercial applications.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: RGV102HF2A0AAA

Technical Specifications

• SKU: RGV102HF2A0AAA
• Refrigerant Charge: Pre-Charged
• Weight: 868 lbs
• Brand: ACIQ
• Furnace Efficiency: 80%
• Cooling BTU: 98,000 BTU
• Heating BTU: 224,000 BTU
• Drive Type: Direct
• Maximum CFM: 3400
• Decibel Level: 79 dBA
• Refrigerant: R410A
• EER: 11.2
• IEER: 15.0
• Condenser Stages: Two Stage
• Compressor Type: Scroll
• Input Voltage: 208/230V 3 Phase 60 Hz
• Tonnage: 8.5 Ton
• Burner Stages: Two
• Height: 49 3/8 inches
• Width: 88 1/8 inches
• Depth: 59 1/2 inches
