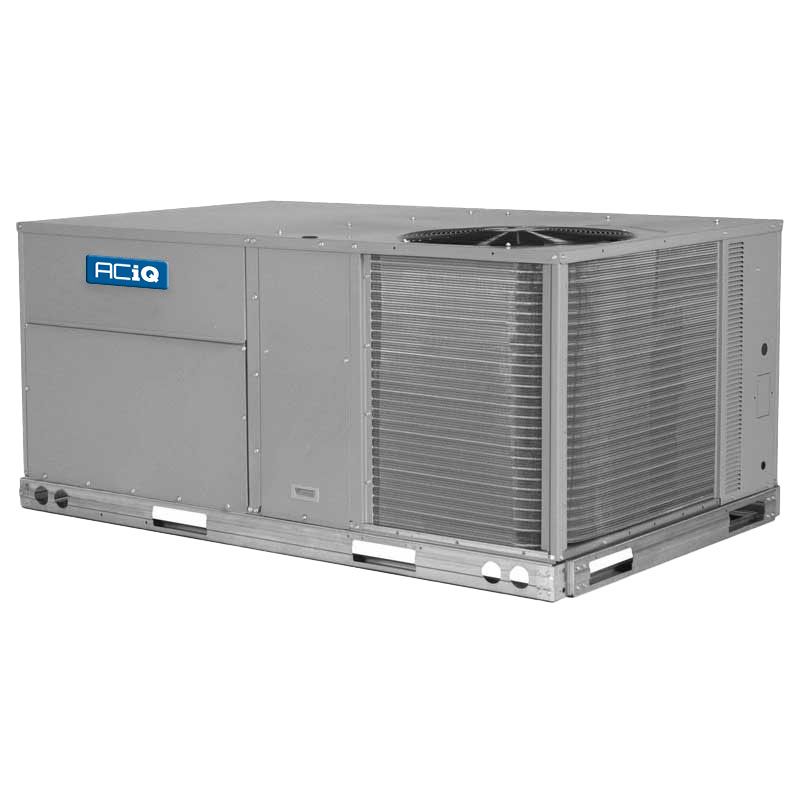

Aciq RAV150H02A0AAA 12.5 ton light commercial packaged air conditioner 208/230v 3 phase

Product Description

The ACIQ RAV150H02A0AAA is a 12.5-ton commercial packaged rooftop air conditioner designed for light commercial applications such as retail spaces, offices, and restaurants. Operating on 208/230V 3 Phase power, this unit delivers up to 133,000 Cooling BTU with a 15.2 IEER and 10.4 EER, utilizing environmentally friendly R-410A refrigerant. It features a two-stage condenser and scroll compressor for efficient and reliable cooling performance.

• Direct drive X-Vane indoor fan system with electrically commutated motors.
• Convertible between vertical and horizontal airflow for flexible installation.
• Built-in safety features including high/low pressure and freeze protection switches.

Product Highlights

This unit offers consistent cooling and long-term value with energy efficiency, durability, and easy serviceability for commercial building rooftop installations.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: RAV150H02A0AAA

Technical Specifications

• SKU: RAV150H02A0AAA
• Refrigerant Charge: Pre-Charged
• Brand: ACIQ
• Cooling Capacity: 133,000 BTU
• Fan Drive Type: Direct
• Maximum Airflow: 3750 CFM
• Noise Level: 79 Decibels
• Refrigerant Type: R410A
• EER: 10.4
• IEER: 15.2
• Condenser Stages: Two Stage
• Compressor Type: Scroll
• Input Voltage: 208/230V 3 Phase 60Hz
• Phase: Three Phase
• Cooling Tonnage: 12.5 Ton
