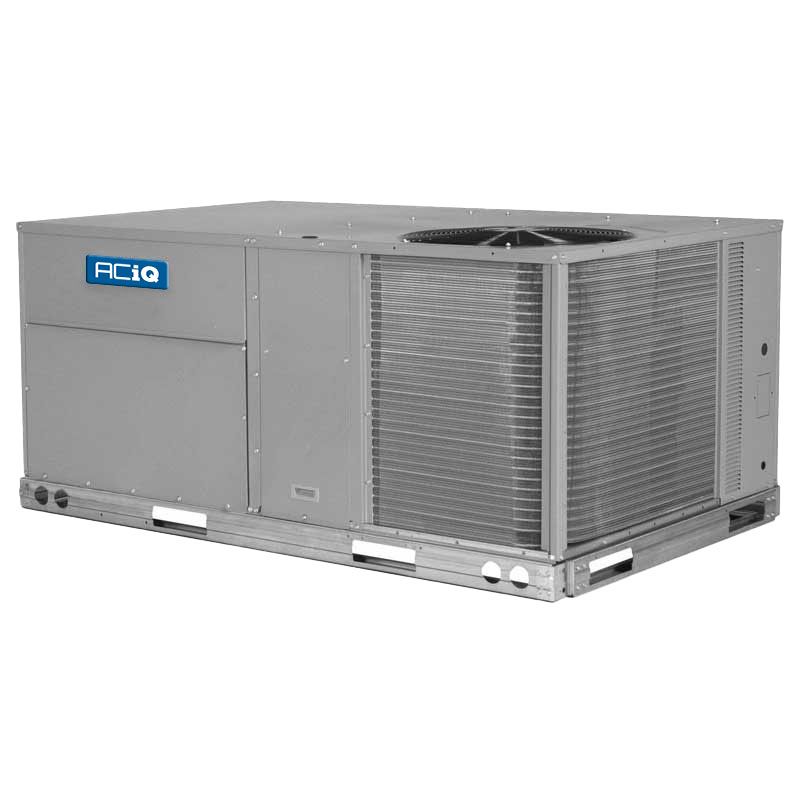

Aciq RAV102L02A0AAA Light Commercial Packaged Air Conditioner 8.5 Ton 460v 3 Phase-R410A

Product Description

The ACiQ RAV102L02A0AAA is an 8.5-ton commercial packaged rooftop air conditioner, engineered for dependable performance in light commercial applications. Designed with energy efficiency, durability, and easy serviceability in mind, this unit delivers consistent cooling and long-term value. It uses environmentally friendly R-410A refrigerant and features a scroll compressor.

• Direct Drive Type
• Two Stage Condenser
• Certified for use with R410A refrigerant

Product Highlights

This ACiQ air conditioner is suitable for rooftop installations in commercial buildings and is field convertible to horizontal airflow.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: RAV102L02A0AAA

Technical Specifications

• SKU: RAV102L02A0AAA
• Refrigerant Charge: Pre-Charged
• Brand/Manufacturer: ACiQ
• Cooling BTU: 98,000 BTU
• Drive Type: Direct
• Maximum CFM: 3400
• Decibel Level (dBA): 79 Decibels
• Refrigerant: R410A
• EER: 11.4
• IEER: 15.0
• Condenser Stages: Two Stage
• Compressor Type: Scroll
• Electrical: 460v 3 Phase 60 Hz
• Phase: Three Phase
• Tonnage: 8.5 Ton
• Voltage: 460V
• AC Type: Commercial Packaged Units
• For: Light Commercial Packaged Air Conditioner
