Aciq R92MSN0801716A / EVD5X31M17A 80,000 BTU 2.5 Ton Furnace and Coil System (Upflow/Downflow) EVD4X

Product Description

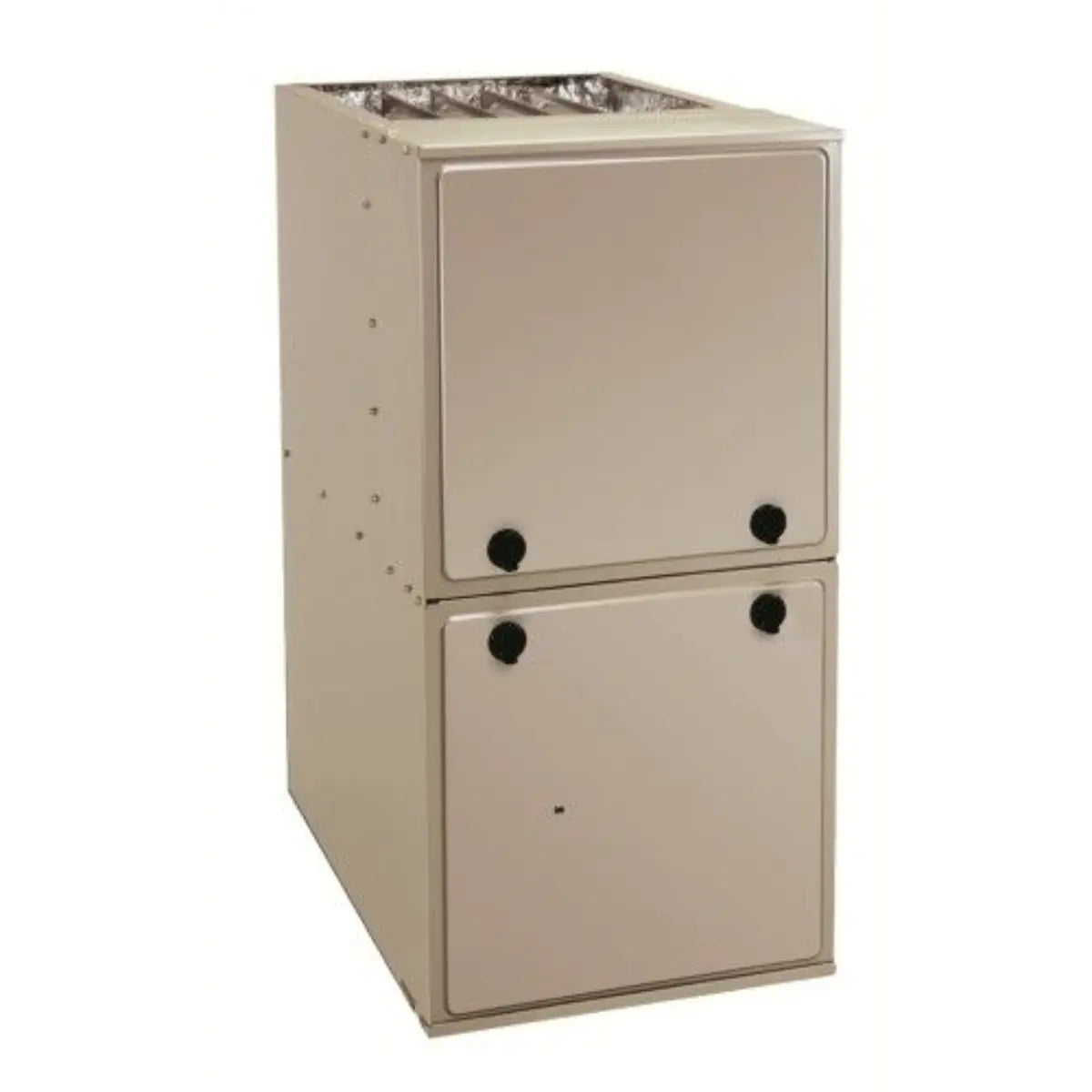

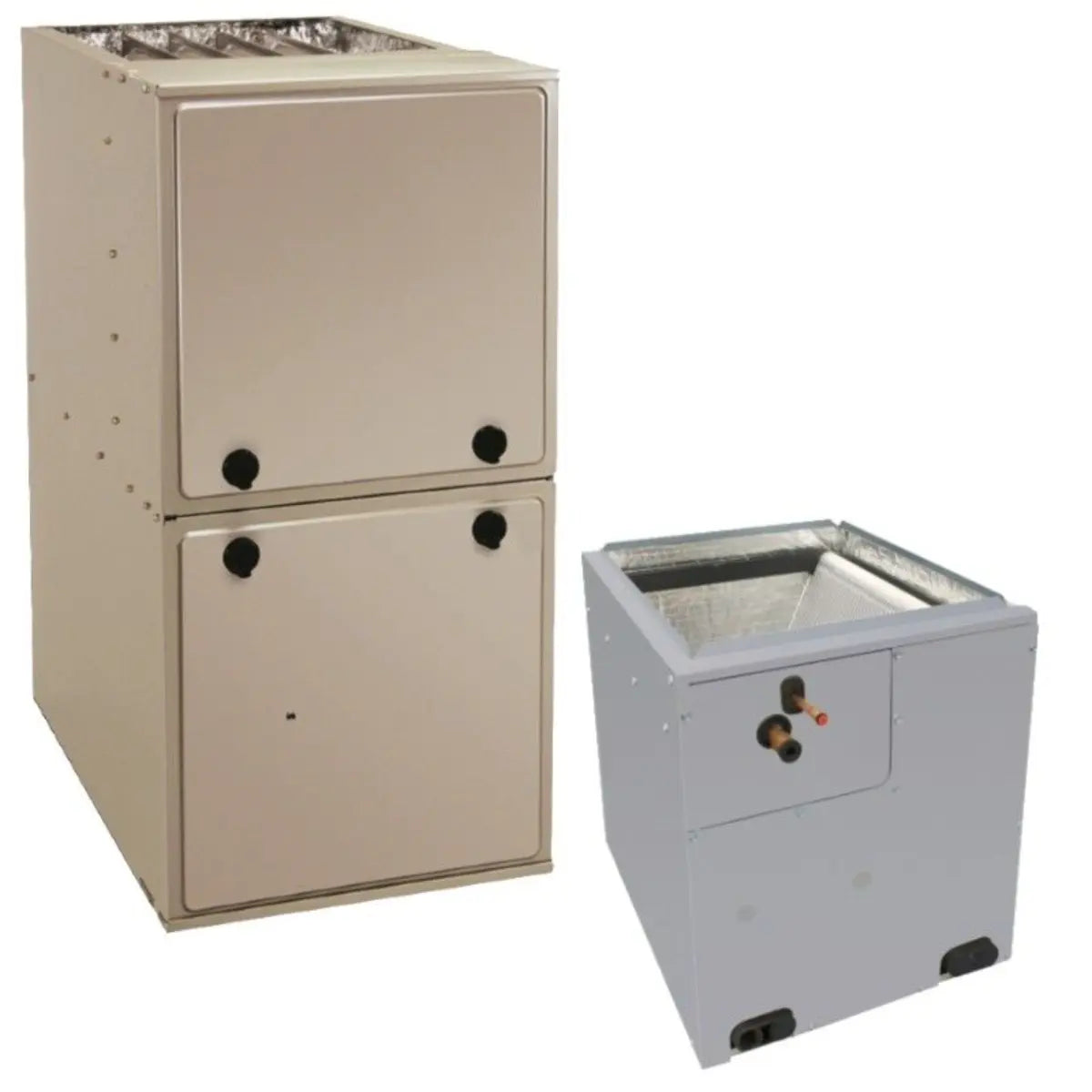

ACIQ R92MSN0801716A / EVD5X31M17A is a matched indoor furnace and evaporator coil system featuring an 80,000 BTU input, 92% AFUE single-stage natural gas furnace paired with a 2.5 ton vertical cased V-coil. The furnace is multi-positional (upflow/downflow/horizontal) with an 18-speed constant torque ECM blower and silicon nitride hot surface ignitor; the coil includes a factory-installed TXV, corrosion-resistant PBT drain pan, and R454B refrigerant compatibility.

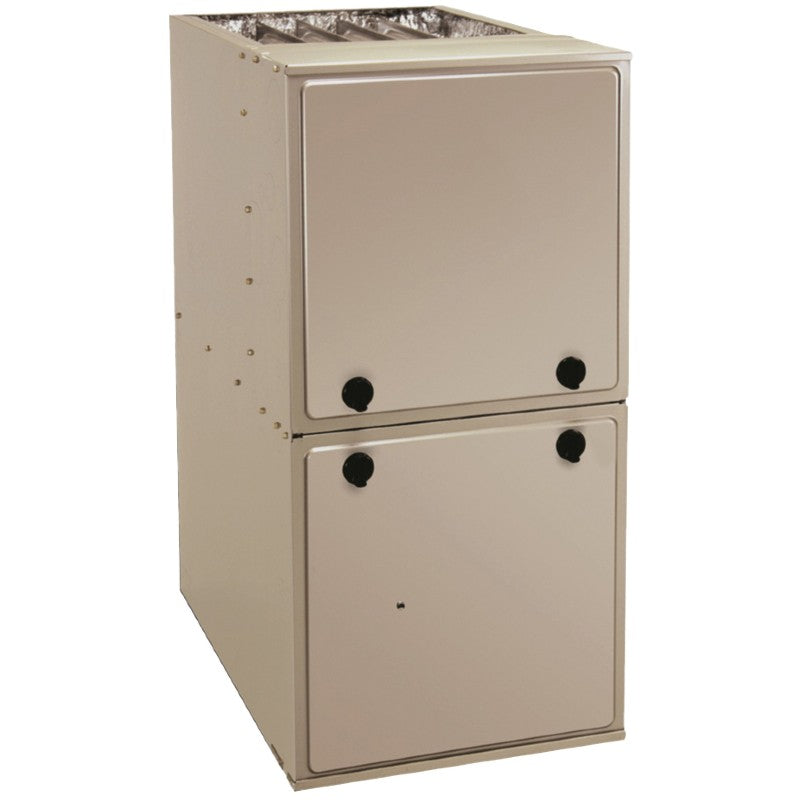

• Furnace: 80,000 BTU input; 92% AFUE; single-stage direct ignition with silicon nitride hot surface ignitor; 18-speed MCT ECM blower; 115V 1 phase 60 Hz; requires plastic/PVC flue venting.

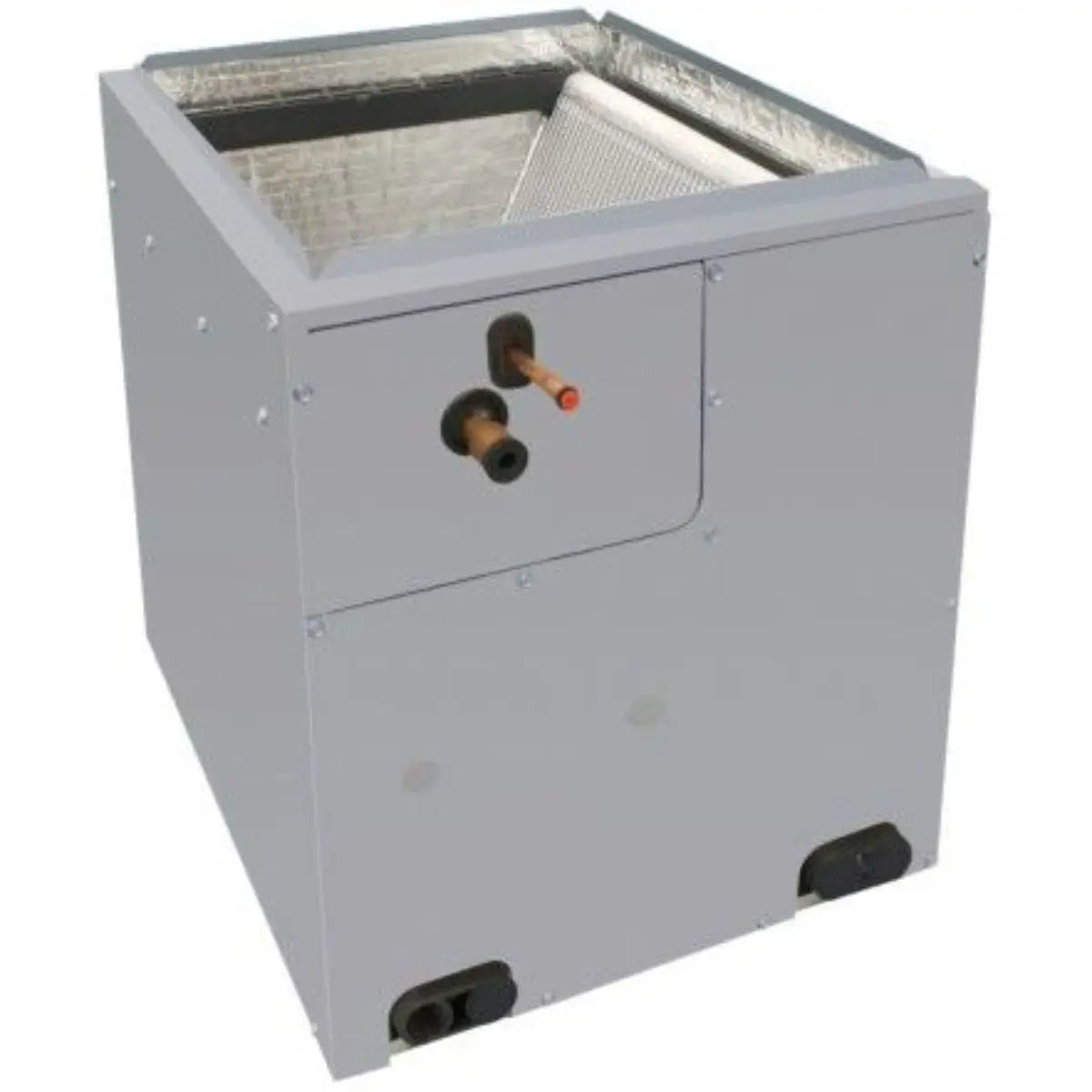

• Coil: 2.5 ton vertical cased V-coil; 17.5 in width; factory-installed TXV; PBT corrosion-resistant drain pan; sweat connections with 3/8 in liquid and 3/4 in suction lines; R454B refrigerant; UL listed.
• System compatibility: matched to retain existing outdoor condenser; multi-positional installation (upflow/downflow/horizontal).

Product Highlights

Matched 80,000 BTU 92% AFUE furnace with 2.5 ton vertical cased evaporator coil, factory TXV, R454B refrigerant, multi-positional installation.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R92MSN0801716A / EVD5X31M17A

Technical Specifications

• Brand: ACIQ
• MPN: R92MSN0801716A / EVD5X31M17A
• System Type: Furnace and Evaporator Coil System (matched set)
• Furnace Model: R92MSN0801716A
• Coil Model: EVD5X31M17A
• Furnace Input (BTU): 80,000 BTU
• Furnace Output (BTU): 73,600
• AFUE: 92%
• Burner Stages: Single
• Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Blower Motor: Multi 18-Speed Constant Torque (MCT) ECM
• Maximum CFM: 1600
• Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Fuel Type: Natural Gas
• Field Convertible To: Propane (with optional LP kit)
• Electrical: 115V 1 Phase 60 Hz
• Exhaust Flue Requirement: Plastic / PVC
• Furnace Dimensions (H x W x D): 35 in x 17.5 in x 29.5 in
• Furnace Weight (lbs): 142.00
• Coil Tonnage: 2.5 Ton
• Coil Dimensions (H x W x D): 25.8125 in x 17.5 in x 20.625 in
• Coil Width: 17.5 in
• Coil Refrigerant: R454B
• Coil Liquid Line: 3/8 in
• Coil Suction Line: 3/4 in
• Coil Connection: Sweat
• Coil Style: V-Coil (vertical cased)
• Coil Certification: UL Listed
• Coil Drain Pan Material: Polybutylene Terephthalate (PBT) - corrosion resistant
• Replaces / Equivalents: Coil replaces EVD4X; Carrier equivalent CVPVA1814XMC; Tempstar equivalent END4X18L14A; Bryant equivalent CNPVP1814ALA; Furnace carrier equivalent 59SC2D080E17--16; Tempstar equivalent R92ESN0801716A; Bryant equivalent 912SD48080E17
• Product ID: 212091
