Aciq R92MSN0801716A EAM5X19M17A 80,000 BTU 1.5 Ton 92% AFUE Furnace and Coil System (Multi-positional) R92MSN0801716A

Product Description

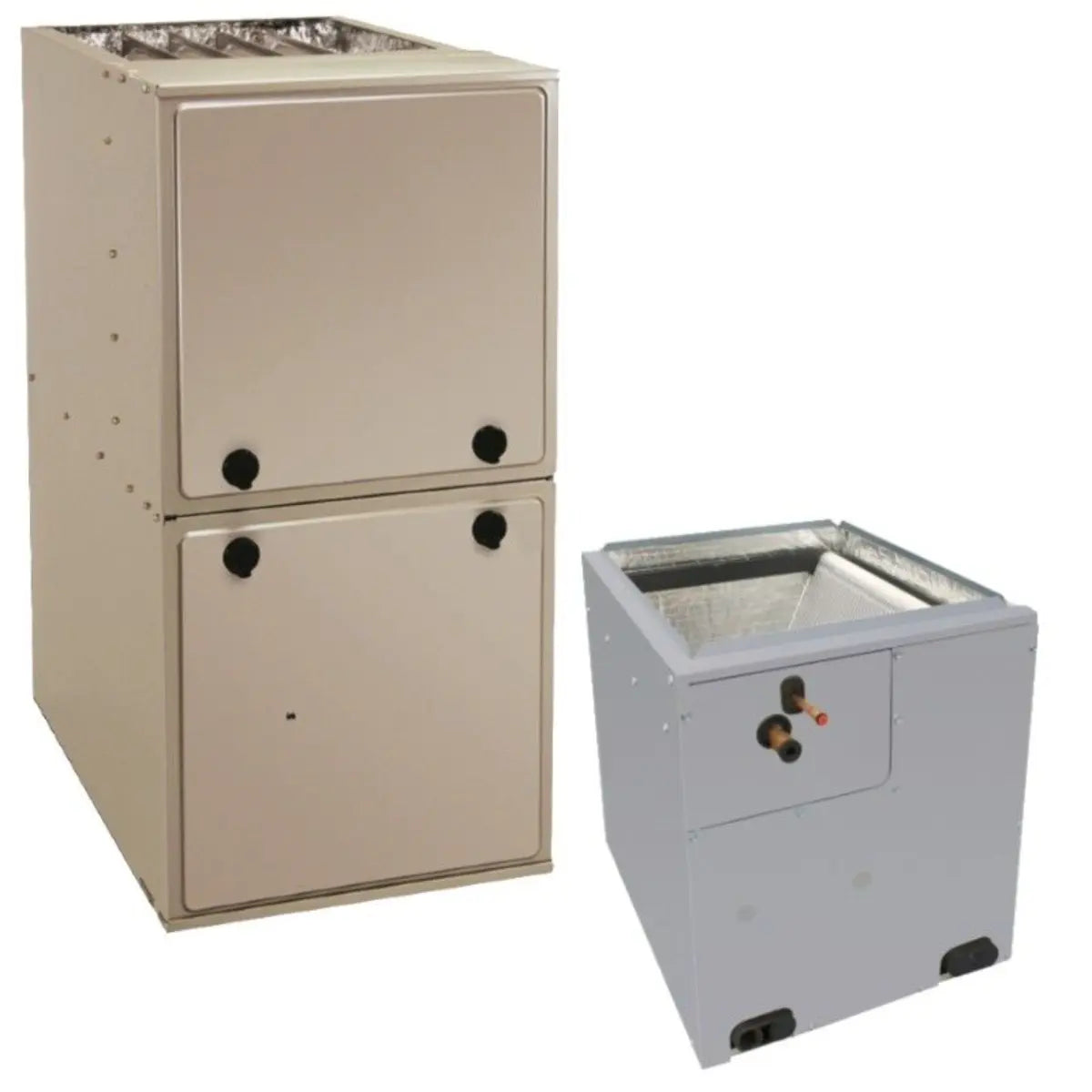

The Aciq R92MSN0801716A / EAM5X19M17A is a matched indoor heating and evaporator coil system that pairs an 80,000 BTU input, 92% AFUE single-stage natural gas furnace with a 1.5 ton multi-positional cased evaporator coil. The furnace features a multi-speed ECM blower, direct ignition with silicon nitride hot surface ignitor, 115 V electrical, and requires plastic/PVC flue venting. The coil includes a factory-installed TXV and sweat connections and is charged for R454B refrigerant.

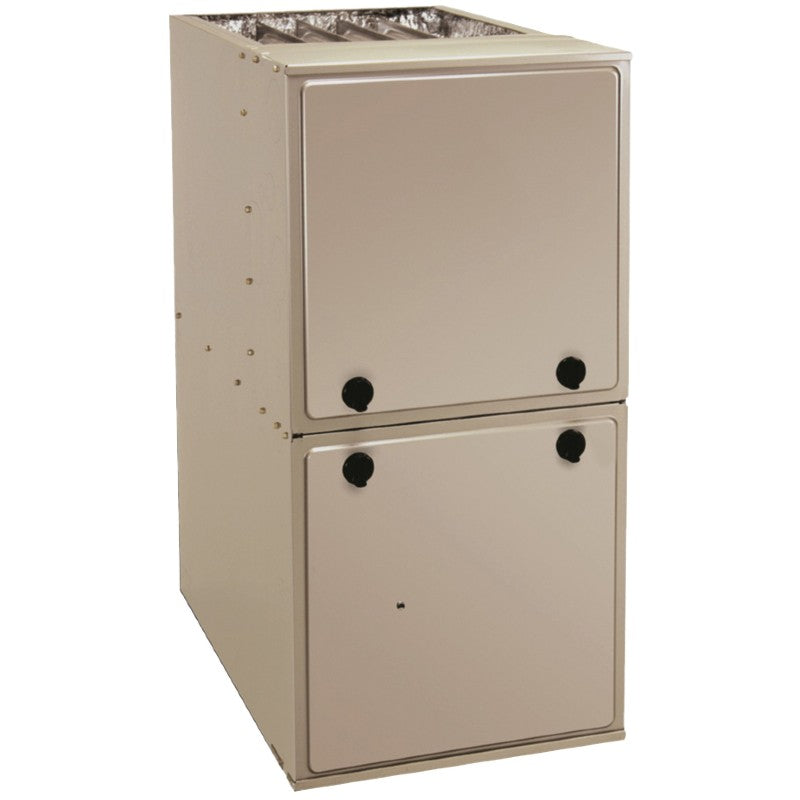

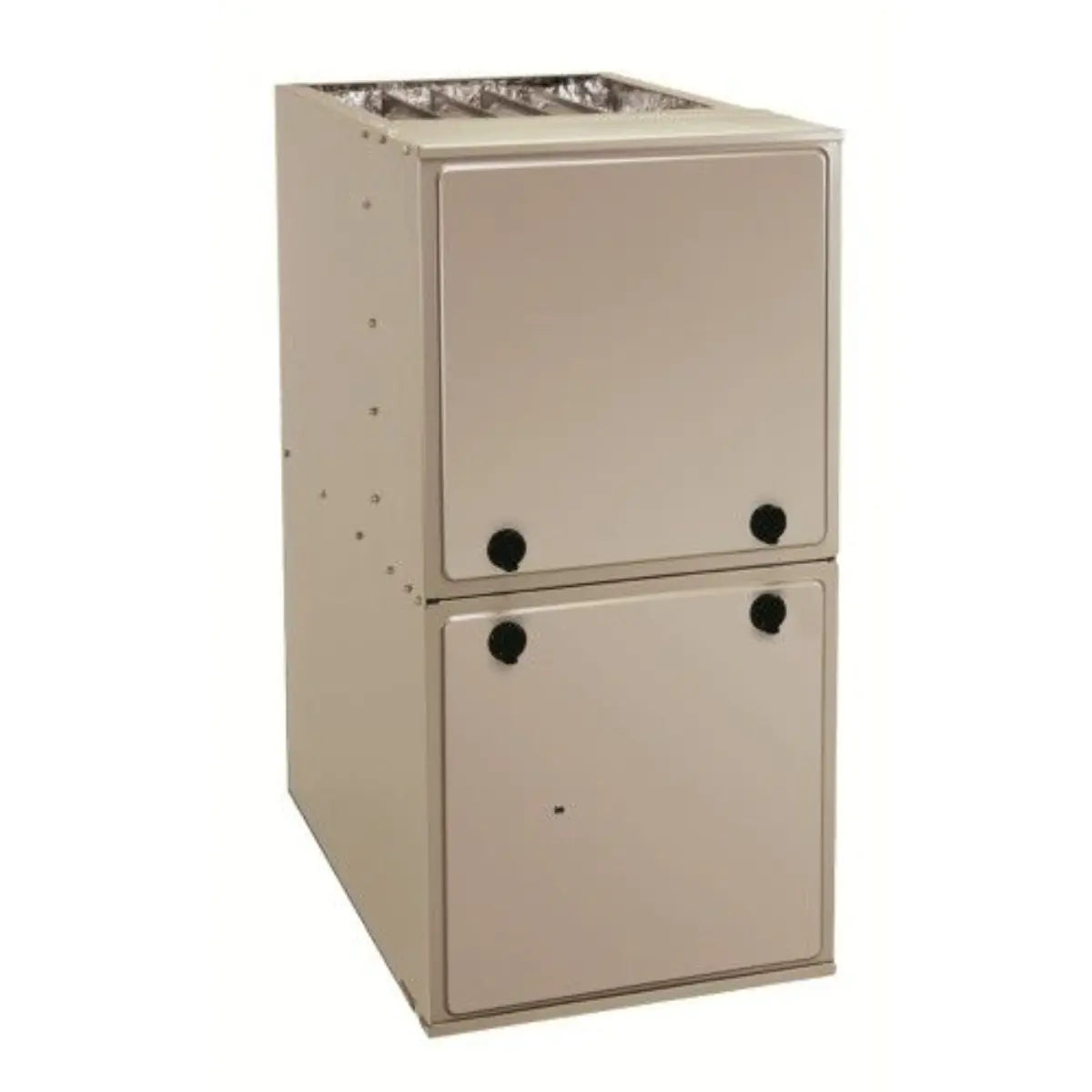

• Furnace: 80,000 BTU input (approx. 73,600 BTU output), 92% AFUE, single-stage burner, multi 18-speed constant torque ECM blower

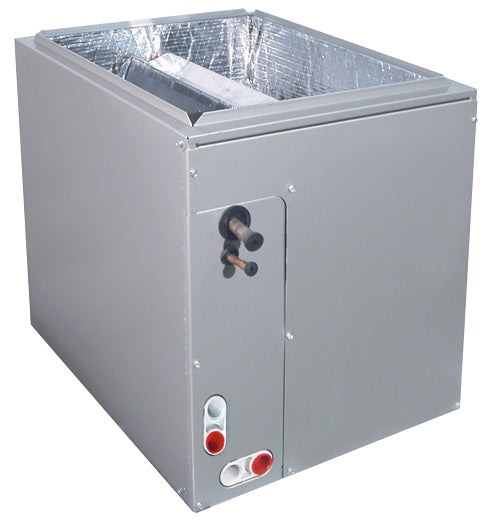

• Coil: 1.5 ton multi-positional cased A-coil with factory-installed TXV, 3/8 in liquid line, 5/8 in suction line, sweat connections, R454B
• Installation and service: multi-positional upflow/downflow/horizontal, 115 V 1 phase 60 Hz electrical, field-convertible to propane with optional LP kit

Product Highlights

Matched 80,000 BTU furnace and 1.5 ton coil; 92% AFUE; multi-positional; factory TXV; PVC flue requirement

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R92MSN0801716A / EAM5X19M17A

Technical Specifications

• Brand: Aciq
• System Model: R92MSN0801716A + EAM5X19M17A
• Product ID: 212068
• Furnace SKU: R92MSN0801716A
• Coil SKU: EAM5X19M17A
• Furnace Input BTU: 80,000 BTU
• Furnace Output BTU: 73,600 BTU (approx.)
• AFUE: 92%
• Coil Tonnage: 1.5 Ton
• Refrigerant: R454B
• Configuration: Multi-positional (upflow / downflow / horizontal)
• Blower Motor: Multi 18-speed constant torque (MCT) ECM
• Maximum CFM: 1600
• Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Fuel Type: Natural gas (field-convertible to propane with optional LP kit)
• Exhaust Flue Requirement: Plastic / PVC
• Input Voltage: 115 V, 1 Phase, 60 Hz
• Coil Connection: Sweat
• Coil Liquid Line Size: 3/8 in
• Coil Suction Line Size: 5/8 in
• Coil Feature: Factory-installed TXV kit
• Coil Certification: UL Listed
• Furnace Dimensions (H x W x D): 35 in x 17.5 in x 29.5 in
• Coil Dimensions (H x W x D): 25.8125 in x 17.5 in x 20.625 in
• Furnace Weight: 142 lb
• Coil Weight: 66.5 lb
• Furnace Burner Stages: Single
• Maximum Inlet Pressure: 13.6 in wc
• Connection Thread: 1/2 in NPT
• Horsepower: 0.5 HP
• Motor RPM: 1200
• Energy Star: U.S. South Only
• Safety Information: Proposition 65 Warning
