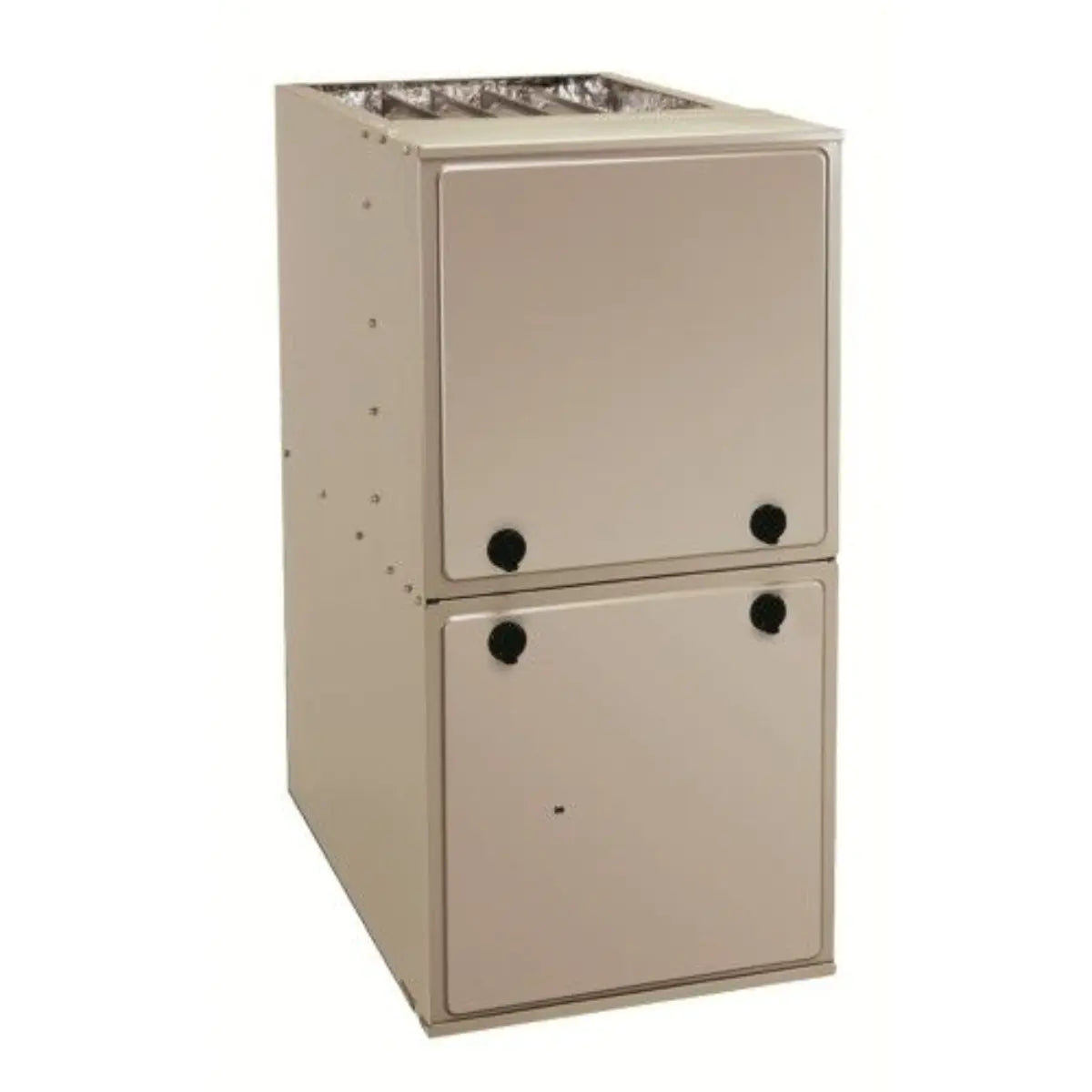

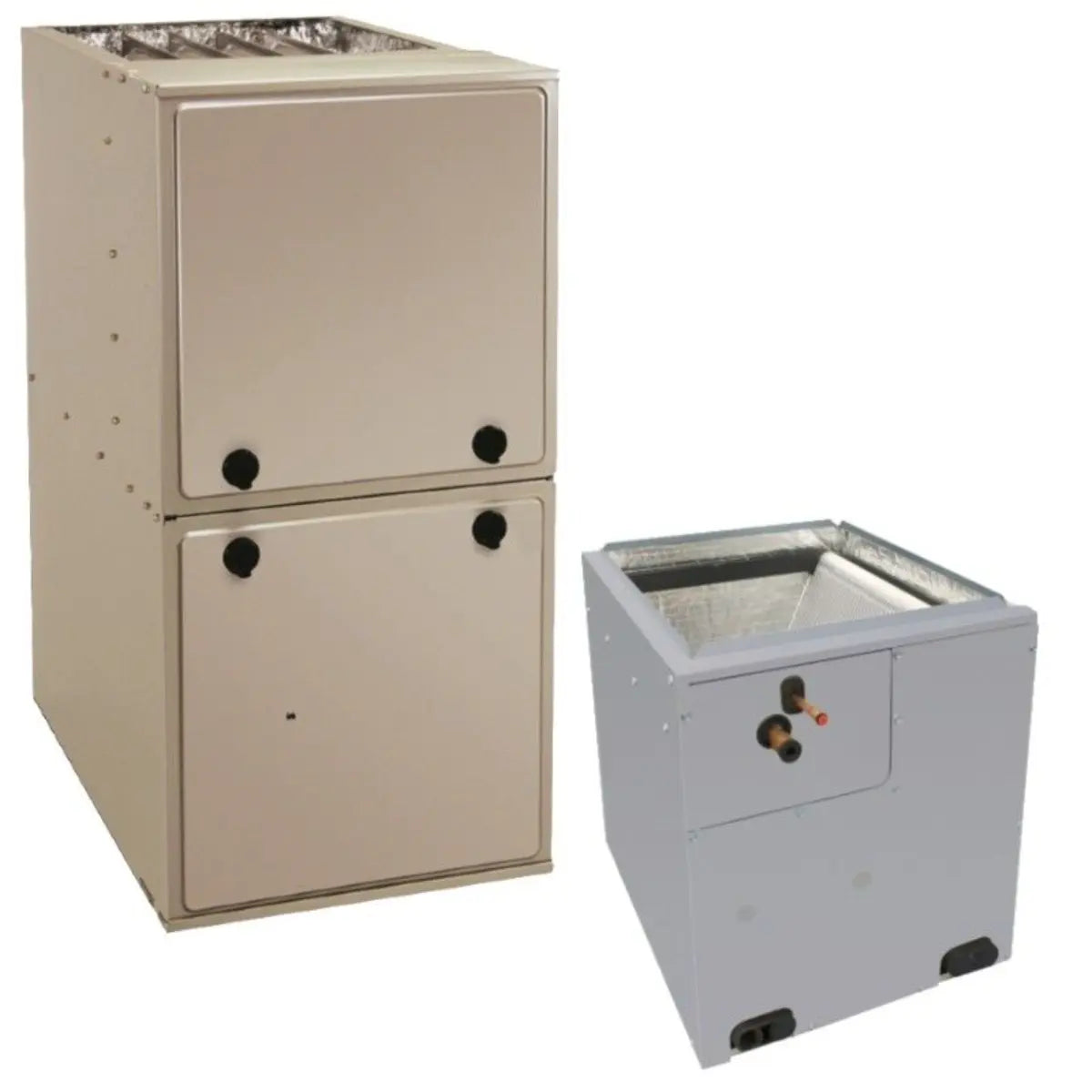

Aciq R92MSN0601714A / EVD5X31M17A 2.5 Ton 92% AFUE 60,000 BTU Furnace and Coil System (17.5 in) EVD4X

Product Description

Aciq R92MSN0601714A / EVD5X31M17A is a matched 2.5 ton furnace and evaporator coil system that pairs a 60,000 BTU, 92% AFUE single-stage natural gas furnace with a 2.5 ton vertical cased V-coil rated for R454B. The furnace is multi-positional with a multi-speed ECM blower and silicon nitride hot surface ignitor; the coil features a factory-installed TXV, fully insulated casing, and a corrosion-resistant PBT drain pan.

• Furnace: 60,000 BTU, 92% AFUE, single-stage burner, multi-positional (upflow/downflow/horizontal) with multi-speed ECM blower
• Coil: 2.5 ton vertical cased V-coil (17.5 in width) with factory-installed TXV, sweat connections, and R454B refrigerant compatibility
• Electrical & service: 115 V, 1 phase, 60 Hz electrical; furnace requires plastic/PVC flue venting; field-convertible to propane with optional LP kit

Product Highlights

Matched 2.5 ton furnace and cased V-coil system for R454B, multi-positional installation, factory TXV, multi-speed ECM blower.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R92MSN0601714A / EVD5X31M17A

Technical Specifications

• Brand: ACIQ
• Model / MPN: R92MSN0601714A / EVD5X31M17A
• System Tonnage: 2.5 Ton
• Furnace Heating BTU: 60,000
• Furnace Output (BTU): 55,200
• AFUE: 92%
• Burner Stages: Single
• Blower Motor: Multi-speed ECM
• Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Fuel Type: Natural Gas (field-convertible to Propane with optional LP kit)
• Ignition Type: Silicon nitride hot surface ignitor
• Input Voltage: 115 V, 1 Phase, 60 Hz
• Exhaust Flue Requirement: Plastic / PVC
• Coil Model: EVD5X31M17A
• Coil Tonnage: 2.5 Ton
• Coil Width: 17.5 in
• Coil Height: 25 13/16 in
• Coil Depth: 20 5/8 in
• Coil Style: Vertical cased V-coil
• Coil Connection: Sweat
• Coil Refrigerant: R454B
• Coil Liquid Line: 3/8 in
• Coil Suction Line: 3/4 in
• Coil Features: Factory-installed TXV kit; fully insulated cased V-coil; corrosion-resistant PBT drain pan
• Furnace Dimensions (H x W x D): 35 in x 17.5 in x 29.5 in
• Furnace Weight: 136 lb
• Coil Weight: 46 lb
• Certifications: UL Listed
• Replaces / Equivalent: Coil replaces EVD4X; Carrier CVPVA1814XMC; Tempstar END4X18L14A; Bryant CNPVP1814ALA
