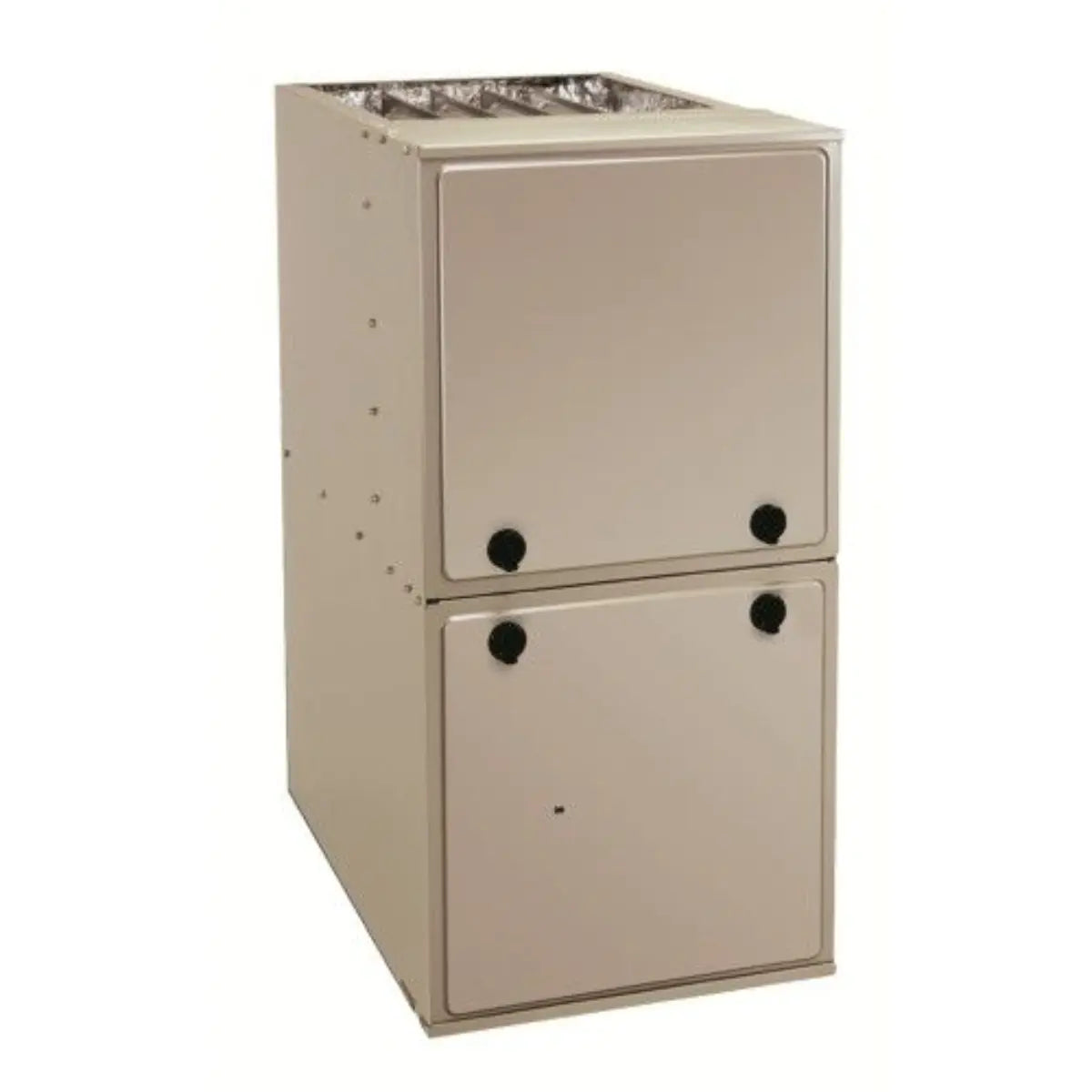

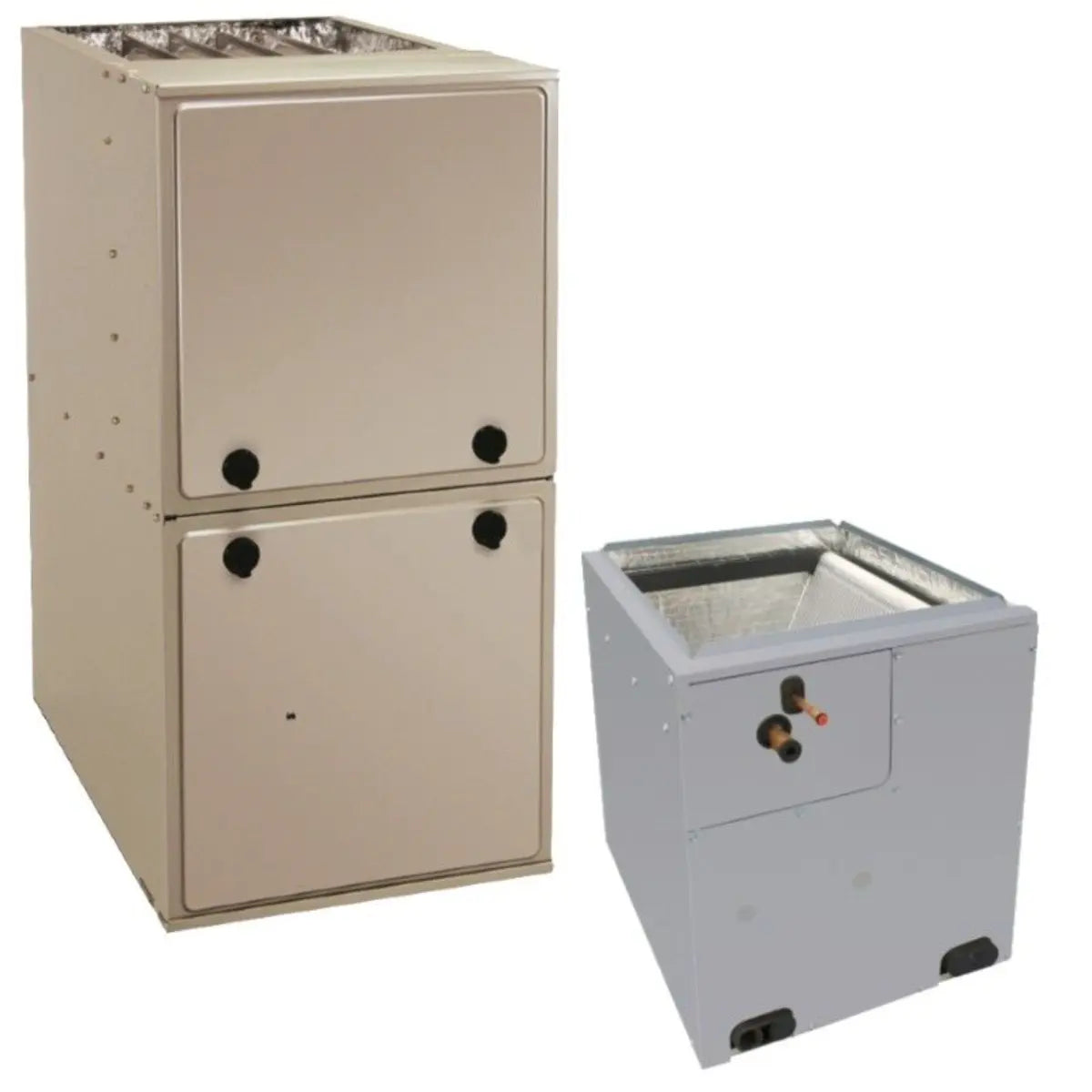

Aciq R92MSN0601714A/EAM5X19M17A 60,000 BTU 92% AFUE Furnace and Coil System 1.5 Ton (Multi-Positional) EAM4X19L17A

Product Description

Aciq R92MSN0601714A / EAM5X19M17A is a matched furnace and evaporator coil system combining a 60,000 BTU, 92% AFUE single-stage natural gas furnace with a 1.5 ton multi-positional cased evaporator coil. The furnace provides multi-speed ECM blower operation, direct ignition with a silicon nitride hot surface ignitor, 115 V 1 phase electrical, and field-convertible fuel capability; the coil is sweat-connected, factory-equipped with a TXV, and uses R454B refrigerant.

• 60,000 BTU input, 92% AFUE single-stage furnace; multi-positional (upflow/downflow/horizontal) with multi-speed ECM blower.
• Direct ignition with silicon nitride hot surface ignitor; 115 V, 1 phase, 60 Hz electrical; field-convertible to propane with optional LP kit; requires plastic/PVC flue.

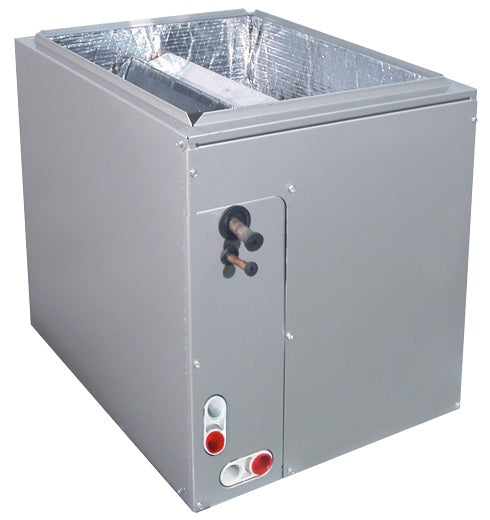

• 1.5 ton cased evaporator coil using R454B refrigerant with factory-installed TXV; sweat connections, liquid line 3/8", suction line 5/8", UL listed.

Product Highlights

Matched 60,000 BTU 92% AFUE furnace (R92MSN0601714A) with 1.5 ton R454B evaporator coil (EAM5X19M17A); factory TXV.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R92MSN0601714A / EAM5X19M17A

Technical Specifications

• Brand: Aciq
• Model / MPN: R92MSN0601714A / EAM5X19M17A
• Product ID / System ID: 211849
• Heating Capacity (Input): 60,000 BTU
• AFUE: 92%
• Blower Motor: Multi-speed ECM
• Configuration: Upflow/Downflow/Horizontal (multi-positional)
• Burner Stages: Single-stage
• Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Fuel Type: Natural Gas (field-convertible to Propane with optional LP kit)
• Exhaust Flue Requirement: Plastic / PVC
• Input Voltage: 115 V, 1 Phase, 60 Hz
• Furnace Dimensions (W x H x D): 17.5" x 35" x 29.5"
• Furnace Weight: 136 lb
• Coil Tonnage: 1.5 Ton
• Coil Refrigerant: R454B
• Coil Connection Type: Sweat
• Coil Liquid Line: 3/8"
• Coil Suction Line: 5/8"
• Coil Style: A-Coil (cased evaporator)
• Coil Certification: UL Listed
• Coil Dimensions (H x W x D): 25 13/16" x 17 1/2" x 20 5/8"
• Coil Weight: 66.5 lb
• Factory Features: Factory-installed TXV kit
• Equivalent Models: Carrier CAPMP1814ALA; Tempstar EAM4X18L14A; Bryant CAPMP1814ALA
• Coil Replaces: EAM4X19L17A
• Energy Star: U.S. South Only
• Ultra Low NOx Compliance: Not compliant
• Product Features: New Refrigerant Compliant
