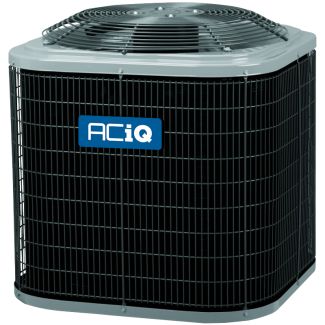

ACIQ R5H5S42AKAAA 3.5 Ton 14.3 SEER2 Heat Pump Condenser - R454B Single Stage

Product Description

The ACIQ 3.5 Ton 14.3 SEER2 Heat Pump Condenser with MPN R5H5S42AKAAA is a reliable single-stage cooling and heating solution. This unit operates efficiently with a SEER2 rating of 14.3 and uses R454B refrigerant, making it compliant with new environmental standards. Ideal for residential or small commercial use, this heat pump condenser can provide both heating and cooling performance up to forty-two thousand BTU, meeting various climate conditions effectively.

• Standard Efficiency with R454B Refrigerant
• Single Stage Operation
• 10 Year Parts Limited Warranty

Product Highlights

Designed for effective heating and cooling, the ACIQ 3.5 Ton heat pump offers a durable build and quiet operation.

Product Information

Standard Information

• Brand: ACIQ
• Replaces: R4H5S

Technical Specifications

• Refrigerant Charge: 15'
• Weight (in lbs): 223
• Cooling BTU: 42,000
• Heating BTU: 42,000
• Maximum CFM: 3000
• Decibel Level (dBA): 76
• Motor RPM: 1100
• Horsepower: 1/5 HP
• SEER2 (Efficiency): 14.3
• Condenser Stages: Single Stage
• Compressor Type: Scroll
• Liquid Valve Size: 3/8inch
• Suction Valve Size: 7/8inch
• Electrical: 208/230v 1Ph 60Hz
• Max Breaker Size: 40 Amps
• Min. Breaker Size: 24.9 Amps
• Tonnage: 3.5 Ton
• Height: 31 11/16inch
• Width: 31 3/16inch
• Depth: 31 3/16inch
• Warranty: 10 Year Parts Limited Warranty with Online Registration
