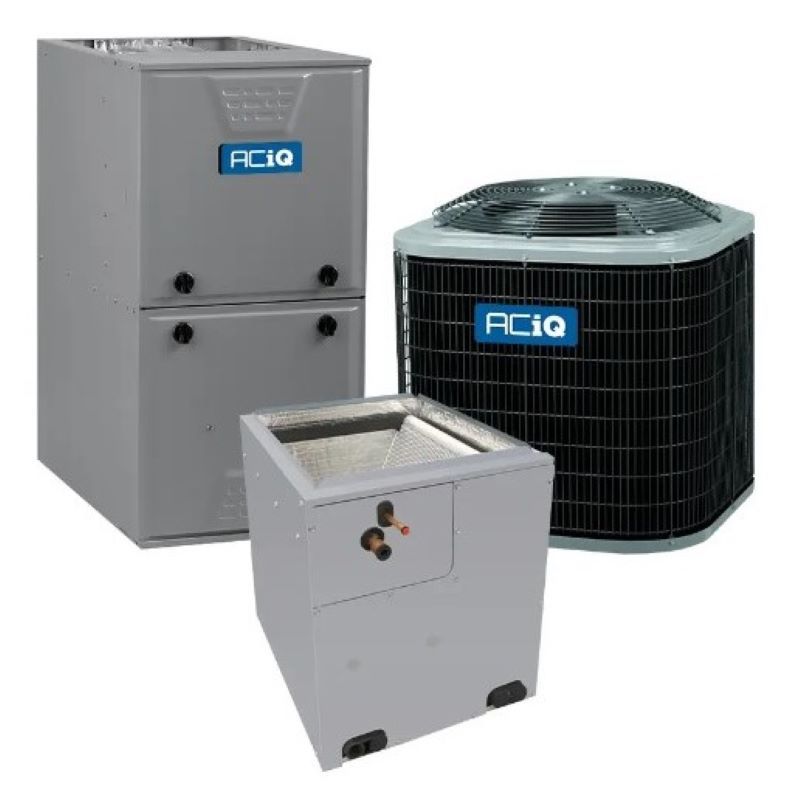

Aciq R5H5S24AKAAA / EVD5X31M17A / N96MSN0801716A Gas furnace and heat pump system 80,000 BTU (2 Ton pack) R4H5S24AKAAA

Product Description

The Aciq R5H5S24AKAAA / EVD5X31M17A / N96MSN0801716A is a matched dual-fuel system that combines a 2-ton heat pump condenser, a 2.5-ton vertical cased evaporator coil, and an 80,000 BTU multi-positional gas furnace. The heat pump is pre-charged with R454B for a 15-foot line set and uses a single-stage scroll compressor; the coil includes a factory-installed TXV; the furnace delivers 96% AFUE with an ECM multi-speed blower.

• Condenser: 2 Ton, 14.3 SEER2, R454B refrigerant, pre-charged for 15-foot line set, single-stage scroll compressor
• Evaporator coil: 2.5 Ton vertical cased V-coil with factory-installed TXV and PBT corrosion-resistant drain pan
• Furnace: 80,000 BTU input (approx. 76,800 BTU output), 96% AFUE, multi-positional (upflow/downflow/horizontal) with ECM multi-speed blower

Product Highlights

Matched dual-fuel system with R454B pre-charged condenser, factory TXV cased coil, and 96% AFUE multi-positional gas furnace

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5H5S24AKAAA / EVD5X31M17A / N96MSN0801716A

Technical Specifications

• Brand: ACiQ
• MPN: R5H5S24AKAAA / EVD5X31M17A / N96MSN0801716A
• Condenser SKU: R5H5S24AKAAA
• Condenser Tonnage: 2 Ton
• Condenser Cooling Capacity: 24,000 BTU
• Condenser SEER2: 14.3
• Condenser HSPF2: 7.5 - 7.8
• Condenser Refrigerant: R454B (A2L)
• Condenser Refrigerant Charge: Pre-charged for 15' line set
• Condenser Compressor Type: Scroll, single stage
• Condenser Electrical (Input Voltage): 208/230 V 1Ph 60 Hz
• Condenser Max Breaker: 20 Amps
• Condenser Dimensions (H x W x D): 35 1/16" x 31 3/16" x 31 3/16"
• Condenser Weight: 195.00 lbs
• Coil SKU: EVD5X31M17A
• Coil Tonnage: 2.5 Ton
• Coil Configuration: Vertical cased V-coil (upflow/downflow)
• Coil Features: Factory-installed TXV, PBT corrosion-resistant drain pan, fully insulated cased coil
• Coil Dimensions (H x W x D): 25 13/16" x 17 1/2" x 20 5/8"
• Coil Weight: 46.00 lbs
• Coil Refrigerant: R454B
• Furnace SKU: N96MSN0801716A
• Furnace Input BTU: 80,000 BTU (input)
• Furnace Output BTU: 76,800 BTU (approx.)
• Furnace AFUE: 96%
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Blower: ECM, multi-speed
• Furnace Dimensions (H x W x D): 35" x 17.5" x 29 1/2"
• Furnace Weight: 146.00 lbs
• Furnace Maximum CFM: 1665
• Fuel Type: Natural Gas (field-convertible to Propane with optional kit)
• System Refrigerant Pre-charge: Factory pre-charged for 15-foot line set
• Certifications: Energy Star (furnace), UL listed (coil)
• Replacement MPN: R4H5S24AKAAA
• Notes: System is a matched condenser, cased evaporator coil, and furnace package intended for residential installations
