Aciq R5H5S24AKAAA / EVD5X31M17A / N80MSN0701712A 2 Ton Heat Pump and 66,000 BTU Gas Furnace System (Multi-Positional)

Product Description

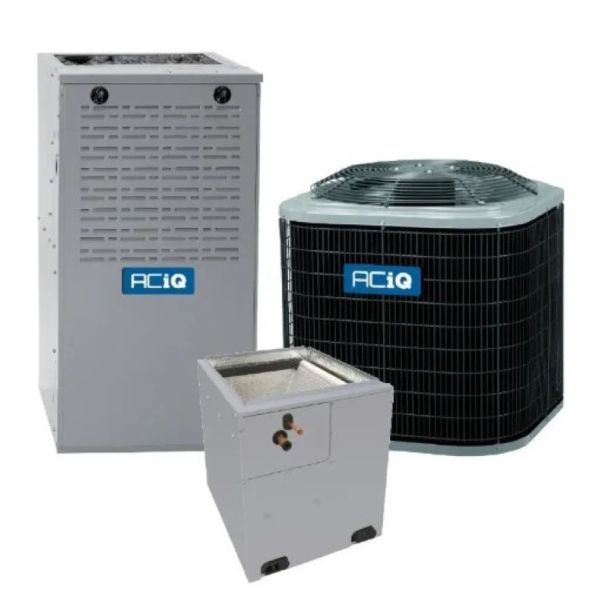

The ACIQ R5H5S24AKAAA / EVD5X31M17A / N80MSN0701712A is a matched three-piece HVAC package combining a 2 ton heat pump condenser, a 2.5 ton cased evaporator coil, and a 66,000 BTU 80% AFUE single-stage gas furnace. The heat pump is rated 14.3 SEER2 and HSPF2 7.5–7.8 and is factory pre-charged with R454B for a 15-foot line set. The furnace is multi-positional with a multi-speed ECM blower and hot surface ignitor.

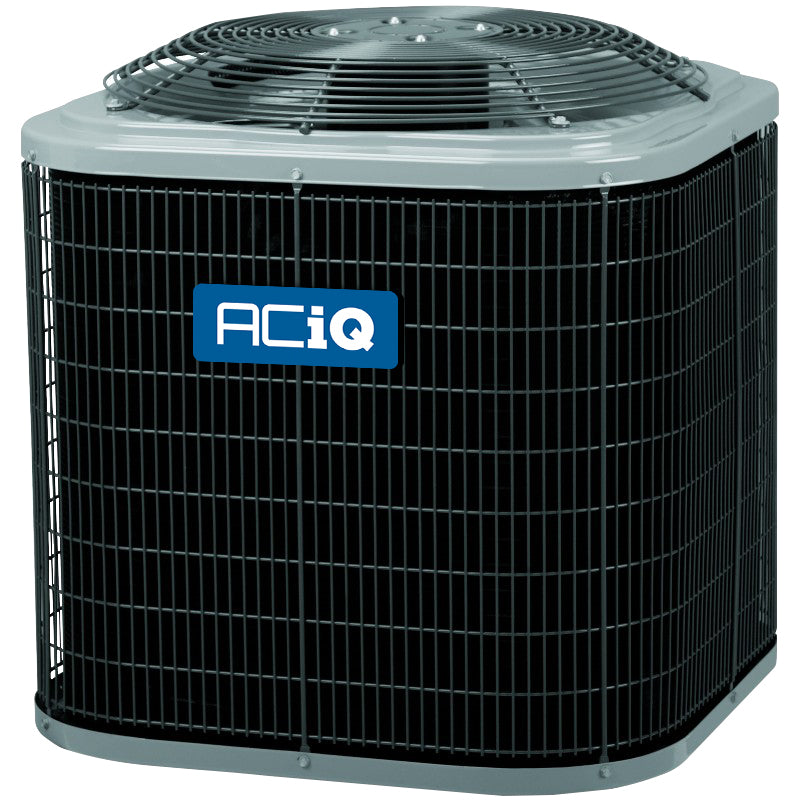

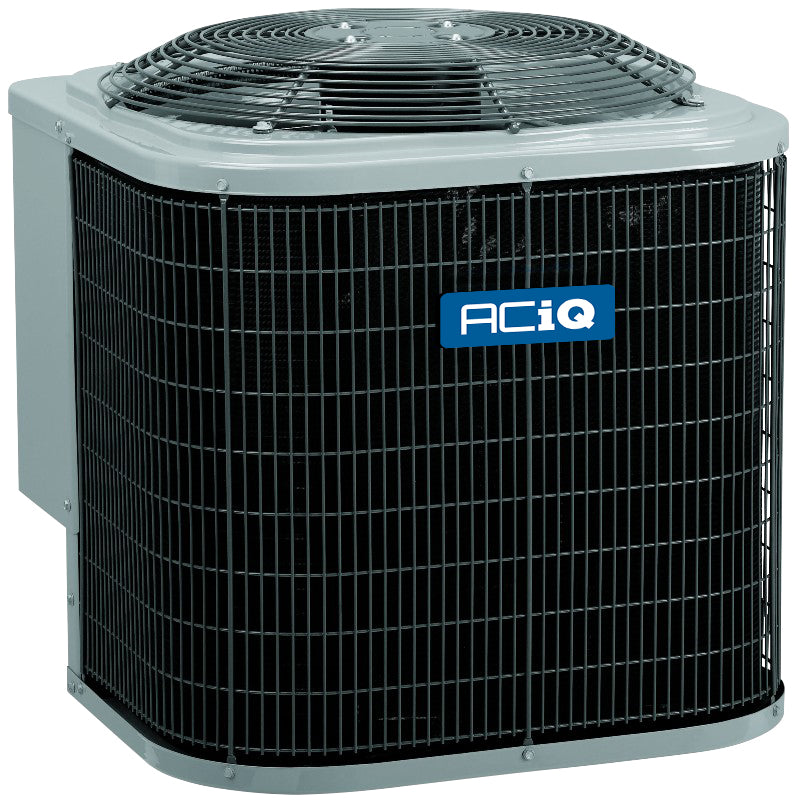

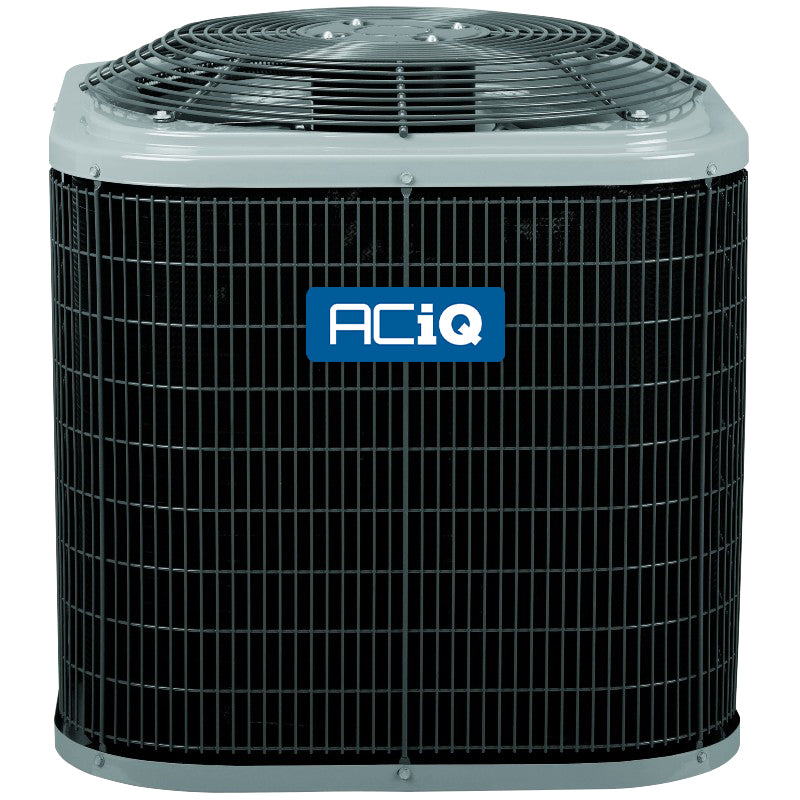

• Condenser: 2 ton, 14.3 SEER2, single-stage scroll compressor, factory pre-charged with R454B for 15 ft line set
• Coil: 2.5 ton vertical cased V-coil with factory-installed TXV, fully insulated cabinet, and PBT corrosion-resistant drain pan

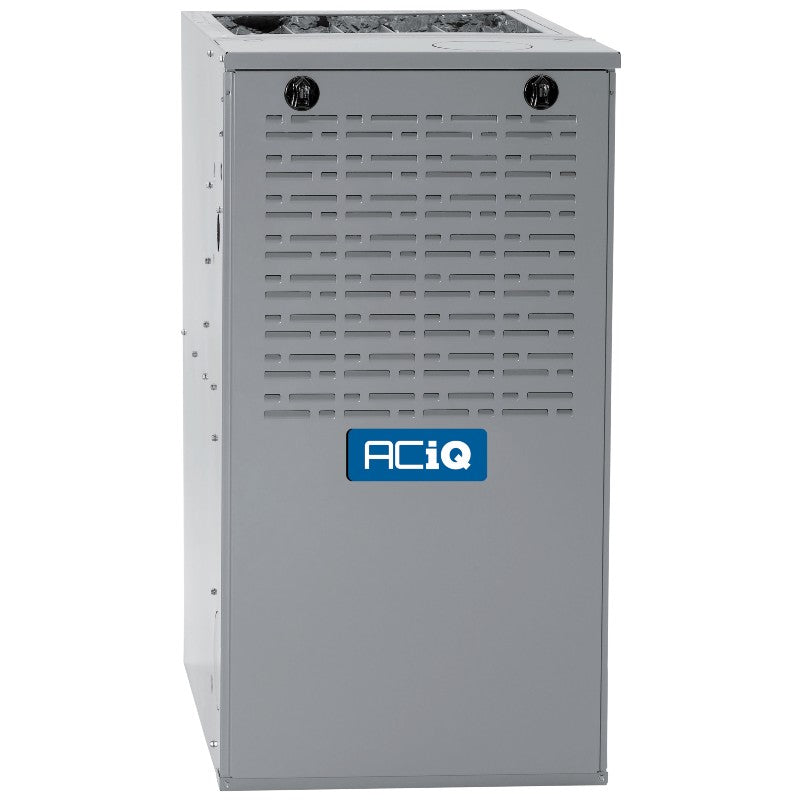

• Furnace: 66,000 BTU input, 80% AFUE, multi-positional design, multi-speed ECM blower, direct ignition with silicon nitride hot surface ignitor

Product Highlights

Matched 3-piece system: 2 ton R454B heat pump (14.3 SEER2), 2.5 ton cased coil with TXV, and 66,000 BTU 80% AFUE multi-positional gas furnace; condenser pre-charged for 15-foot line set

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5H5S24AKAAA / EVD5X31M17A / N80MSN0701712A

Technical Specifications

• Brand: ACIQ
• MPN / Models: R5H5S24AKAAA / EVD5X31M17A / N80MSN0701712A
• System Components: Condenser (R5H5S24AKAAA), Coil (EVD5X31M17A), Furnace (N80MSN0701712A)
• System Tonnage: 2 Ton condenser / 2.5 Ton coil / 66,000 BTU furnace
• Condenser SKU: R5H5S24AKAAA
• Condenser Tonnage: 2 Ton
• Condenser SEER2: 14.3
• Condenser HSPF2: 7.5 - 7.8
• Condenser Cooling Capacity: 24,000 BTU (2 Ton)
• Condenser Heating Capacity: 24,000 BTU (2 Ton)
• Condenser Compressor Type: Scroll (single stage)
• Condenser Refrigerant: R454B (A2L)
• Condenser Refrigerant Charge: Factory pre-charged for 15 ft line set
• Condenser Max CFM: 3500
• Condenser Decibel Level (dBA): 71
• Condenser Electrical: 208/230V 1Ph 60Hz
• Condenser Max Breaker Size: 20 Amps
• Condenser Dimensions (HxWxD): 35 1/16" x 31 3/16" x 31 3/16"
• Condenser Weight (lbs): 195
• Condenser Operating Temperature Range (Heating): -100F to 660F
• Condenser Operating Temperature Range (Cooling): 550F to 1250F
• Coil SKU: EVD5X31M17A
• Coil Tonnage: 2.5 Ton
• Coil Style: Vertical cased V-coil
• Coil Width: 17.5"
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Features: Factory-installed TXV; PBT corrosion-resistant drain pan; fully insulated cabinet
• Coil Dimensions (HxWxD): 25 13/16" x 17 1/2" x 20 5/8"
• Coil Weight (lbs): 46
• Furnace SKU: N80MSN0701712A
• Furnace Input BTU: 66,000
• Furnace Output BTU (approx): 52,800
• Furnace AFUE: 80%
• Furnace Blower: Multi-speed ECM
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Fuel Type: Natural Gas (field-convertible to Propane with kit)
• Furnace Ignition: Direct ignition with silicon nitride hot surface ignitor
• Furnace Electrical: 115V 1 Phase 60 Hz
• Furnace Max Breaker Size: 15 Amps
• Furnace Dimensions (HxWxD): 33 1/3" x 17 1/2" x 29"
• Furnace Weight (lbs): 120
• Exhaust Flue Requirement (Furnace): Metal
• Notes on Refrigerant Safety: R454B is classified A2L; condenser must be paired with compatible R454B coil/air handler equipped with leakage detection per product guidance
• AHRI Certificate (Furnace): 213146136
