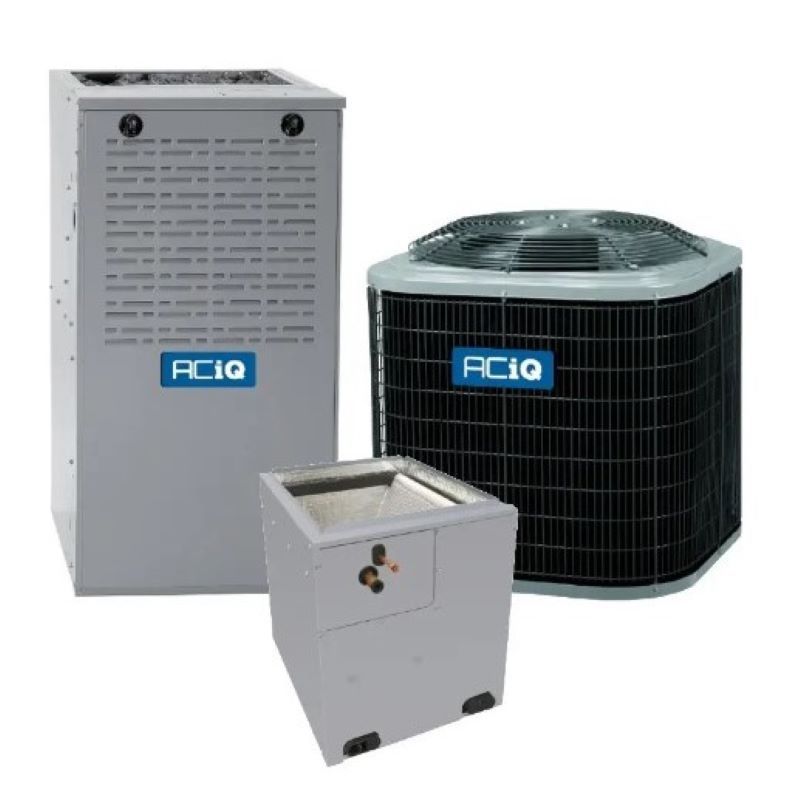

Aciq R5H5S24AKAAA / EVD5X31M17A / N80MSN0451412A 2 Ton 14.3 SEER2 80% AFUE 44,000 BTU Gas Furnace and Heat Pump System (Multi-Positional)

Product Description

Aciq R5H5S24AKAAA / EVD5X31M17A / N80MSN0451412A is a packaged residential dual-fuel HVAC system combining a 2 ton R454B heat pump condenser, a 2.5 ton cased evaporator coil, and a 44,000 BTU 80% AFUE multi-positional gas furnace. The condenser is rated 14.3 SEER2, pre-charged for a 15-foot line set and uses R454B (A2L) refrigerant; the coil includes a factory-installed TXV and the furnace features an MCT ECM blower and silicon nitride hot surface ignitor.

• Condenser: 2 Ton, 14.3 SEER2, scroll single-stage compressor, R454B (A2L), factory pre-charged for 15-foot line set; electrical 208/230 V 1Ph 60 Hz
• Evaporator coil: 2.5 Ton cased V-coil with factory TXV, upflow/downflow configuration, liquid line 3/8" and suction line 3/4", UL listed
• Furnace: 44,000 BTU input (35,200 BTU output at 80% AFUE), multi-positional, multi 18-speed constant torque (MCT) ECM blower (max 715 CFM), direct ignition with silicon nitride hot surface ignitor

Product Highlights

Dual-fuel package with 2 Ton R454B heat pump condenser, 2.5 Ton cased evaporator coil with TXV, and 44,000 BTU 80% AFUE multi-positional gas furnace.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5H5S24AKAAA / EVD5X31M17A / N80MSN0451412A

Technical Specifications

• Brand: ACIQ
• Model / MPN: R5H5S24AKAAA / EVD5X31M17A / N80MSN0451412A
• Package Tonnage: 2 Ton (condenser) / 2.5 Ton (coil)
• Condenser SEER2: 14.3
• Condenser Cooling Capacity: 24,000 BTU
• Condenser Heating Capacity: 24,000 BTU
• Condenser Compressor Type: Scroll, single stage
• Refrigerant: R454B (A2L)
• Pre-charged Line Set Length: 15'
• Condenser Electrical / Input Voltage: 208/230 V 1Ph 60 Hz
• Condenser Max Breaker Size: 20 Amps
• Condenser Min Breaker Size: 13.5 Amps
• Condenser Maximum CFM: 3500
• Condenser Decibel Level: 71 dBA
• Condenser HSPF2: 7.5 - 7.8
• Condenser Liquid Valve Size: 3/8"
• Condenser Suction Valve Size: 5/8"
• Evaporator Coil Type: Cased V-coil, factory TXV installed
• Evaporator Coil Tonnage: 2.5 Ton
• Evaporator Coil Configuration: Upflow / Downflow
• Evaporator Coil Connections: Sweat
• Evaporator Coil Liquid Line Size: 3/8"
• Evaporator Coil Suction Line Size: 3/4"
• Evaporator Coil Dimensions (H x W x D): 25 13/16" x 17 1/2" x 20 5/8"
• Furnace Input (BTU): 44,000
• Furnace Output (BTU): 35,200
• Furnace AFUE: 80%
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Blower Motor: Multi 18-Speed Constant Torque (MCT) ECM
• Furnace Maximum CFM: 715
• Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Fuel Type: Natural Gas (field convertible to Propane with optional LP kit)
• Furnace Dimensions (H x W x D): 33 1/3" x 14 3/16" x 29"
• Furnace Maximum Inlet Pressure: 13.6" wc
• Furnace Motor RPM: 1075
• Furnace Horsepower: 0.33 HP
• Furnace Max Breaker Size: 15 Amps
• Furnace Connection: 1/2" NPT
• Weights: Condenser 195 lbs; Coil 46 lbs; Furnace 108 lbs; Total package 349 lbs
• Certifications: AHRI certified (furnace); UL listed (coil)
