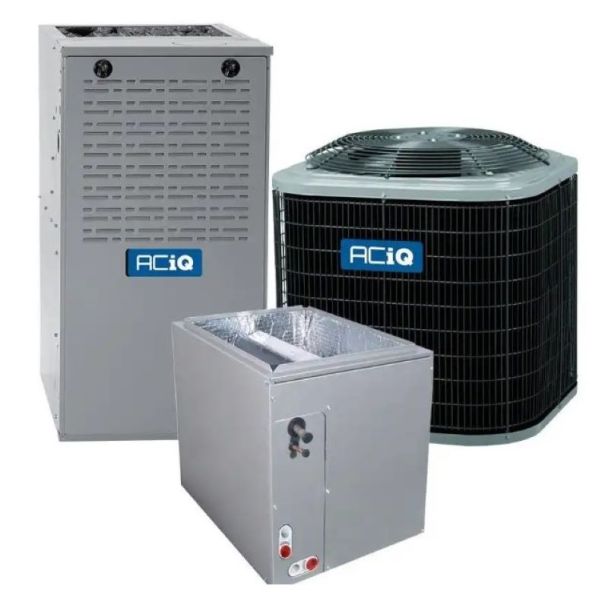

Aciq R5H5S24AKAAA / EAM5X30M17A / N80MSN0451412A 2 Ton 14.3 SEER2 Heat Pump and 44,000 BTU 80% AFUE Furnace System Multi-Positional

Product Description

ACiQ R5H5S24AKAAA / EAM5X30M17A / N80MSN0451412A is a factory-matched dual-fuel HVAC system that pairs a 2-ton 14.3 SEER2 R454B heat pump condenser with a 2.5-ton multi-positional evaporator coil and a 44,000 BTU input 80% AFUE multi-positional gas furnace. The condenser is factory pre-charged for a 15-foot line set and uses a single-stage scroll compressor. The furnace features an 18-speed MCT ECM blower, silicon nitride hot surface ignitor, and multi-positional installation capability.

• Factory pre-charged R454B heat pump condenser for 15-foot line set with single-stage scroll compressor
• 2.5-ton multi-positional evaporator coil with factory-installed TXV and 3/8" liquid / 3/4" suction connections
• 44,000 BTU input 80% AFUE multi-positional gas furnace with multi 18-speed MCT ECM blower and direct ignition

Product Highlights

Complete dual-fuel package: 2-ton heat pump condenser, 2.5-ton evaporator coil with TXV, and 44,000 BTU 80% AFUE furnace; multi-positional installations; factory pre-charged R454B refrigerant.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5H5S24AKAAA / EAM5X30M17A / N80MSN0451412A

Technical Specifications

• Brand: ACiQ
• Model / MPNs: R5H5S24AKAAA / EAM5X30M17A / N80MSN0451412A
• System Type: Dual-fuel heat pump and gas furnace system
• Condenser MPN: R5H5S24AKAAA
• Condenser Tonnage: 2 Ton
• SEER2: 14.3
• HSPF2: 7.5 - 7.8
• Refrigerant: R454B (A2L) - factory pre-charged for 15' line set
• Compressor Type: Scroll, single-stage
• Condenser Cooling BTU: 24,000
• Condenser Heating BTU: 24,000
• Condenser Max CFM: 3500
• Condenser Decibel Level: 71 dBA
• Condenser Electrical: 208/230V 1Ph 60Hz
• Condenser Weight: 195.00 lbs
• Condenser Max Breaker Size: 20 Amps
• Condenser Min Breaker Size: 13.5 Amps
• Condenser Liquid Valve Size: 3/8"
• Condenser Suction Valve Size: 5/8"
• Coil MPN: EAM5X30M17A
• Coil Tonnage: 2.5 Ton
• Coil Configuration: Multi-positional
• Coil Refrigerant: R454B
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Weight: 66.50 lbs
• Coil Dimensions (H x W x D): 25 13/16" x 17 1/2" x 20 5/8"
• Coil Features: Factory-installed TXV
• Furnace MPN: N80MSN0451412A
• Furnace Input BTU: 44,000
• Furnace Output BTU: 35,200
• Furnace AFUE: 80%
• Furnace Configuration: Upflow/Downflow/Horizontal (multi-positional)
• Furnace Weight: 108.00 lbs
• Furnace Blower: Multi 18-Speed Constant Torque (MCT) ECM Motor
• Furnace Ignition: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural Gas (field-convertible to Propane)
• Furnace Max CFM: 715
• AHRI Certificate: 213146204
• Notes on refrigerant safety: Contains R454B (A2L) — must be paired with compatible R454B indoor coil or air handler with leakage detection per safety standards
