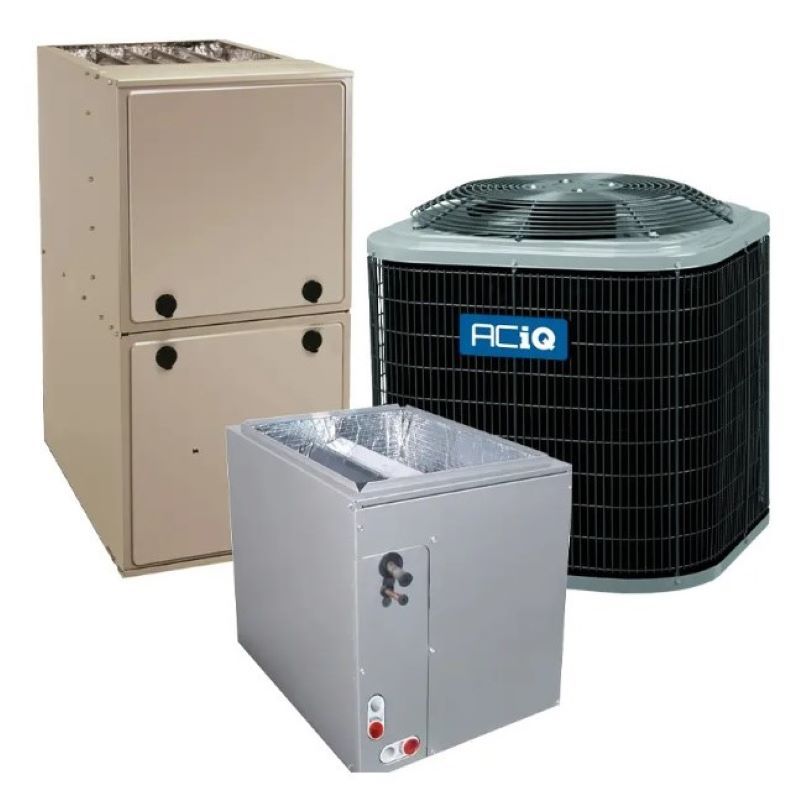

Aciq R5H5S24AKAAA 2 Ton Heat Pump and Gas Furnace System 80,000 BTU (Multi-Positional) EAM5X37M21A / R92MSN0801716A

Product Description

The ACIQ R5H5S24AKAAA / EAM5X37M21A / R92MSN0801716A is a packaged dual-fuel system combining a 2 ton R454B heat pump condenser, a 3 ton multi-positional evaporator coil, and an 80,000 BTU single-stage gas furnace. The heat pump is rated 14.3 SEER2 with a single-stage scroll compressor and is factory pre-charged for a 15-foot line set; the furnace provides 92% AFUE with a multi-speed ECM blower and silicon nitride hot surface ignitor.

• 2 ton heat pump condenser, 14.3 SEER2, single-stage scroll compressor, pre-charged for 15' line set
• 3 ton multi-positional evaporator coil with factory-installed TXV and sweat connections
• 80,000 BTU single-stage gas furnace, 92% AFUE, multi 18-speed constant torque blower, direct ignition

Product Highlights

Packaged dual-fuel system with R454B refrigerant, multi-positional coil, 14.3 SEER2 heat pump, and 92% AFUE 80,000 BTU furnace; factory pre-charged for 15-foot line set.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5H5S24AKAAA / EAM5X37M21A / R92MSN0801716A

Technical Specifications

• System MPNs: R5H5S24AKAAA / EAM5X37M21A / R92MSN0801716A
• System Type: Dual fuel heat pump and gas furnace system (condenser + coil + furnace)
• Refrigerant: R454B (A2L)
• Heat Pump Model: R5H5S24AKAAA
• Heat Pump Tonnage: 2 Ton
• Heat Pump SEER2: 14.3
• Heat Pump HSPF2: 7.5 - 7.8
• Heat Pump Cooling BTU: 24,000
• Heat Pump Heating BTU: 24,000
• Heat Pump Compressor Type: Scroll (single stage)
• Heat Pump Refrigerant Charge: Factory pre-charged for 15 ft line set
• Heat Pump Electrical: 208/230V 1Ph 60Hz
• Coil Model: EAM5X37M21A
• Coil Tonnage: 3 Ton
• Coil Configuration: Multi-positional (upflow/downflow/horizontal)
• Coil TXV: Factory-installed TXV kit
• Coil Connection: Sweat
• Coil Refrigerant: R454B
• Furnace Model: R92MSN0801716A
• Furnace Input BTU: 80,000
• Furnace Output BTU: 73,600 (92% AFUE)
• Furnace AFUE: 92%
• Furnace Configuration: Multi-positional (upflow/downflow/horizontal)
• Furnace Blower Motor: Multi 18-Speed Constant Torque (MCT)
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural gas (field-convertible to propane with optional LP kit)
• Furnace Electrical: 115V 1 Phase 60Hz
• Furnace Exhaust Flue Requirement: Plastic / PVC
• Component Weights (lbs): Condenser 195.00, Coil 86.00, Furnace 142.00
• Total Combined Weight (lbs): 423.00
• Condenser Max CFM: 3500
• Condenser Decibel Level (dBA): 71
• Condenser Max Breaker Size: 20 Amps
• Condenser Min Breaker Size: 13.5 Amps
• Coil Height: 29 3/4"
• Coil Width: 21"
• Coil Depth: 20 5/8"
• Furnace Height: 35"
• Furnace Width: 17 1/2"
• Furnace Depth: 29-1/2"
• Heat Pump Height: 35 1/16"
• Heat Pump Width: 31 3/16"
• Heat Pump Depth: 31 3/16"
• Notes on Safety/Compliance: R454B is A2L refrigerant; condenser must be paired with R454B-compatible coil/air handler with leakage detection per safety standards; furnace not Ultra Low NOx compliant
