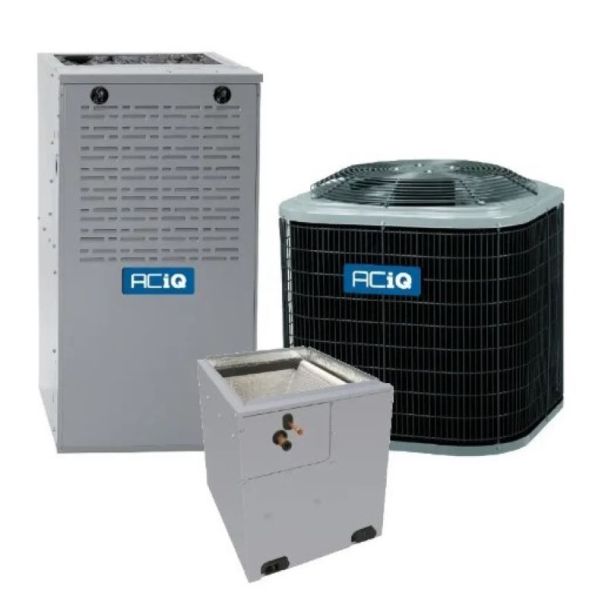

Aciq R5H5S18AKAAA Heat Pump Condenser and 44,000 BTU Gas Furnace System 1.5 Ton (Multi-Positional) EVD5X30M17A / N80MSN0451412A

Product Description

The Aciq R5H5S18AKAAA / EVD5X30M17A / N80MSN0451412A is a packaged residential HVAC system combining a 1.5 ton heat pump condenser, a 2.5 ton vertical cased evaporator coil, and a 44,000 BTU 80% AFUE multi-positional gas furnace. The condenser is pre-charged with R454B refrigerant, rated 14.3 SEER2 with a single-stage scroll compressor and 208/230 V 1 phase electrical. The coil includes a factory-installed TXV and corrosion-resistant PBT drain pan, and the furnace supports upflow, downflow, and horizontal installations.

• Condenser: 1.5 ton, 14.3 SEER2, single-stage scroll compressor, pre-charged for 15 ft line set with R454B
• Coil: 2.5 ton vertical cased V-coil with factory-installed TXV and corrosion-resistant PBT drain pan
• Furnace: 44,000 BTU input (approx. 35,200 BTU output at 80% AFUE), multi-positional configuration, direct ignition with hot surface ignitor

Product Highlights

Complete three-piece HVAC package with R454B pre-charged condenser, factory TXV coil, and multi-positional 44k BTU gas furnace.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5H5S18AKAAA / EVD5X30M17A / N80MSN0451412A

Technical Specifications

• Brand: Aciq
• Package model / MPN: R5H5S18AKAAA / EVD5X30M17A / N80MSN0451412A
• Package description: 1.5 Ton heat pump condenser + 2.5 Ton vertical cased evaporator coil + 44,000 BTU 80% AFUE furnace
• Condenser MPN: R5H5S18AKAAA
• Condenser tonnage: 1.5 Ton
• Condenser SEER2: 14.3
• Condenser HSPF2: 7.5 - 7.8
• Condenser refrigerant: R454B (A2L)
• Condenser compressor type: Scroll, single stage
• Condenser refrigerant charge: Pre-charged for 15' line set
• Condenser max CFM: 1900
• Condenser decibel level (dBA): 72
• Condenser weight: 167 lb
• Condenser dimensions (H x W x D): 31.7" x 31.2" x 31.2"
• Coil MPN: EVD5X30M17A
• Coil tonnage rating: 2.5 Ton
• Coil configuration: Vertical cased V-coil (upflow/downflow)
• Coil TXV: Factory-installed
• Coil drain pan material: Corrosion-resistant PBT
• Coil liquid line size: 3/8"
• Coil suction line size: 3/4"
• Coil weight: 39 lb
• Coil dimensions (H x W x D): 19 7/16" x 17 1/2" x 20 5/8"
• Furnace MPN: N80MSN0451412A
• Furnace input BTU: 44,000 BTU
• Furnace AFUE: 80%
• Furnace approximate output BTU: 35,200 BTU
• Furnace configuration: Multi-positional (upflow/downflow/horizontal)
• Furnace width: 14" (14 3/16")
• Furnace height: 33 1/3"
• Furnace depth: 29"
• Furnace weight: 108 lb
• Furnace fuel type: Natural gas (field-convertible to propane with optional kit)
• Furnace ignition: Direct ignition with silicon nitride hot surface ignitor
• Furnace max CFM: 715
• Electrical / Input Voltage: 208/230 V, 1 Phase, 60 Hz
• Condenser refrigerant safety note: R454B is an A2L refrigerant (mildly flammable) — condenser must be paired with R454B-compatible coil or air handler with leakage detection; 80% AFUE furnace requires metal flue venting
