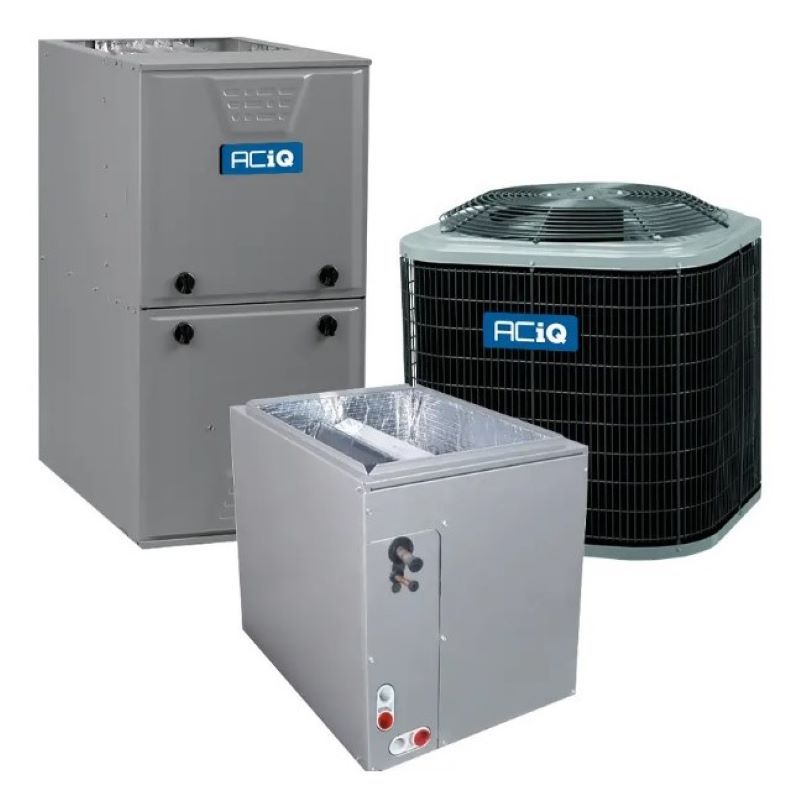

Aciq R5H5S18AKAAA heat pump and gas furnace system 80,000 BTU (1.5 Ton) EAM5X19M17A / N96MSN0801716A

Product Description

The ACIQ R5H5S18AKAAA / EAM5X19M17A / N96MSN0801716A is a matched 1.5 ton dual-fuel system that combines a R454B heat pump condenser, a multi-positional evaporator coil, and a 96% AFUE 80,000 BTU single-stage gas furnace. The condenser (R5H5S18AKAAA) is rated 14.3 SEER2 with HSPF2 7.5–7.8 and a single-stage scroll compressor pre-charged for a 15-foot line set. The coil (EAM5X19M17A) includes a factory-installed TXV and the furnace (N96MSN0801716A) features an ECM blower and multi-positional installation.

• Condenser R5H5S18AKAAA: 14.3 SEER2, HSPF2 7.5–7.8, scroll compressor, pre-charged for 15' line set with R454B

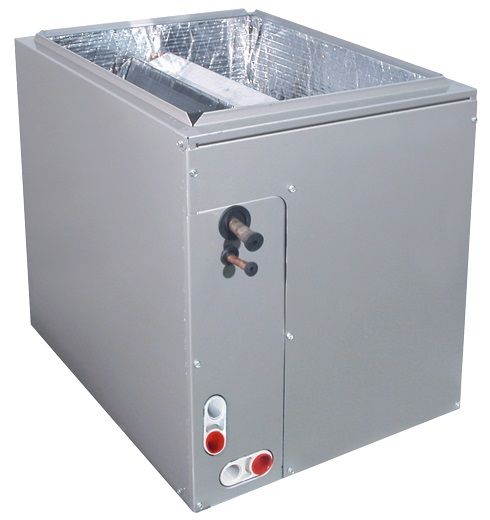

• Evaporator coil EAM5X19M17A: 1.5 ton multi-positional A-coil with factory-installed TXV; liquid line 3/8" / suction line 5/8"
• Furnace N96MSN0801716A: 80,000 BTU input (~76,800 BTU output), 96% AFUE, single-stage burner, ECM blower, upflow/downflow/horizontal; field-convertible to propane (optional LP kit)

Product Highlights

Matched 1.5 ton R454B dual-fuel system for multi-positional installations; condenser pre-charged for 15-foot line set.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5H5S18AKAAA / EAM5X19M17A / N96MSN0801716A

Technical Specifications

• Brand: ACIQ
• Model / MPN: R5H5S18AKAAA / EAM5X19M17A / N96MSN0801716A
• System Tonnage: 1.5 Ton
• System SEER2: 15.2 (system listing)
• Condenser SEER2: 14.3
• Condenser HSPF2: 7.5 - 7.8
• Condenser Refrigerant: R454B (pre-charged for 15' line set)
• Condenser Compressor Type: Scroll (single stage)
• Condenser Cooling Capacity: 18,000 BTU
• Condenser Heating Capacity: 18,000 BTU
• Condenser Weight: 167 lbs
• Condenser Dimensions (H x W x D): 31.7" x 31.2" x 31.2"
• Condenser Electrical: 208/230 V, 1 Phase, 60 Hz
• Condenser Min/Max Outdoor Temp for Heating: -10°F to 66°F
• Condenser Min/Max Outdoor Temp for Cooling: 55°F to 125°F
• Condenser Max Breaker Size: 15 Amps
• Condenser Min Breaker Size: 10.9 Amps
• Condenser Noise Level: 72 dBA
• Coil Tonnage: 1.5 Ton
• Coil Type: A-coil, multi-positional, cased evaporator
• Coil Width: 17.5"
• Coil Weight: 66.5 lbs
• Coil Connection (liquid/suction): 3/8" / 5/8"
• Furnace Input BTU: 80,000 BTU
• Furnace Output BTU: 76,800 BTU (approx.)
• Furnace AFUE: 96%
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Blower: ECM, multi-speed
• Furnace Burner Stages: Single stage
• Furnace Max CFM: 1665
• Furnace Weight: 146 lbs
• Furnace Dimensions (H x W x D): 35" x 17.5" x 29.5"
• Furnace Fuel Type: Natural Gas (field-convertible to Propane with optional kit)
• Furnace Energy Star: Yes
• Furnace AHRI Certificate Number: 213148760
• Maximum System CFM: 1665 (furnace) / 1900 (condenser spec listed)
• Configuration: Upflow, Downflow, Horizontal (multi-positional)
• Requires: Matched R454B-compatible indoor equipment with leak detection; plastic/PVC flue venting per local codes for 90%+ furnaces
