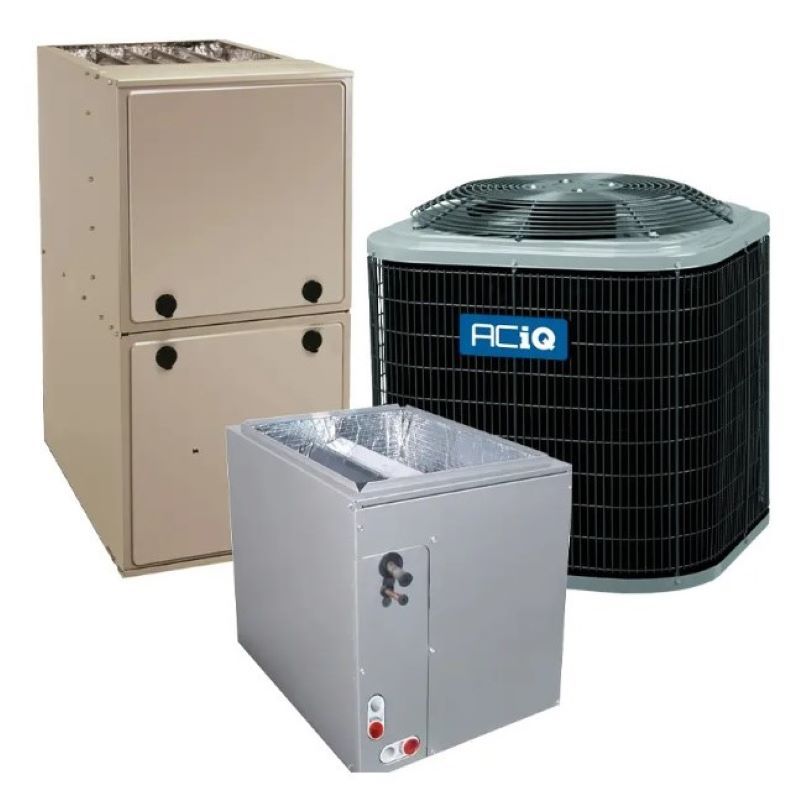

Aciq R5H5S18AKAAA Gas Furnace and Heat Pump System 1.5 Ton (Multi-positional) R92MSN0601714A

Product Description

The Aciq R5H5S18AKAAA / EAM5X19M17A / R92MSN0601714A is a matched residential HVAC system that includes a 1.5 ton R454B heat pump condenser, a multi-positional evaporator coil, and a 60,000 BTU 92% AFUE single-stage gas furnace. The condenser delivers 14.3 SEER2 and HSPF2 ~7.5-7.8 with a scroll compressor and is pre-charged for a 15-foot line set. The coil features a factory TXV; the furnace has a multi-speed ECM blower.

• Condenser: 1.5 ton, 14.3 SEER2, HSPF2 ~7.5-7.8, R454B refrigerant, scroll compressor, pre-charged for 15-foot line set.
• Furnace: 60,000 BTU input (approx. 55,200 BTU output), 92% AFUE, multi-speed ECM blower, direct ignition with silicon nitride hot surface ignitor, requires plastic/PVC flue; field-convertible to propane with optional kit.
• Coil: 1.5 ton multi-positional A-coil, factory-installed TXV, sweat connections, UL listed.

Product Highlights

Matched 1.5 ton R454B condenser, multi-positional A-coil, and 60,000 BTU 92% AFUE furnace for multi-positional installations with factory-installed TXV.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5H5S18AKAAA / EAM5X19M17A / R92MSN0601714A

Technical Specifications

• Brand: ACIQ
• System Model / MPNs: R5H5S18AKAAA / EAM5X19M17A / R92MSN0601714A
• Condenser MPN: R5H5S18AKAAA
• Condenser Refrigerant: R454B
• Condenser Refrigerant Charge: Pre-charged for 15-foot line set
• Condenser Tonnage: 1.5 Ton
• Condenser Cooling Capacity (BTU): 18,000
• Condenser Heating Capacity (BTU): 18,000
• Condenser SEER2: 14.3
• Condenser HSPF2: 7.5 - 7.8
• Condenser Compressor Type: Scroll
• Condenser Stages: Single stage
• Condenser Max CFM: 1900
• Condenser Sound Level (dBA): 72
• Condenser Liquid Valve Size: 3/8"
• Condenser Suction Valve Size: 5/8"
• Condenser Electrical: 208/230V 1 Phase 60 Hz
• Condenser Phase: Single phase
• Condenser Min Breaker Size: 10.9 Amps
• Condenser Max Breaker Size: 15 Amps
• Condenser Min/Max Outdoor Temp for Heating: -10°F to 66°F
• Condenser Min/Max Outdoor Temp for Cooling: 55°F to 125°F
• Condenser Dimensions (HxWxD): 31.7" x 31.2" x 31.2"
• Condenser Weight: 167 lbs
• Coil MPN: EAM5X19M17A
• Coil Type: A-coil, multi-positional
• Coil Tonnage: 1.5 Ton
• Coil Refrigerant: R454B
• Coil Liquid Line: 3/8"
• Coil Suction Line: 5/8"
• Coil Connection: Sweat
• Coil Certification: UL listed
• Coil Features: Factory-installed TXV
• Coil Dimensions (HxWxD): 25 13/16" x 17 1/2" x 20 5/8"
• Coil Weight: 66.5 lbs
• Furnace MPN: R92MSN0601714A
• Furnace Input BTU: 60,000 BTU
• Furnace Output BTU (approx.): 55,200 BTU
• Furnace AFUE: 92%
• Furnace Blower Motor: Multi-speed ECM
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Electrical: 115V 1 Phase 60 Hz
• Furnace Burner Stages: Single
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural gas (field-convertible to propane with optional kit)
• Furnace Exhaust Flue Requirement: Plastic / PVC
• Furnace Dimensions (HxWxD): 35" x 17 1/2" x 29-1/2"
• Furnace Weight: 136 lbs
