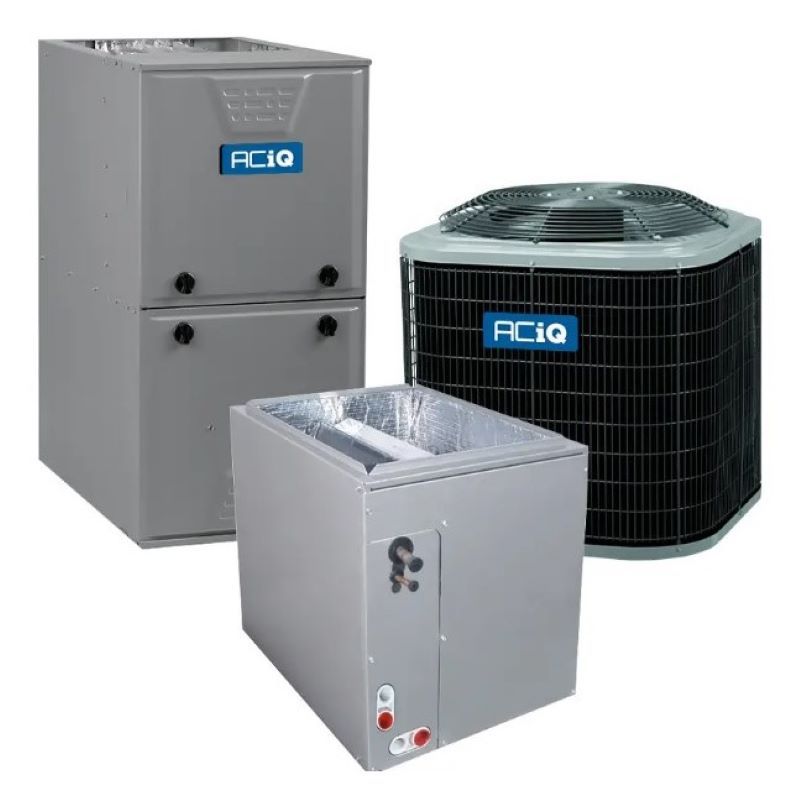

Aciq R5H5S18AKAAA / EAM5X24M17A / N96MSN0601412A 1.5 Ton Heat Pump and 60,000 BTU Gas Furnace Multi-Positional System

Product Description

ACiQ R5H5S18AKAAA / EAM5X24M17A / N96MSN0601412A is a combined HVAC package including a 1.5 ton 14.3 SEER2 heat pump condenser, a 2 ton 17.5-inch multi-positional evaporator coil with factory TXV, and a 60,000 BTU 96% AFUE multi-positional gas furnace. The heat pump is single-stage with a scroll compressor, factory pre-charged with R454B for a 15-foot line set, and the condenser operates on 208/230 V single phase.

• Heat pump: 1.5 ton, 14.3 SEER2, HSPF2 7.5–7.8, 18,000 BTU cooling/heating, scroll single-stage compressor, pre-charged R454B
• Evaporator coil: 2 ton multi-positional A-coil, 17.5" width, sweat connections, factory-installed TXV kit
• Furnace: 60,000 BTU input, 96% AFUE, multi-positional, multi 18-speed constant torque ECM blower, single-stage burner, field-convertible to propane

Product Highlights

Factory pre-charged R454B condenser; multi-positional coil and furnace

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5H5S18AKAAA / EAM5X24M17A / N96MSN0601412A

Technical Specifications

• Brand: ACiQ
• Model / MPN: R5H5S18AKAAA / EAM5X24M17A / N96MSN0601412A
• Package contents: R5H5S18AKAAA heat pump condenser; EAM5X24M17A evaporator cased coil; N96MSN0601412A 60,000 BTU gas furnace
• Heat pump tonnage: 1.5 Ton
• Heat pump SEER2: 14.3
• Heat pump HSPF2: 7.5 - 7.8
• Heat pump refrigerant: R454B (A2L) - pre-charged for 15' line set
• Heat pump compressor type: Scroll, single stage
• Heat pump cooling capacity: 18,000 BTU
• Heat pump heating capacity: 18,000 BTU
• Heat pump maximum CFM: 1900
• Heat pump sound level: 72 dBA
• Heat pump electrical: 208/230 V, 1 Phase, 60 Hz
• Heat pump liquid line size: 3/8"
• Heat pump suction line size: 5/8"
• Condenser heating operating range: -10°F to 66°F
• Condenser ambient temperature range: 55°F to 125°F
• Condenser electrical breaker size: Min 10.9 Amps / Max 15 Amps
• Evaporator coil tonnage: 2 Ton
• Evaporator coil configuration: Multi-positional, A-coil, 17.5" width
• Evaporator coil connection type: Sweat
• Evaporator coil factory TXV: Yes (factory-installed TXV kit)
• Furnace input BTU: 60,000 BTU
• Furnace AFUE: 96%
• Furnace output (approx.): 57,600 BTU
• Furnace configuration: Multi-positional (upflow/downflow/horizontal)
• Furnace width: 14"
• Furnace blower motor: Multi 18-Speed Constant Torque ECM
• Furnace maximum CFM: 1120
• Furnace burner stages: Single
• Furnace fuel type: Natural Gas (field-convertible to Propane with optional LP kit)
• Furnace AHRI certificate number: 213148502
• Condenser SKU: R5H5S18AKAAA
• Coil SKU: EAM5X24M17A
• Furnace SKU: N96MSN0601412A
