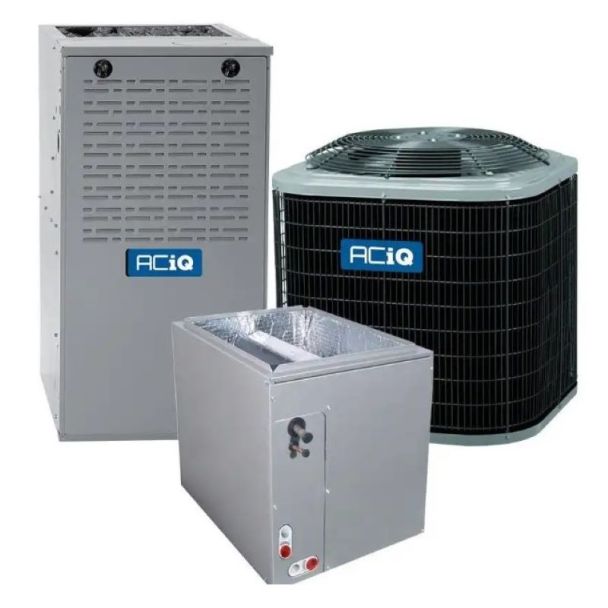

Aciq R5H5S18AKAAA / EAM5X19M17A / N80MSN0901714A Gas furnace and heat pump system 88,000 BTU (1.5 Ton) Replacement N80MSN0901714A

Product Description

Aciq R5H5S18AKAAA / EAM5X19M17A / N80MSN0901714A is a packaged dual-fuel system combining a 1.5 ton R454B heat pump condenser, a 17.5" multi-positional evaporator cased coil with factory TXV, and an 88,000 BTU 80% AFUE multi-positional gas furnace. The condenser is factory pre-charged for a 15 ft line set, provides 14.3 SEER2 cooling and 7.5–7.8 HSPF2 heating, and will heat down to about 35 F.

• Complete system: 1.5 ton R454B heat pump condenser (pre-charged for 15 ft), evaporator coil with factory TXV, and 88,000 BTU 80% AFUE furnace
• Condenser: 14.3 SEER2, 7.5–7.8 HSPF2, scroll compressor, max 1900 CFM, 72 dBA sound level
• Furnace: multi-positional upflow/downflow/horizontal, multi-speed ECM blower, direct ignition with silicon nitride hot surface ignitor, field-convertible to propane

Product Highlights

Dual-fuel 1.5 ton system with factory pre-charged R454B condenser, multi-positional coil and 80% AFUE multi-positional furnace.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5H5S18AKAAA / EAM5X19M17A / N80MSN0901714A

Technical Specifications

• Brand: Aciq
• Model / MPN: R5H5S18AKAAA / EAM5X19M17A / N80MSN0901714A
• Package type: Heat pump condenser + evaporator coil + gas furnace (system)
• Tonnage: 1.5 Ton
• System SEER2: 15.2 SEER2
• Condenser SEER2: 14.3 SEER2
• Condenser HSPF2: 7.5 - 7.8 HSPF2
• Refrigerant: R454B (A2L)
• Pre-charged line set length: 15 ft (factory pre-charged)
• Condenser cooling capacity: 18,000 BTU
• Condenser heating capacity: 18,000 BTU
• Condenser compressor type: Scroll, single-stage
• Condenser max CFM: 1900
• Condenser sound level: 72 dBA
• Coil: 1.5 Ton 17.5" multi-positional evaporator cased coil; factory-installed TXV
• Coil configuration: Multi-positional, 17.5" width, A-coil, sweat connection
• Furnace AFUE: 80%
• Furnace input BTU: 88,000
• Furnace output BTU: 70,400
• Furnace configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace blower motor: Multi-speed ECM
• Furnace ignition: Direct ignition with silicon nitride hot surface ignitor
• Furnace electrical: 115V 1 Phase 60 Hz
• Condenser electrical: 208/230-200/230V 1 Phase 60 Hz
• Furnace max CFM: 1210
• Dimensions (Condenser H x W x D): 31.7" x 31.2" x 31.2"
• Dimensions (Furnace H x W x D): 33 1/3" x 17 1/2" x 29"
• Dimensions (Coil H x W x D): 25 13/16" x 17 1/2" x 20 5/8"
• Weight (Heat pump): 167 lbs
• Weight (Coil): 66.5 lbs
• Weight (Furnace): 131 lbs
• Exhaust flue requirement: Metal (for 80% AFUE furnace)
• Field conversion: Furnace field-convertible to propane with optional LP kit
• AHRI certificate number (furnace): 213146139
• Notes on use: Condenser will only heat down to around 35 F; backup heat required for lower ambient temperatures
