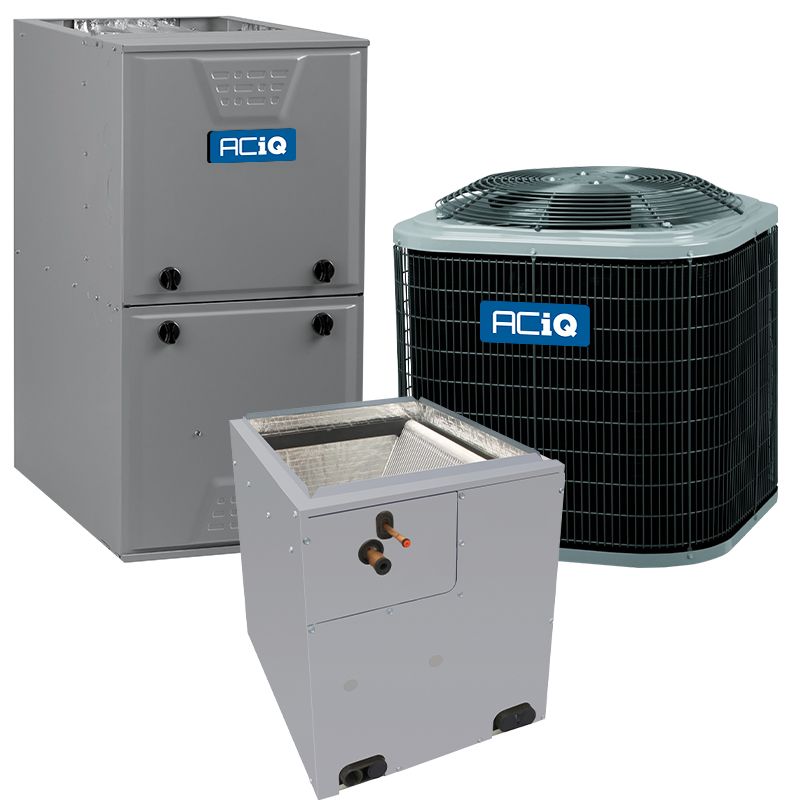

Aciq R5A5S60AKAWA / EVD5X61M24A / G96VTN1202422 5 Ton 13.8 SEER2 96% AFUE 120,000 BTU Gas Furnace and Air Conditioner System (Upflow/Downflow) R5A5S60AKAWA / EVD5X61M24A / G96VTN1202422

Product Description

Aciq R5A5S60AKAWA / EVD5X61M24A / G96VTN1202422 is a matched 5 ton HVAC system including a 60,000 BTU 13.8 SEER2 condenser, a 120,000 BTU 96% AFUE two-stage gas furnace with variable speed blower, and a fully insulated vertical cased evaporator coil with factory-installed TXV. The condenser is pre-charged with R454B for a 15 foot line set and the furnace supports upflow, downflow, and horizontal installation. Components require professional installation.

• Condenser: 60,000 BTU, 13.8 SEER2, scroll compressor, pre-charged with R454B (A2L) for 15 foot line set
• Furnace: 120,000 BTU input, 96% AFUE, two-stage burner, variable speed blower, multi-positional (upflow, downflow, horizontal)
• Evaporator coil: 5 ton cased V-coil, fully insulated, factory-installed TXV, sweat connections, corrosion-resistant drain pan

Product Highlights

Matched 5 ton system with 13.8 SEER2 condenser, 96% AFUE two-stage furnace, factory TXV cased coil; uses R454B refrigerant (A2L) and must be paired with compatible equipment and leak-detection per local code and refrigerant handling requirements.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A5S60AKAWA / EVD5X61M24A / G96VTN1202422

Technical Specifications

• Brand: Aciq
• Manufacturer Part Number: R5A5S60AKAWA / EVD5X61M24A / G96VTN1202422
• Package Model (Components): R5A5S60AKAWA (condenser) / EVD5X61M24A (coil) / G96VTN1202422 (furnace)
• System Tonnage: 5 Ton
• Condenser Cooling Capacity: 60,000 BTU
• Condenser SEER2: 13.8
• Condenser Refrigerant: R454B (A2L) - pre-charged for 15' line set
• Condenser Compressor Type: Scroll
• Condenser Electrical: 208/230 V, 1 Phase, 60 Hz
• Condenser Maximum CFM: 3900
• Condenser Sound Level: 75 dBA
• Condenser Motor RPM: 1100
• Condenser Min Breaker Size: 31.1 Amps
• Condenser Max Breaker Size: 50 Amps
• Condenser Dimensions (H x W x D): 38 7/16" x 31 3/16" x 31 3/16"
• Condenser Weight: 215 lbs
• Furnace SKU: G96VTN1202422
• Furnace Heating BTU: 120,000
• Furnace AFUE: 96%
• Furnace Blower Motor: Variable Speed
• Furnace Maximum CFM: 2190
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Electrical: 120 V, 1 Phase, 60 Hz
• Furnace Burner Stages: Two
• Furnace Fuel Type: Natural Gas (field-convertible to propane with optional LP kit)
• Furnace Dimensions (H x W x D): 35" x 24.5" x 29.5"
• Furnace Weight: 190 lbs
• Furnace Exhaust Flue Requirement: Plastic / PVC
• Furnace AHRI Certificate Number: 213148568
• Coil SKU: EVD5X61M24A
• Coil Tonnage: 5 Ton
• Coil Configuration: Upflow / Downflow
• Coil Style: V-Coil, fully insulated, cased
• Coil Factory Feature: Factory-installed TXV kit
• Coil Refrigerant: R454B
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 7/8"
• Coil Connection: Sweat
• Coil Dimensions (H x W x D): 35" x 24.5" x 20 5/8"
• Coil Weight: 60 lbs
• Coil Certification: UL Listed
• Coil Drain Pan: Corrosion-resistant PBT
